992249 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, EFI (SN: 041000 & Above) Clutch And Belt, Drive - Idler Parts Diagram

Pro-Turn 72" Zero-Turn Mower, EFI

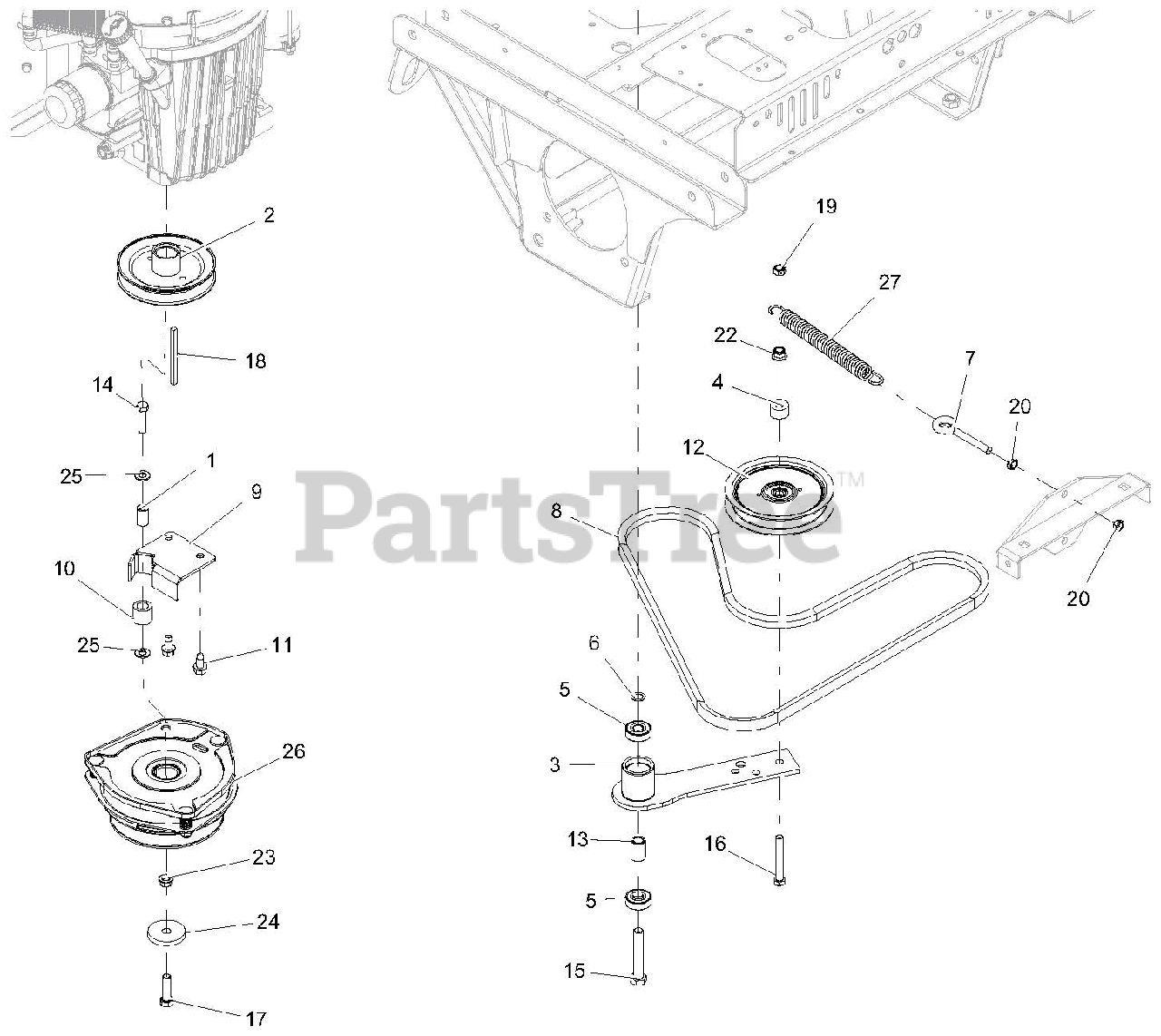

Clutch And Belt, Drive - Idler Parts Diagram

  • Title

1

Gravely 08833400

BUSH.,S.391X.622X.95 ST REV A

$5.99

$

In Stock, only 1 left!

0

2

Gravely 07340967

SHEAVE, ENGINE 1.127 ID X 5.250 OD-BLACK
(Superseded to 07340900)

$83.99

$

In Stock, only 1 left!

0

3

Gravely 09357351

WLDMT, HYDRO DRIVE IDLER ARM-BLACK
(Superseded to 09357300)

$52.99

$

Usually ships in 4-12 days

0

4

Gravely 03035100

SPACER .390X1.000X.562

$9.49

$

In Stock, only 1 left!

0

5

Gravely 05408000

BRG-BALL .500X1.375X.44

$5.99

$

In Stock, Qty 18

0

6

Gravely 06400015

WASHER-FLAT-STL, .500 X .750 X .020

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07030000

BOLT, EYE .375-16

$7.99

$

Usually ships in 4-12 days

0

8

Gravely 07200515

BELT, B RAW COGGED

$58.99

$

In Stock, Qty 20+

0

9

Gravely 04788851

WLDMT, CLUTCH STOP

Note: (BLACK)

$34.99

$

Usually ships in 4-12 days

0

10

Gravely 07500007

BUMPER, RUBBER .62 X 1.0 X .88 LG

$5.99

$

In Stock, only 2 left!

0

11

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 07334500

IDLER, FLAT - 5.00" X .75"

$80.99

$

In Stock, Qty 13

0

13

Gravely 09357700

SPACER, .510 X .750 X 1.148

$4.99

$

In Stock, only 4 left!

0

14

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

15

Gravely 05959900

BLT-HEX .50-13X3.00 GR5 YWZC
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0

16

Gravely 05961400

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

17

Gravely 05900039

BLT-HEX .44-20X1.50 GR8 YWZC
(Superseded to 05902004)

$5.99

$

In Stock, Qty 5

0

18

Gravely 06600003

KEY-SQ .250X.250X3.50

$4.99

$

In Stock, Qty 7

0

19

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06535900

NUT, JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06542000

NUT, LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$6.99

$

In Stock, only 3 left!

0

25

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 00447100

CLUTCH-OGURA

$685.99

$

In Stock, only 1 left!

0

27

Gravely 08300626

SPRG, EXTENSION .120X.845X6.55 WLD
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0
