992245 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Kawasaki FX (SN: 030000 - 039999) Frame Cont Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kawasaki FX

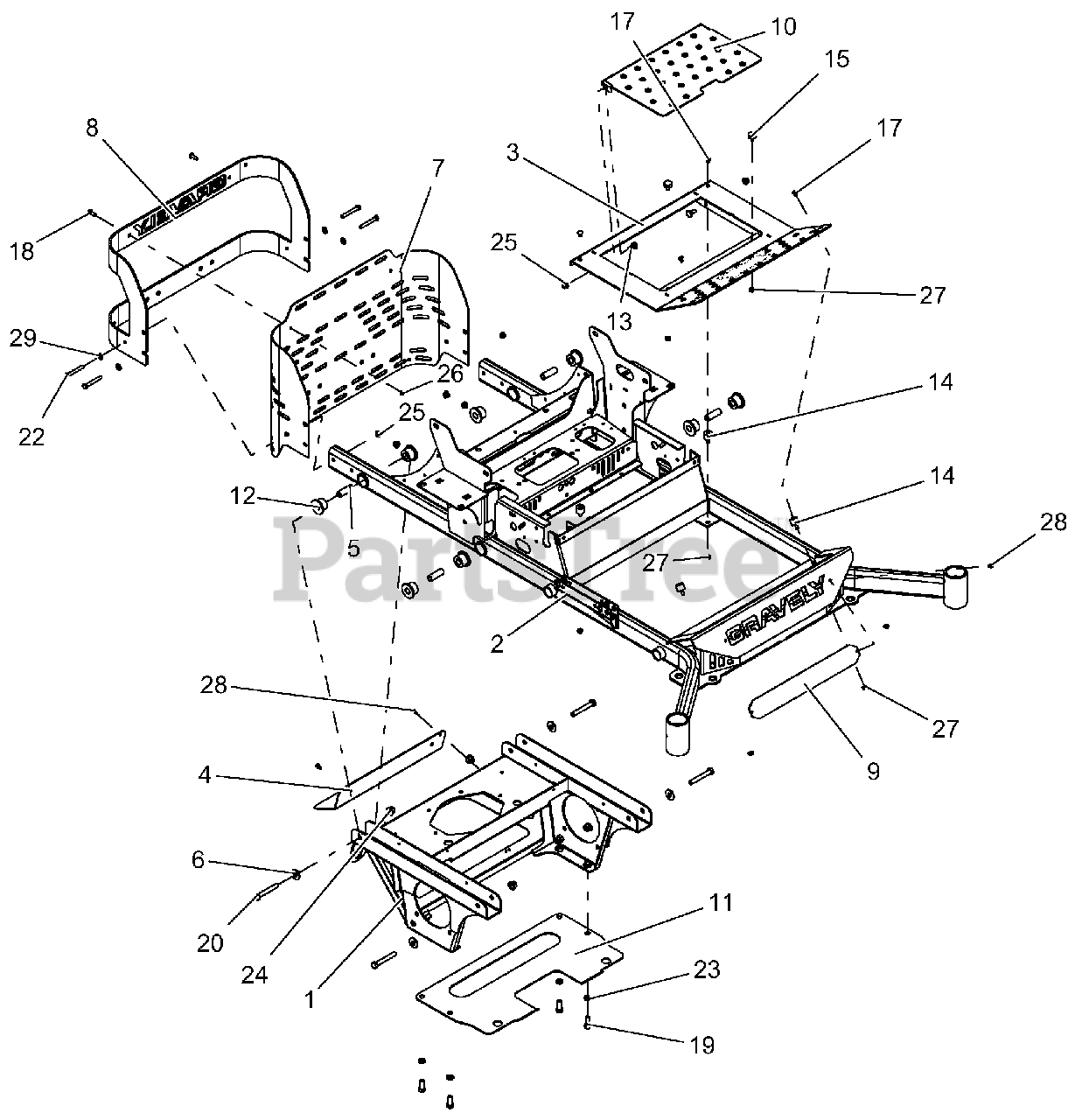

Frame Cont Parts Diagram

  • Title

1

Gravely 03855553

WLDT, 200 PT AXLE/ENGINE FRAME

$607.99

$

Usually ships in 4-12 days

0

2

Gravely 59217900

72" PT200/400 MAIN FRAME WITH SAFTEY DECALS

$1680.99

$

Usually ships in 4-12 days

0

3

Gravely 59220100

FOOTPLATE WLDMT W/SAFETY DECAL

$170.99

$

Usually ships in 4-12 days

0

4

Gravely 03948151

SHIELD, MUFFLER HEAT-BLACK

$72.99

$

In Stock, only 1 left!

0

5

Gravely 03985600

SPCR, .50 X .75 X 2.23 YZ

$9.49

$

Usually ships in 4-12 days

0

6

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

7

Gravely 04386351

GUARD, REAR BUMPER FINGER-BLACK

$163.99

$

Usually ships in 4-12 days

0

8

Gravely 59220200

REAR BUMPER W/SAFETY DECALS-GAS

$

$

Not available

9

Gravely 04386551

PLATE, BUMPER LOGO BACKING-BLACK

$

$

Not available

10

Gravely 59220000

INSPECTION PANEL W/SAFETY DECAL

$

$

Not available

11

Gravely 04524553

PLATE-TRANSMISSION SKID-RED

$74.99

$

Usually ships in 4-12 days

0

12

Gravely 05500924

BSHG, FLG .75 X 1.51 X 2.00 X .18

$11.99

$

Usually ships in 4-12 days

0

13

Gravely 07000034

BLT, SHLDR EP .38-16X.30 HEX YZ

$3.99

$

In Stock, only 1 left!

0

14

Gravely 07500214

BUMPER, STUD MOUNTED W/FEMALE INSERT

$20.99

$

Usually ships in 4-12 days

0

15

Gravely 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 1 left!

0

17

Gravely 06222000

BLT-RDHDSQNK .31-18X.50 G5 YWZC
(Superseded to 06200406)

$2.99

$

In Stock, Qty 20+

0

18

Gravely 06200007

BLT-RDHDSQSHNK .31-18X1.00 G5YWZC
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

19

Gravely 05958900

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

20

Gravely 05965800

BLT-HEX .50-13X3.50 GR5 YWZC
(Superseded to 05901937)

$4.99

$

In Stock, only 1 left!

0

22

Gravely 05961400

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

23

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

24

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0
