992243 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Propane (SN: 040000 & Above) Stabilizer Arms And Baffles - 72 Inch Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Propane

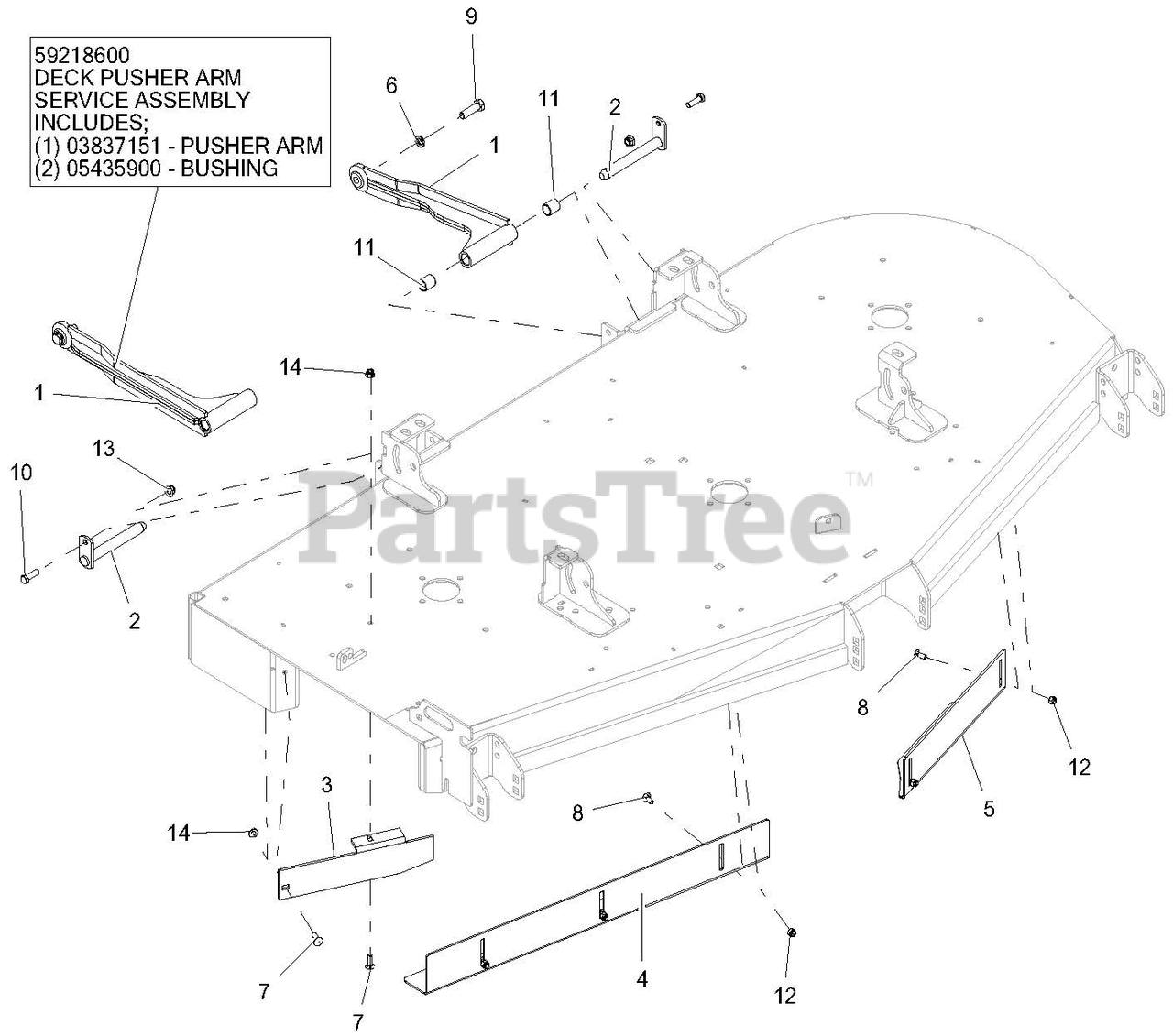

Stabilizer Arms And Baffles - 72 Inch Parts Diagram

  • Title

1

Gravely 03837151

WMT, DECK STABILIZER ARM-BLACK
(Superseded to 05253251)

$148.99

$

Usually ships in 4-12 days

0

1

Gravely 59218600

DECK PUSHER ARM SERVICE ASSEMBLY

Note: SERVICE ASSEMBLY

$136.99

$

Usually ships in 4-12 days

0

1

Gravely 03837151

PUSHER ARM
(Superseded to 05253251)

Note: SERVICE PART

$148.99

$

Usually ships in 4-12 days

0

1

Gravely 05435900

BUSHING

Note: SERVICE PART

$5.99

$

In Stock, Qty 5

0

2

Gravely 09238900

WLDMT, MOWER MTG. PIN

$61.99

$

In Stock, only 1 left!

0

3

Gravely 00442453

BAFFLE, 72" DISCHARGE-RED

$55.99

$

Usually ships in 4-12 days

0

4

Gravely 00955851

BAFFLE, 72" RH VACUUM-BLACK

$

$

Not available

5

Gravely 00955951

BAFFLE, 72" LH VACUUM-BLACK

$

$

Not available

6

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

7

Gravely 06216100

BLT-RDHDSQSHNK .31-18X1.00 G5 Y
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5 YWZC
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 05901436

BLT-HEX .50-13X1.75 GR5 YWZC EP80
(Superseded to 05901922)

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 05435900

BRG, .750 X .875 X 1.000

$5.99

$

In Stock, Qty 5

0

12

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0
