992243 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Propane (SN: 040000 & Above) LP Tank Brackets - Right Hand Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Propane

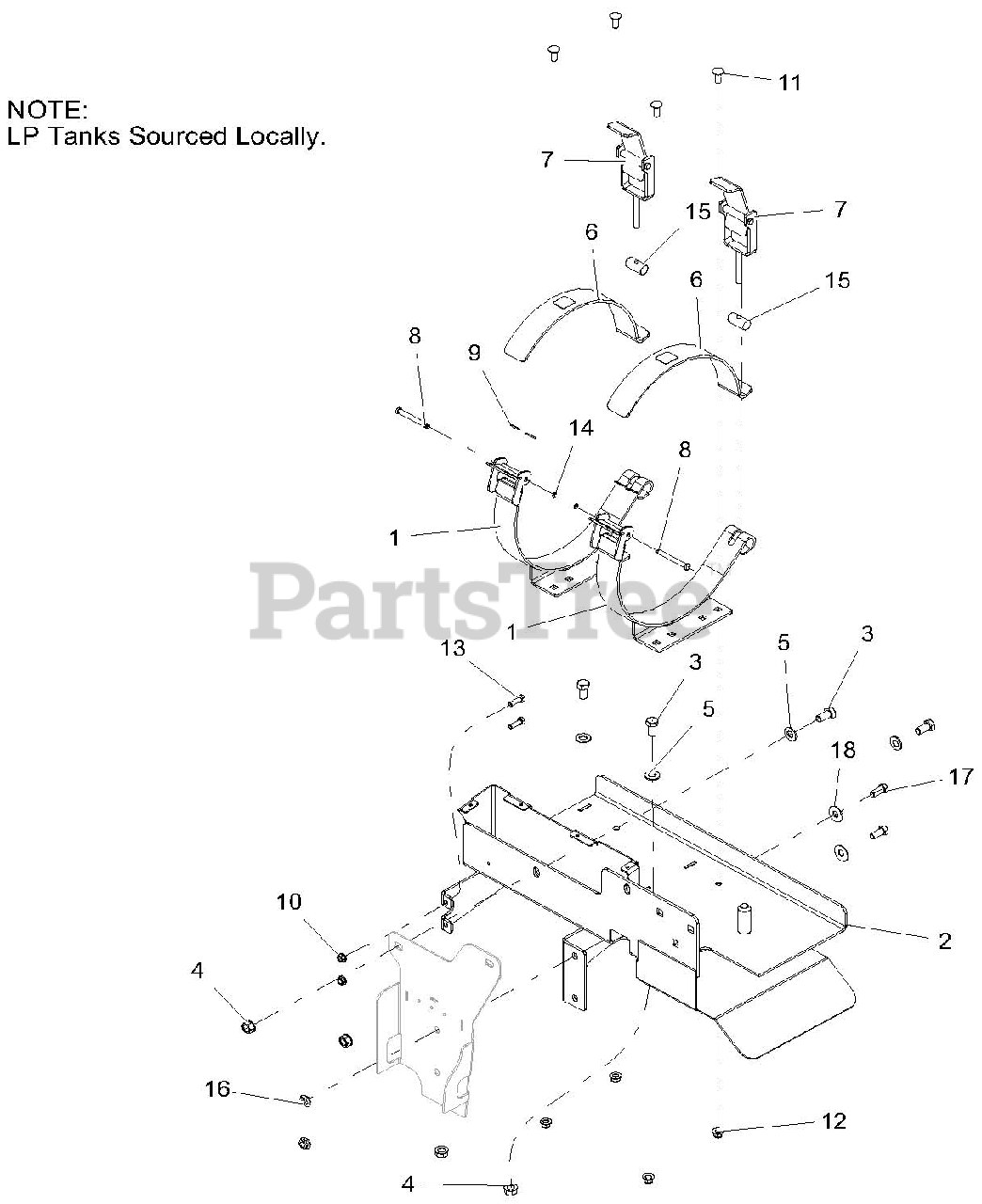

LP Tank Brackets - Right Hand Parts Diagram

  • Title

1

Gravely 00978751

WLDMT, CLAMP LP TANK

$

$

Not available

2

Gravely 59222600

WLDMT, TANK -LH LP

$

$

Not available

3

Gravely 05947100

BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

4

Gravely 06543600

NUT, LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 59222700

LP TANK CLAMP W/SAFETY DECAL

$

$

Not available

7

Gravely 00979000

ASM, LP TANK HANDLE CLAMP

$155.99

$

In Stock, Qty 8

0

8

Gravely 04546800

PIN, LP CLAMP

$10.99

$

Usually ships in 4-12 days

0

9

Gravely 04556100

MAGNET, .75X.060, LP CLAMP

$

$

Not available

10

Gravely 06543100

NUT, LK-TOP-FLG .312-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5 YWZC
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

12

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 05706300

RG-RTNG-EXT .312X.025

$0.99

$

Usually ships in 4-12 days

0

15

Gravely 04525500

PIVOT, LP CLAMP HANDLE

$45.99

$

In Stock, Qty 8

0

16

Gravely 06500009

NUT-LK-NYL-FLG .44-14 YWZC
(Superseded to 06500811)

$5.99

$

In Stock, only 1 left!

0

17

Gravely 05958700

BLT-HEX .44-14X1.00 GR5 YWZC
(Superseded to 05901913)

$2.99

$

In Stock, only 1 left!

0

18

Gravely 06441000

WSHR-FL-STL..50X1.25X.083 YWZ
(Superseded to 06401202)

$2.99

$

In Stock, Qty 6

0
