992243 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Propane (SN: 040000 & Above) Deck Lift - Right Hand Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Propane

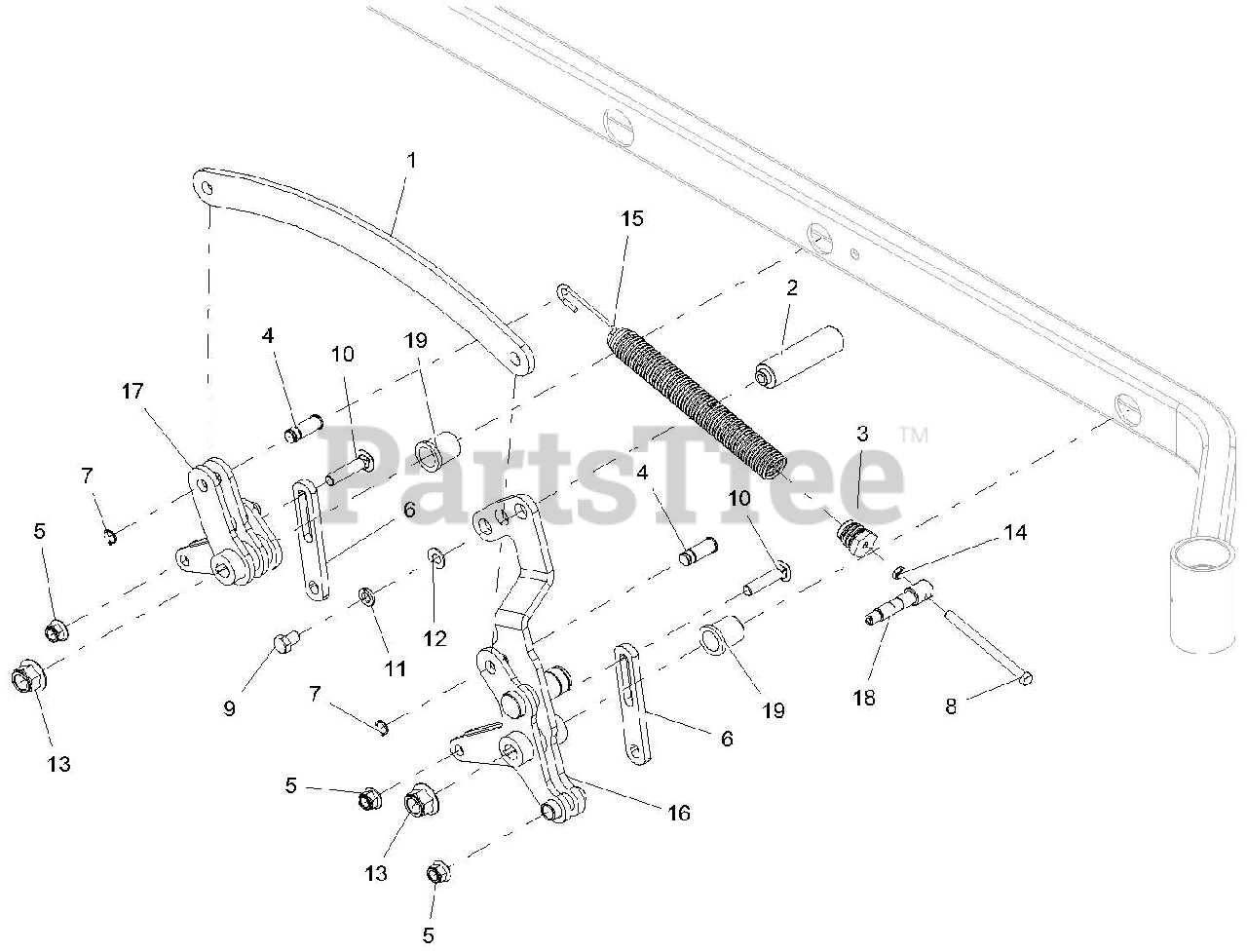

Deck Lift - Right Hand Parts Diagram

  • Title

1

Gravely 04373451

LIFT, LINK - BLACK

$56.99

$

Usually ships in 4-12 days

0

2

Gravely 04373300

PEDAL, LIFT

$

$

Not available

3

Gravely 04374200

PLUG, SPRG

$77.99

$

Usually ships in 4-12 days

0

4

Gravely 04414200

PIN, CLEVIS .625 SNAP RING

$

$

Not available

5

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 04732400

LINK, DECK LIFT - LONG

$17.99

$

Usually ships in 4-12 days

0

7

Gravely 05709200

RG-RTNG-EXT .625x.050

$2.49

$

Usually ships in 4-12 days

0

8

Gravely 05901506

BLT-HEX .38-16X5.00 GR5 YWZC
(Superseded to 05901923)

$

$

Not available

9

Gravely 05971800

BLT-HEX .50-13X.75 GR5 YWZC

$2.49

$

In Stock, only 1 left!

0

10

Gravely 06200119

BLT-RDHDSQNK .50-13X2.25 G5 Y
(Superseded to 06200423)

$3.99

$

In Stock, Qty 7

0

11

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 17

0

12

Gravely 06439200

WSHR-FL-STL .505X1.00X.062 YWZC
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06500717

NUT-LK-NYL-FLG .75-10 YWZC
(Superseded to 06500931)

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 06535900

NUT, JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 08300624

SPRG, DECK LIFT

$13.99

$

In Stock, only 1 left!

0

16

Gravely 04693967

WLDMT, PT400 FRONT RH DECK LIFT ARM-BLACK

$219.99

$

Usually ships in 4-12 days

0

17

Gravely 04694067

WLDMT, PT400 REAR RH DECK LIFT ARM-BLACK

$123.99

$

Usually ships in 4-12 days

0

18

Gravely 04373200

TRUNION, SPRG

$124.99

$

Usually ships in 4-12 days

0

19

Gravely 05500934

BSHG-FLG 1.00X1.25X1.5X1.5

$6.99

$

In Stock, Qty 20+

0
