992243 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Propane (SN: 040000 & Above) Control Panel Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Propane

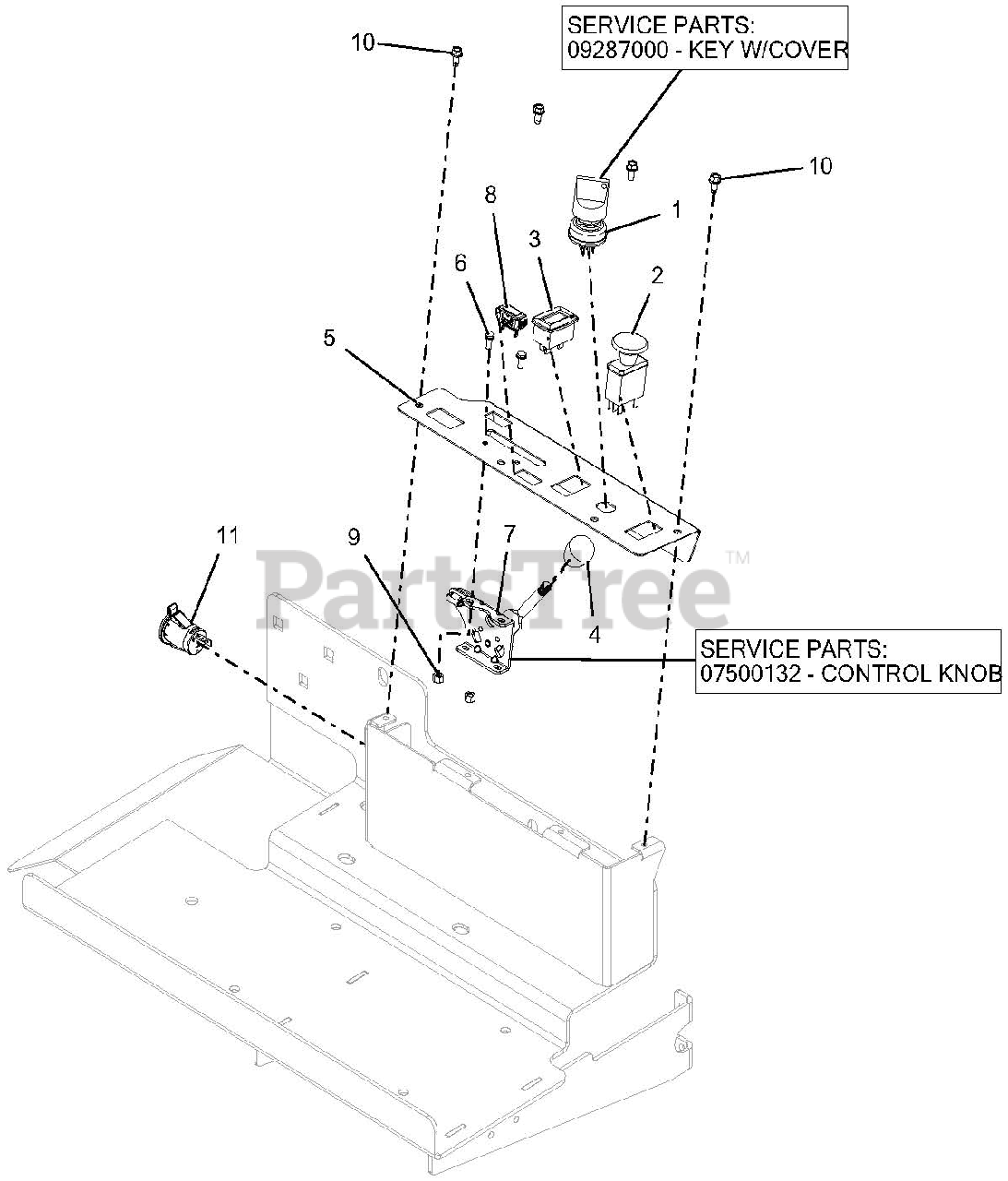

Control Panel Parts Diagram

  • Title

1

Gravely 04331600

SWITCH, IGNITION

$45.99

$

In Stock, Qty 20+

0

1

Gravely 09287000

KEY W/ COVER

Note: SERVICE PART

$14.99

$

In Stock, Qty 20+

0

2

Gravely 01545600

SWITCH, CLUTCH

$25.99

$

In Stock, Qty 20+

0

3

Gravely 03966800

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

4

Gravely 07500132

KNOB, CONTROL BLACK .38-16X.50

$11.99

$

In Stock, Qty 8

0

5

Gravely 04521651

PANEL, CONTROL PT400 - LP

$

$

Not available

6

Gravely 06116700

SCR-MCH 10-24X.5 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06900417

CABLE, PRO-CONTROL THROTTLE

$63.99

$

In Stock, Qty 5

0

7

Gravely 07500132

CONTROL KNOB

Note: SERVICE PART

$11.99

$

In Stock, Qty 8

0

8

Gravely 08841200

LIGHT, INDICATOR
(Superseded to 05128700)

$6.99

$

In Stock, only 1 left!

0

9

Gravely 06536000

NUT-LK-NYL #10-24 YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 04782900

PORT, 12 VOLT POWER

$11.99

$

Usually ships in 4-12 days

0
