992243 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Propane (SN: 040000 & Above) Casters And Tires Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Propane

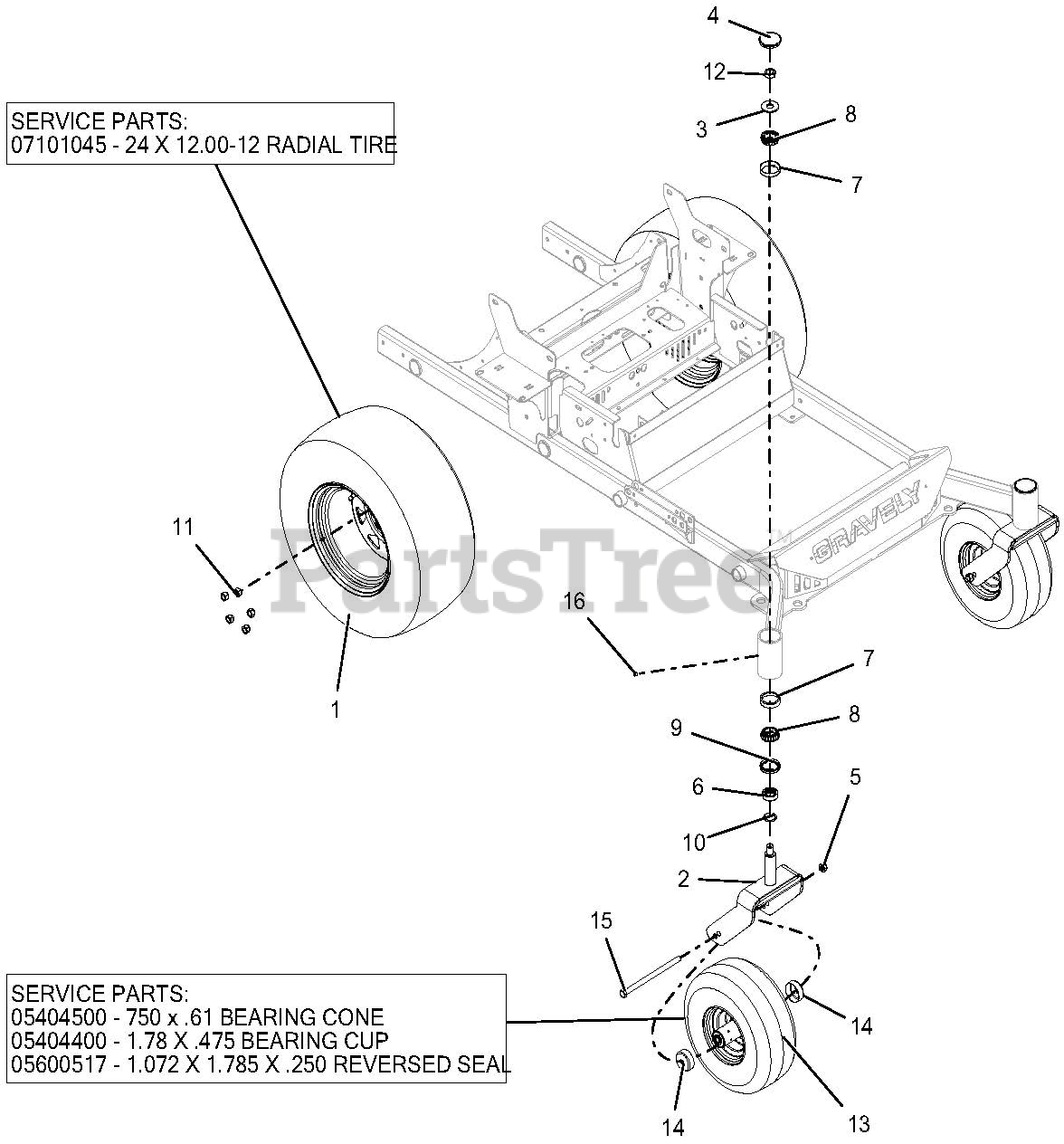

Casters And Tires Parts Diagram

  • Title
1

Gravely 07101044

TIRE/WHEEL, ASM 24 X 12-12 RADIAL

$330.99

$

Usually ships in 4-12 days

0

1

Gravely 07101045

24 X 12.00-12 RADIAL TIRE

$319.99

$

Usually ships in 4-12 days

0

2

Gravely 03924453

WMT, CASTER FORK - RED

$180.99

$

In Stock, only 2 left!

0

3

Gravely 06439800

WSHR-FL-STL.812X2.00X.148YWZC
(Superseded to 06401201)

$3.99

$

In Stock, only 3 left!

0

4

Gravely 03925900

CAP, DUST

$11.99

$

In Stock, only 2 left!

0

5

Gravely 06543600

NUT, LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 04718600

SPCR, FRONT CASTER FORK
(Superseded to 04861500)

$14.99

$

In Stock, Qty 6

0

7

Gravely 05404600

BRG, CUP 2.328 X .465

$13.99

$

In Stock, only 2 left!

0

8

Gravely 05404700

BRG, CONE 1.250 X .660

$20.99

$

In Stock, Qty 20+

0

9

Gravely 05600432

SEAL, OIL 1.75 X 2.332 X .312

$11.99

$

In Stock, Qty 13

0

10

Gravely 05600515

O-RING, .139 W X 1.234 ID

$2.49

$

In Stock, Qty 8

0

11

Gravely 06517600

NUT, LUG .500-13
(Superseded to 06500926)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06500721

@NUT-LK-TOP-JAM .75-16 YWZC
(Superseded to 06500933)

$3.99

$

In Stock, only 1 left!

0

13

Gravely 07101024

TIRE/WHEEL, 15 X 6.00-6 SEMI-PNEU
(Superseded to 07101307)

$182.99

$

In Stock, only 1 left!

0

13

Gravely 05501238

SPANNER, .505 ID X .750 OD X 7.38 LG

Note: NOT SHOWN

$51.99

$

Usually ships in 4-12 days

0

13

Gravely 05501239

SPACER, 1.125 ID X .750 LG

Note: NOT SHOWN

$13.99

$

In Stock, only 2 left!

0

13

Gravely 05404500

750 X .61 BEARING CONE

$23.99

$

In Stock, Qty 9

0

13

Gravely 05404400

1.78 X .475 BEARING CUP

$10.99

$

In Stock, Qty 20+

0

13

Gravely 05600517

1.072 X 1.785 X .250 REVERSED SEAL

$28.99

$

In Stock, only 3 left!

0

14

Gravely 09357800

SHIELD, WHEEL BEARING

$9.49

$

In Stock, Qty 20+

0

15

Gravely 05961200

BLT-HEX .50-13X9.00 GR5 YWZC
(Superseded to 05901930)

$10.99

$

In Stock, Qty 20+

0

16

Gravely 07001727

FITTING, .250-28 FLUSH MOUNT GREASE

$3.99

$

In Stock, only 1 left!

0
