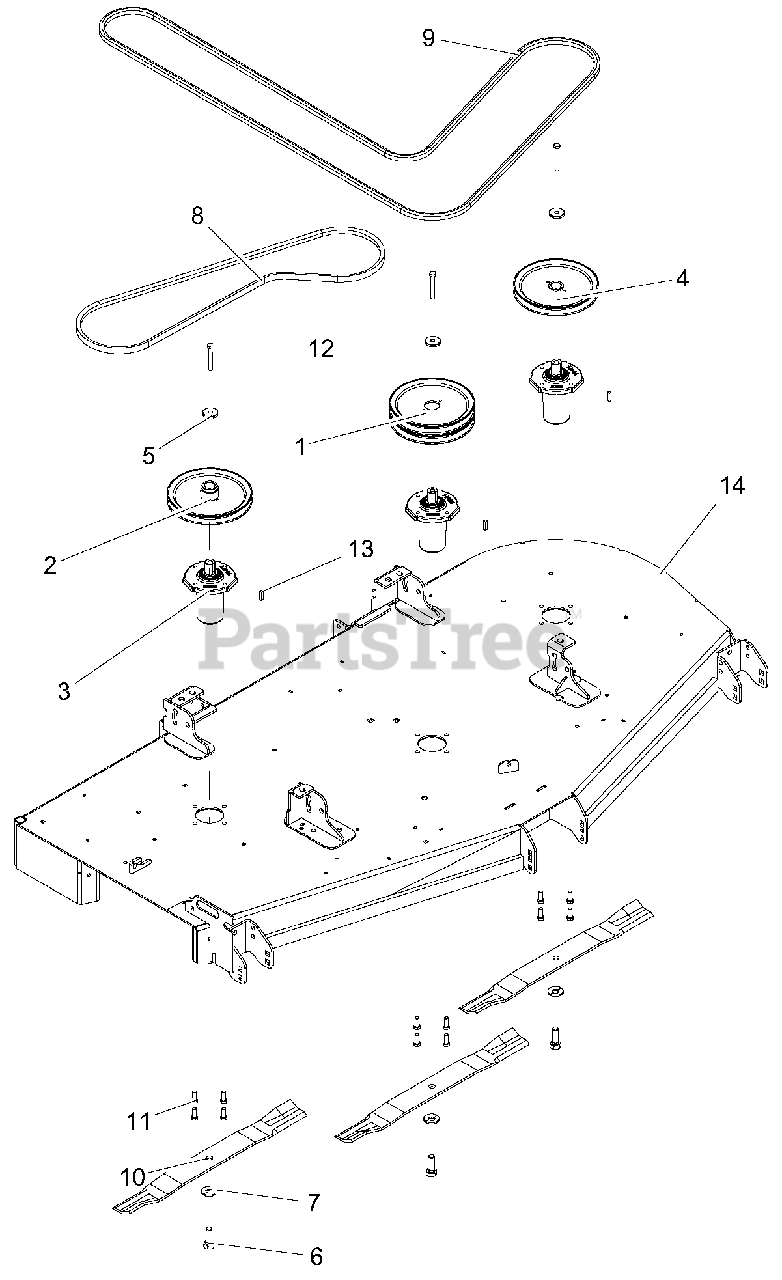

992243 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Propane (SN: 030000 - 039999) Decks, Belts, Blades, And Spindles - 72 Inch Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Propane

Decks, Belts, Blades, And Spindles - 72 Inch Parts Diagram

  • Title

1

Gravely 07337667

SHEAVE-DOUBLE 1.00"ID X 8.25"OD-BLACK
(Superseded to 07337600)

$129.99

$

In Stock, Qty 6

0

2

Gravely 07340867

SHEAVE, SINGLE 1.00" ID X 8.25" OD-BLACK
(Superseded to 07340800)

$68.99

$

Usually ships in 4-12 days

0

3

Gravely 59215400

SERVICE, ASM SPINDLE- DUCTILE
(Superseded to 59225700)

Note: 59215400 Assembly includes item: 3, 5, 6, 7, 10 and 12.

$239.99

$

In Stock, Qty 20+

0

4

Gravely 07337767

SHEAVE-SINGLE 1.00" X 8.25" OD-BLACK
(Superseded to 07337700)

$91.99

$

Usually ships in 4-12 days

0

5

Gravely 04530500

RETAINER, SHEAVE SPINDLE

$7.99

$

In Stock, Qty 20+

0

6

Gravely 05978900

BLT, HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

7

Gravely 06445700

WSHR, BLVL .63X1.625X.14

$4.99

$

In Stock, Qty 9

0

8

Gravely 07200039

V-BELT, B-COGGED

$75.99

$

In Stock, Qty 10

0

9

Gravely 07200616

HEX BELT, BB-WRAPED

$159.99

$

In Stock, only 1 left!

0

10

Gravely 09290500

BLADE, MOWER 72" (24.5" LG)

Note: (24.5" LG)

$37.99

$

In Stock, Qty 20+

0

11

Gravely 05900013

BLT-HEX .38-16X1.00 GR5 YWZC EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06611200

KEY-SQ .250X.250X1.00 RC 40-50

$2.99

$

In Stock, Qty 16

0

14

Gravely 59218200

72" SIDE DISCH DECK W/ DECALS

$1758.99

$

Usually ships in 4-12 days

0
