992243 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Propane (SN: 020000 - 029999) Tire Assembly Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Propane

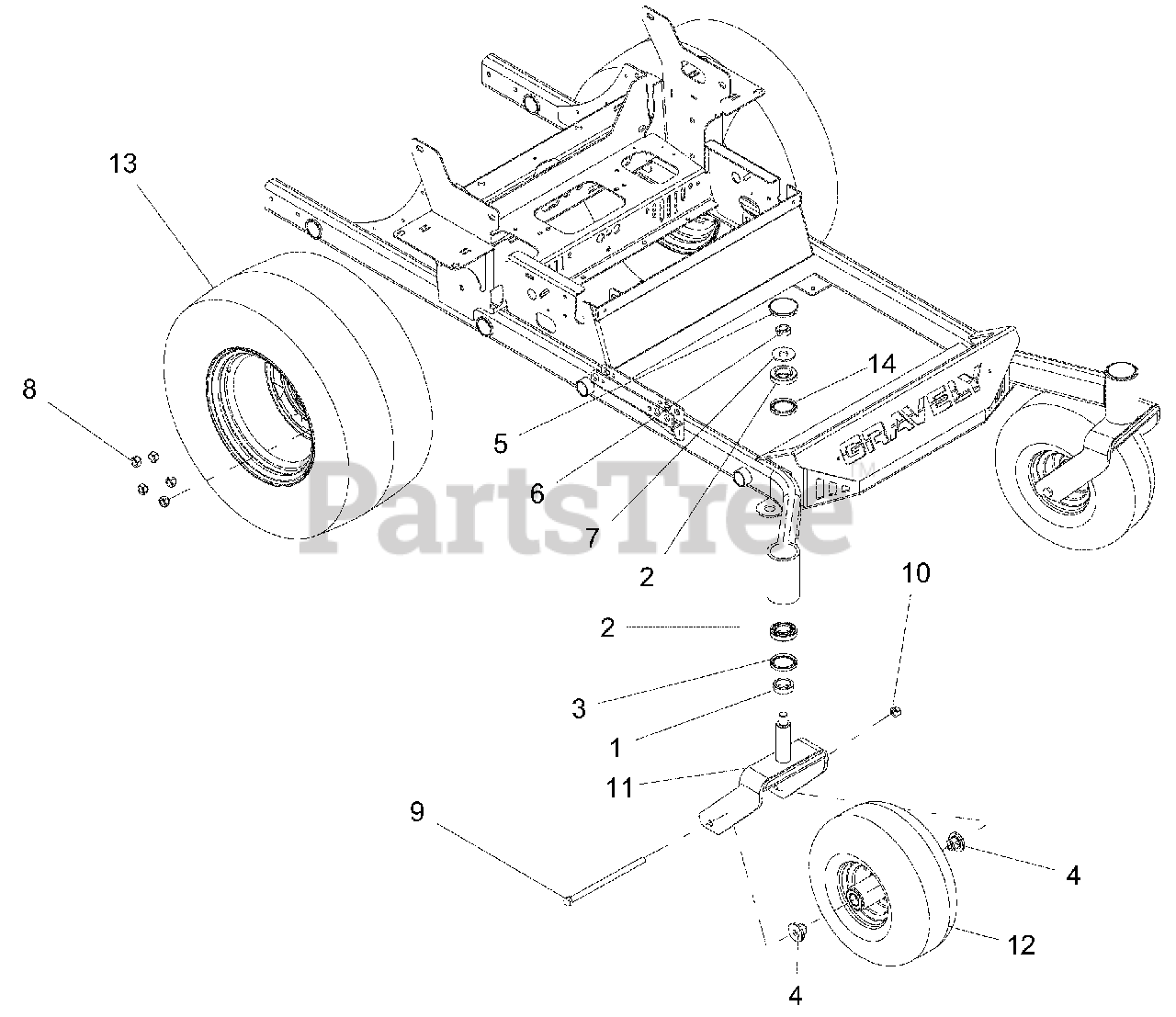

Tire Assembly Parts Diagram

  • Title

1

Gravely 03760300

SPACER-1.258 ID X 1.750 OD X .550

$32.99

$

Usually ships in 4-12 days

0

2

Gravely 05404600

ROLLER BEARING

$13.99

$

In Stock, only 2 left!

0

3

Gravely 05600432

SEAL, OIL 1.75 X 2.332 X .312

$11.99

$

In Stock, Qty 13

0

4

Gravely 00675300

SPACER, FRONT WHEEL

$7.99

$

In Stock, Qty 20+

0

5

Gravely 03925900

CAP, DUST

$11.99

$

In Stock, only 2 left!

0

6

Gravely 06536900

NUT-LK-CTR-JAM .75-16 YWZC

$5.99

$

In Stock, only 3 left!

0

7

Gravely 06439800

WSHR-FL-STL.812X2.00X.148YWZC
(Superseded to 06401201)

$3.99

$

In Stock, only 3 left!

0

8

Gravely 06517600

NUT, 1/2-20 LUG C
(Superseded to 06500926)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05961200

BLT-HEX .50-13X9.00 GR5 YWZC
(Superseded to 05901930)

$10.99

$

In Stock, Qty 20+

0

10

Gravely 06543600

NUT, LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 03924453

WMT, CASTER FORK

$180.99

$

In Stock, only 2 left!

0

12

Gravely 07100930

TIRE/WHEEL 15 X 6-6 SEMI PNEU
(Superseded to 59219100)

$232.99

$

In Stock, only 1 left!

0

13

Gravely 07100207

TIRE/WHEEL ASSY, 24X11.50-12
(Superseded to 07101040)

$273.99

$

Usually ships in 4-12 days

0

Gravely 07100208

TIRE, 24X11.50-12
(Superseded to 07101041)

$227.99

$

Usually ships in 4-12 days

0

14

Gravely 05404700

BEARING CONE 1.25 X .66

$20.99

$

In Stock, Qty 20+

0
