992243 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Propane (SN: 020000 - 029999) Engine Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Propane

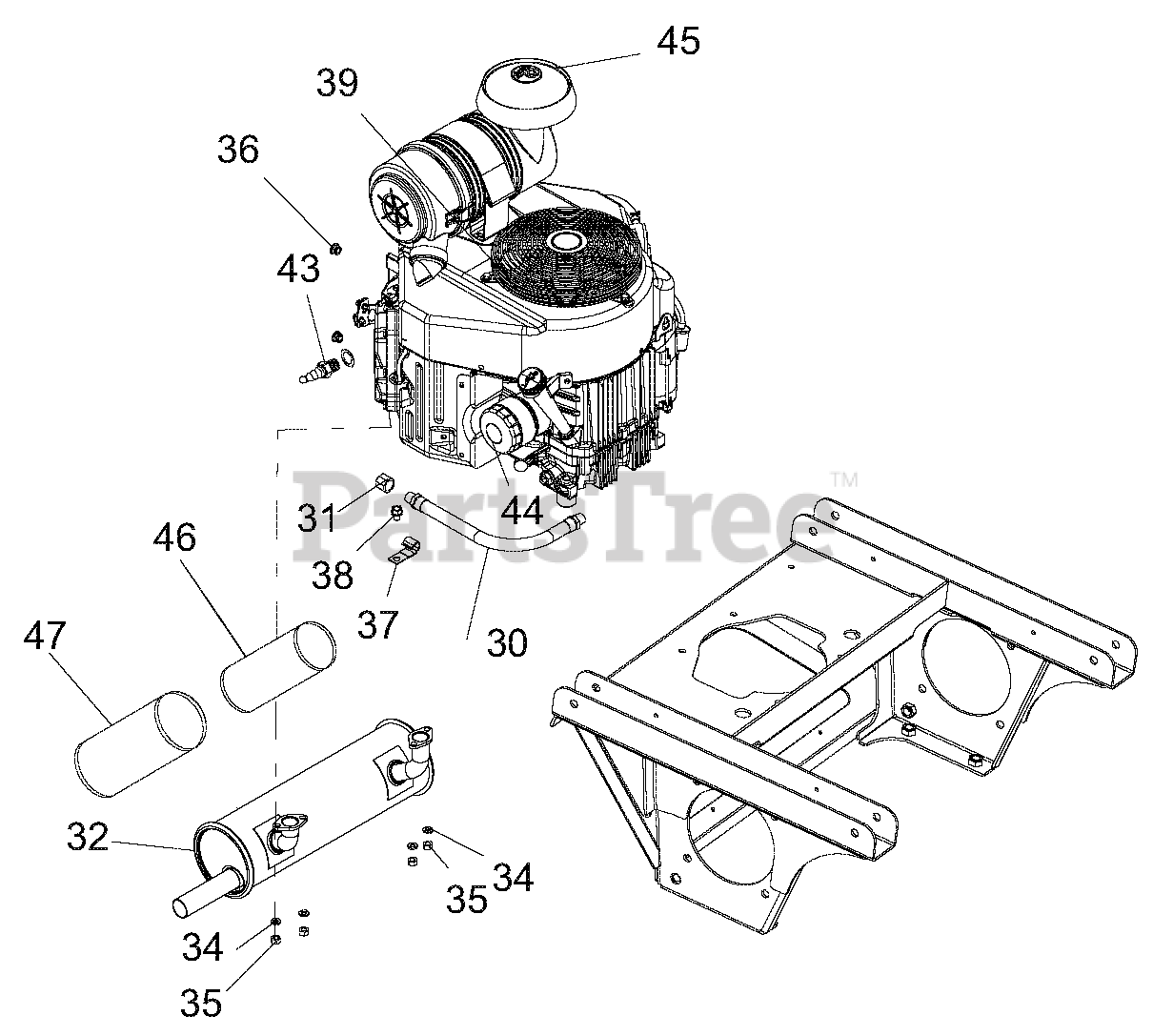

Engine Parts Diagram

  • Title

30

Gravely 03873100

HOSE, HYD .38-11-OK M6N0-M6N0
(Superseded to 07001829)

$18.99

$

Usually ships in 4-12 days

0

31

Gravely 03873200

PIPE CAP 3/8 NPT FEMALE

$12.99

$

Usually ships in 4-12 days

0

32

Gravely 03911000

MUFFLER, 27-31 FX KAW
(Superseded to 09386000)

$168.99

$

In Stock, only 1 left!

0

34

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 18

0

36

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

38

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 08200839

ENGINE, ENVIROGUARD, CONV. LP

$

$

Not available

43

Gravely 21536100

SPARK PLUG (Set to .025 before installation)

Note: (Set to .025 before installation)

$3.49

$

In Stock, only 2 left!

0

44

Gravely 21535800

OIL FILTER
(Superseded to 49065-0724)

$18.99

$

In Stock, Qty 20+

0

45

Gravely 09408700

CAP, AIR CLEANER INTAKE

$51.99

$

In Stock, only 1 left!

0

46

Gravely 21548700

FILTER, INNER

$27.99

$

In Stock, Qty 20+

0

47

Gravely 21548800

FILTER, OUTER

$27.99

$

In Stock, Qty 20+

0
