992243 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Propane (SN: 020000 - 029999) Deck And Deck Mount - 72 INCH Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Propane

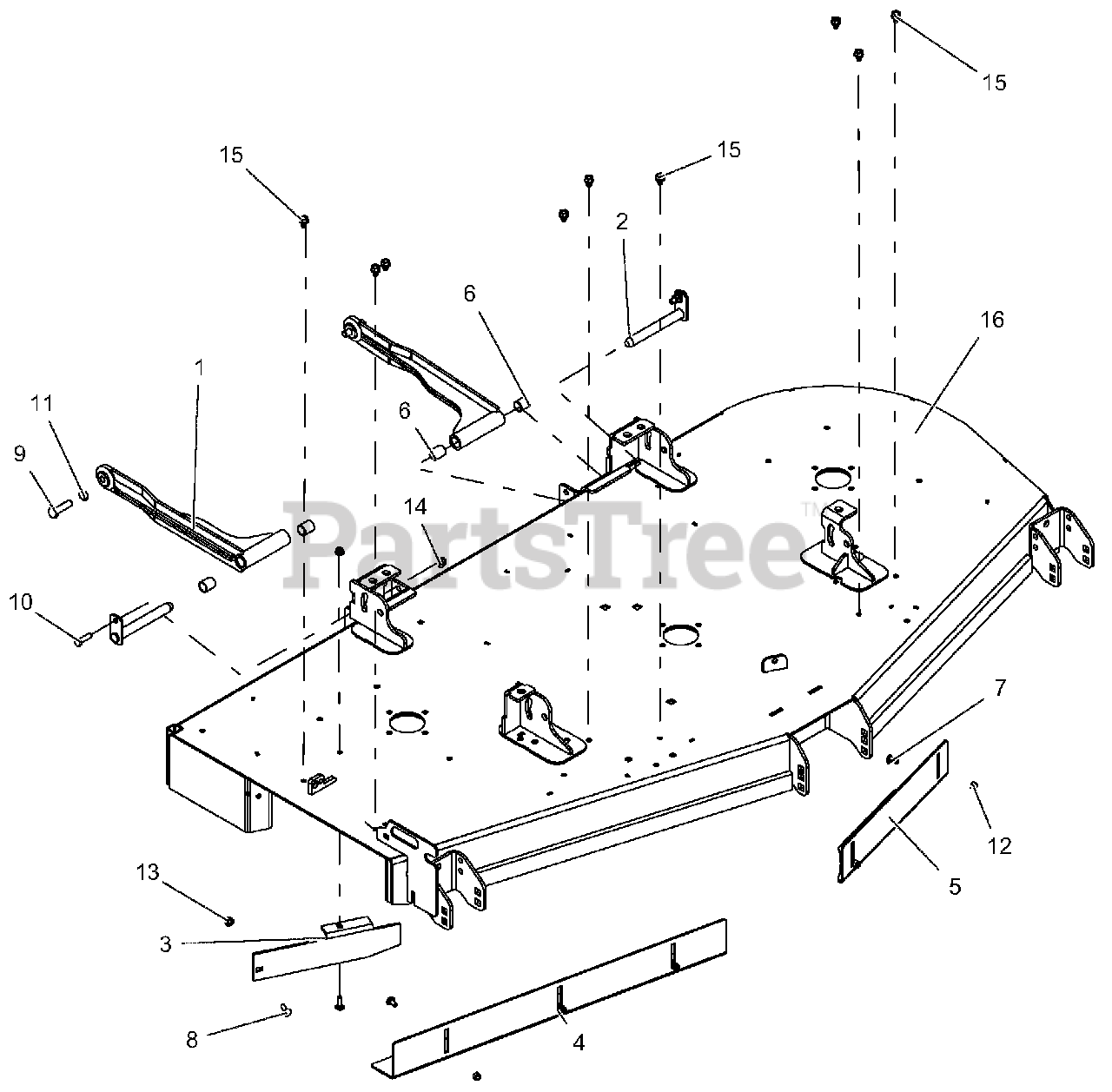

Deck And Deck Mount - 72 INCH Parts Diagram

  • Title

1

Gravely 59218600

DECK STABILIZER ARM W/BUSHINGS

$

$

Not available

2

Gravely 09238900

WLDMT, MOWER MTG. PIN

$61.99

$

Usually ships in 4-12 days

0

3

Gravely 00442453

BAFFLE, 72" DISCHARGE-RED

$55.99

$

Usually ships in 4-12 days

0

4

Gravely 00955851

BAFFLE, 72" RH VACUUM-BLACK

$

$

Not available

5

Gravely 00955951

BAFFLE, 72" LH VACUUM-BLACK

$

$

Not available

6

Gravely 05435900

BRG, .75 X .875 X 1.00

$5.99

$

In Stock, only 2 left!

0

7

Gravely 06215700

@BLT-RDHDSQNK .31-18X.75 G5 YWZC
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

8

Gravely 06216100

@BLT-RDHDSQSHNK .31-18X1.00 G5 Y
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05901436

BLT-HEX .50-13X1.75 GR5 YWZC EP80
(Superseded to 05901922)

$3.99

$

In Stock, only 1 left!

0

10

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06307300

@WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

12

Gravely 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 59218200

72" SIDE DISCH DECK W/SAFETY DECALS

$1758.99

$

Usually ships in 4-12 days

0
