992243 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Propane (SN: 020000 - 029999) Brakes And Transaxles Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Propane

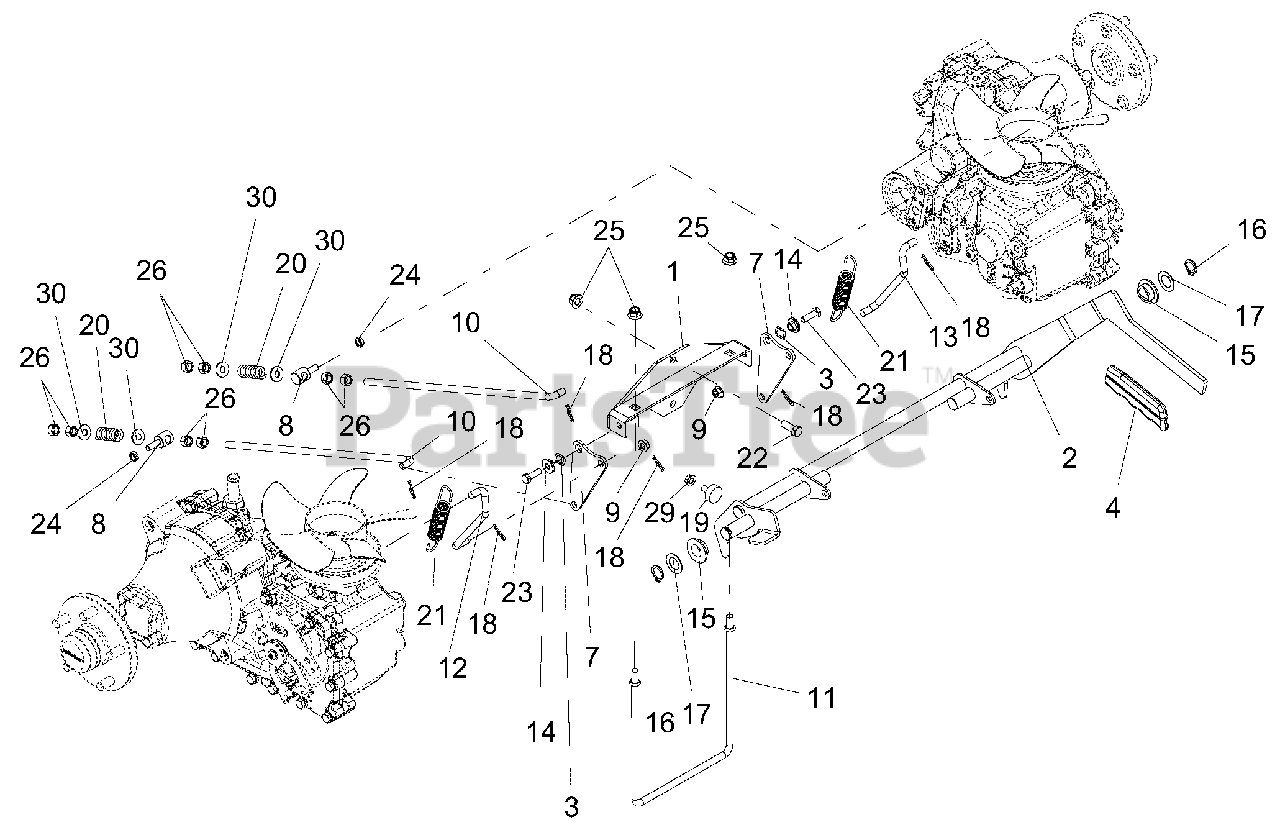

Brakes And Transaxles Parts Diagram

  • Title
1

Gravely 03898551

WMT, SPRING ANCHOR BRKT

$21.99

$

Usually ships in 4-12 days

0

2

Gravely 04383800

WLDMT, PARKING BRAKE LEVER

$131.99

$

Usually ships in 4-12 days

0

3

Gravely 00325400

WAVE WASHER .531X.781X.125 FH

$0.99

$

In Stock, Qty 20+

0

4

Gravely 03826900

GRIP, PARKING BRAKE

$3.99

$

In Stock, only 2 left!

0

7

Gravely 03969451

PLATE, BRAKE PIVOT

$12.99

$

Usually ships in 4-12 days

0

8

Gravely 03969600

TRUNNION, .31-18

$17.99

$

Usually ships in 4-12 days

0

9

Gravely 06543100

NUT, LK-TOP-FLG .312-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 03975700

ROD, BRAKE ADJ.

$28.99

$

Usually ships in 4-12 days

0

11

Gravely 03975800

ROD, BRAKE MTG

$23.99

$

Usually ships in 4-12 days

0

12

Gravely 04396700

LINKAGE, RH BRAKE ACTUATING

$13.99

$

Usually ships in 4-12 days

0

13

Gravely 04396800

LINKAGE, LH BRAKE ACTUATING

$

$

Not available

14

Gravely 05514800

BSHG.-FLG. .312 X .500 X .344

$2.49

$

In Stock, only 3 left!

0

15

Gravely 05525200

BUSHING, FLANGE
(Superseded to 05501517)

$

$

Not available

16

Gravely 05714600

RG-RING-EXT .689 X .078

$2.49

$

In Stock, Qty 5

0

17

Gravely 06413400

WHST-HDND-THRST

$3.49

$

In Stock, only 2 left!

0

18

Gravely 06714800

PIN, HAIR
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 1 left!

0

20

Gravely 08300027

SPRING, COMPRESSION

$9.49

$

In Stock, only 2 left!

0

21

Gravely 08333200

EXT. SPRING

$14.99

$

In Stock, only 2 left!

0

22

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06500011

NUT-LK-CTR-JAM .31-18 YWZC
(Superseded to 06500913)

$0.99

$

In Stock, only 3 left!

0

25

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0
