992240 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Kubota Diesel (SN: 040000 - 049999) Engine Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kubota Diesel

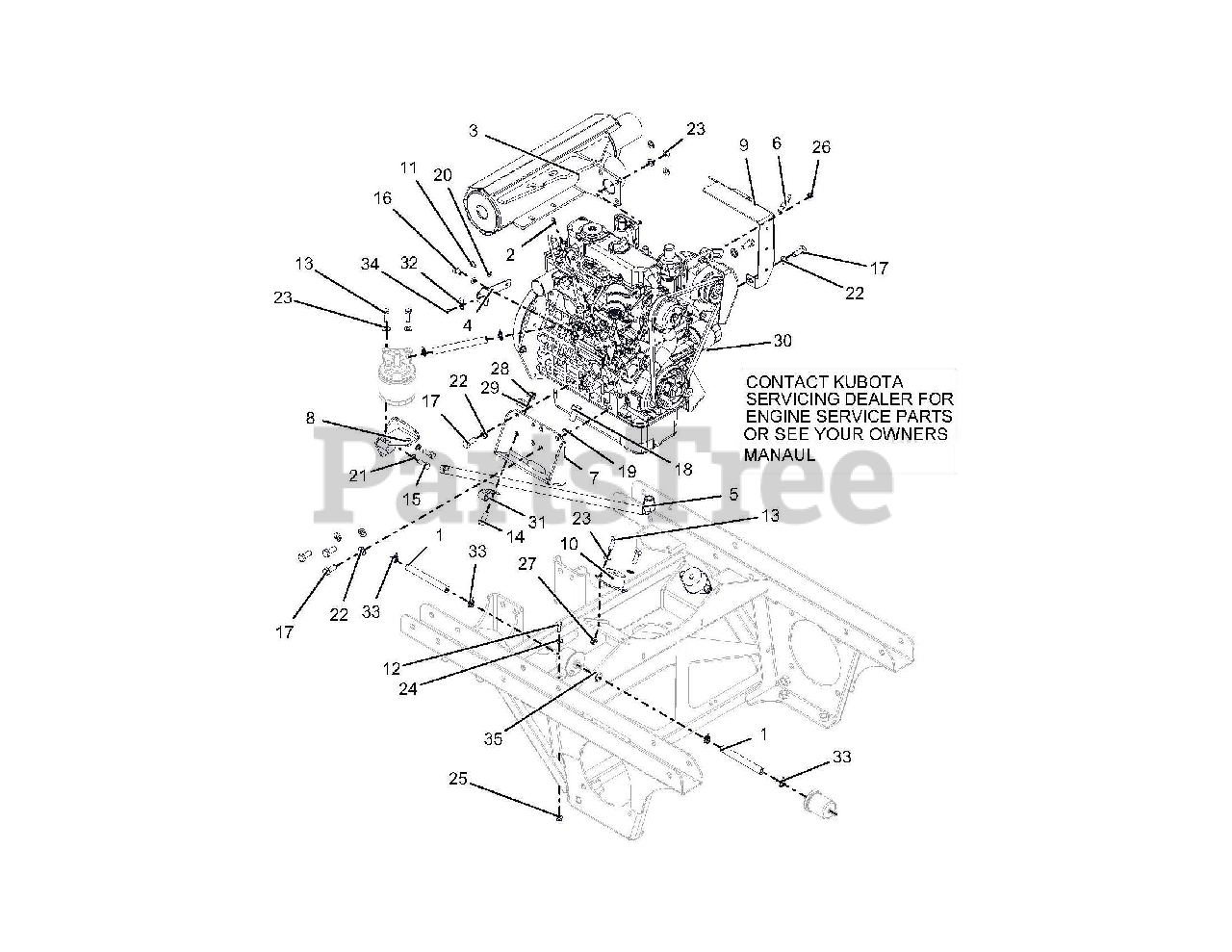

Engine Parts Diagram

  • Title

1

Gravely 00922600

HOSE, .31 ID X

$

$

Not available

2

Gravely 03604100

SWIVEL, ASM

$9.49

$

Usually ships in 4-12 days

0

3

Gravely 04424800

MFLR, DIESEL PT-400

$

$

Not available

4

Gravely 04438751

BRKT, THROTTLE CABLE -

Note: BLACK

$

$

Not available

5

Gravely 04506600

HOSE, ASM DIESEL OIL DRAIN

$

$

Not available

6

Gravely 04511100

SENDER, WATER TEMPERATURE

$

$

Not available

7

Gravely 04537851

WLDMT, FRONT ENGINE MOUNT

Note: BLACK

$129.99

$

Usually ships in 4-12 days

0

8

Gravely 04733151

WLDMT, DIESEL FUEL FILTER MOUNT

Note: (BLACK)

$

$

Not available

9

Gravely 04537751

BRKT, HEAT DEFLECTOR LOUVERED

Note: BLACK

$

$

Not available

10

Gravely 05034800

MOUNT, ENGINE. VIBRATION ISO

$22.99

$

Usually ships in 4-12 days

0

11

Gravely 05900045

BLT-HEX M6 X 1.0X10 YWZC

$

$

Not available

12

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 05964900

BLT, HEX M8-1.25X25 GR8.8YWZC

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 05970001

@BLT-HEX M8 X 1.25X14 YWZC
(Superseded to 05902018)

$3.99

$

Usually ships in 4-12 days

0

17

Gravely 05972800

BOLT, HEX M10-1.25 X 25 YWZC

$

$

Not available

18

Gravely 05975000

BLT-HEX .50-20X1.00 GR5 YWZC

$3.49

$

In Stock, only 4 left!

0

19

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

20

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

23

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

26

Gravely 06539800

NUT-HEX M6-1.00 YWZC
(Superseded to 06500925)

$

$

Not available

27

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06909400

CLAMP, J

$3.49

$

In Stock, Qty 8

0

30

Gravely 08200732

ASM, KUBOTA D902 WITH FUEL FILTERS & ELE FUEL PUMP

$

$

Not available

31

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

32

Gravely 06928000

CLIP, CABLE

$3.49

$

Usually ships in 4-12 days

0

33

Gravely 06947900

HOSE, CLAMP DOUBLE WIRE

$3.49

$

Usually ships in 4-12 days

0

34

Gravely 07400033

SCR, TAP 10-24X.375 PRE-COAT 80
(Superseded to 07400137)

$3.49

$

Usually ships in 4-12 days

0

35

Gravely 07500031

GROMMET, RUBBER

$3.49

$

Usually ships in 4-12 days

0
