992240 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Kubota Diesel (SN: 040000 - 049999) Controls Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kubota Diesel

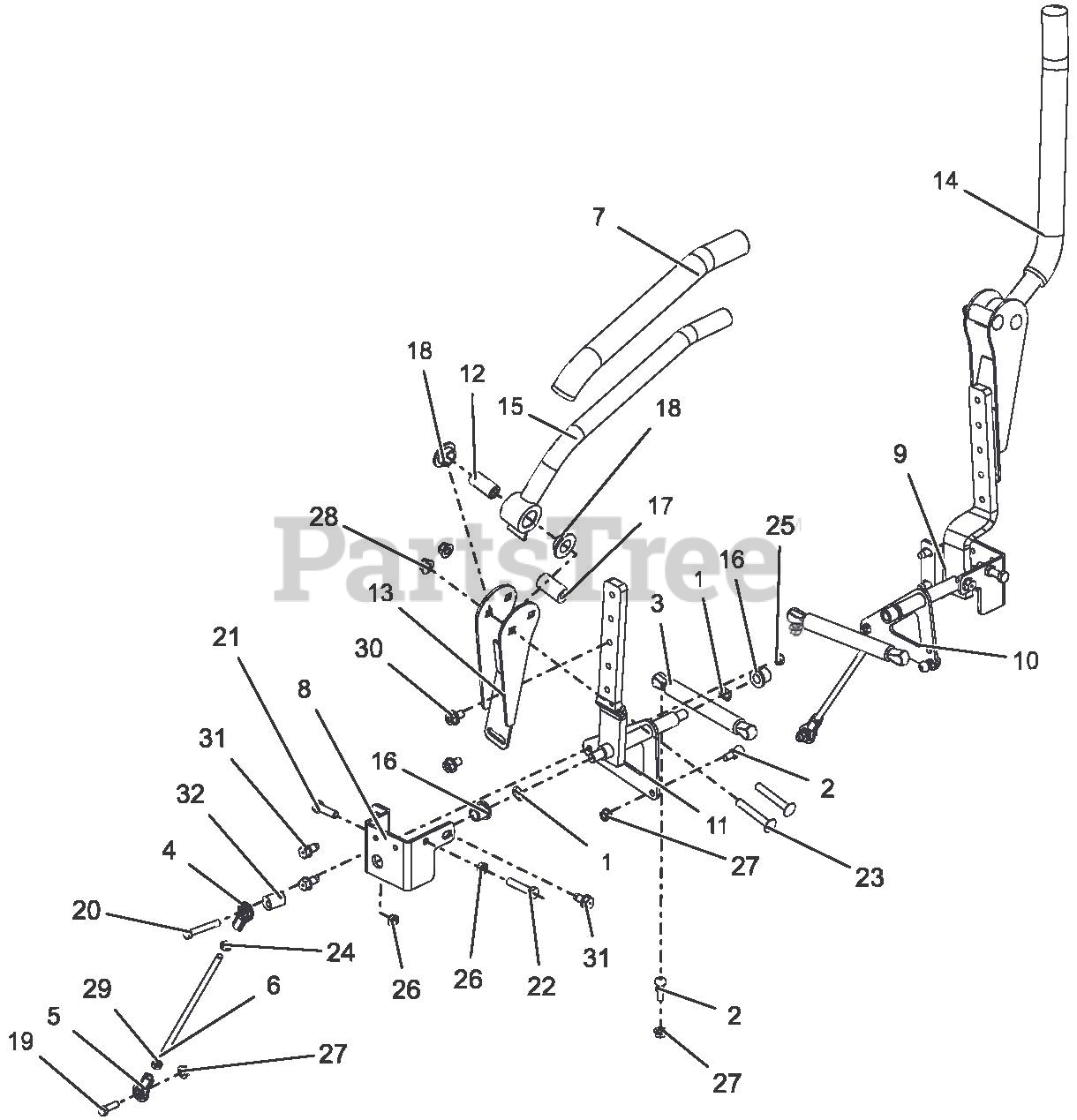

Controls Parts Diagram

  • Title

1

Gravely 00325400

WAVE WASHER .531 X .781 X .125 FH

$0.99

$

In Stock, Qty 20+

0

2

Gravely 03652200

STUD-BALL

$3.49

$

In Stock, only 3 left!

0

3

Gravely 03769800

DAMPER
(Superseded to 09689700)

$39.99

$

In Stock, Qty 20+

0

4

Gravely 03787100

ALIGNABALL, 5/16 RH THREAD

$12.99

$

In Stock, only 2 left!

0

5

Gravely 03787200

ALIGNABALL, 5/16 LH THREAD
(Superseded to 05298700)

$

$

Not available

6

Gravely 03938500

ROD, STEERING

$9.99

$

Usually ships in 4-12 days

0

7

Gravely 04383600

GRIP, HANDLEBAR

$35.99

$

In Stock, only 2 left!

0

8

Gravely 04395153

BRKT, RH CONTROL ARM STOP

Note: RED

$37.99

$

Usually ships in 4-12 days

0

9

Gravely 04395253

BRKT, LH CONTROL ARM STOP

Note: RED

$

$

Not available

10

Gravely 04413100

WLDMT, LH LOWER CONTROL ARM

$439.99

$

Usually ships in 4-12 days

0

11

Gravely 04413200

WLDMT, RH LOWER CONTROL ARM

$180.99

$

Usually ships in 4-12 days

0

12

Gravely 04413600

SPCR, STEERING ARM

$6.49

$

Usually ships in 4-12 days

0

13

Gravely 04776951

WLDMT, UPPER ADJUSTABLE CONTROL ARM

Note: BLACK

$37.99

$

Usually ships in 4-12 days

0

14

Gravely 04777100

WLDMT, LH CONTROL HANDLE
(Superseded to 59226200)

$

$

Not available

15

Gravely 04777500

WLDMT, RH CONTROL HANDLE

$

$

Not available

16

Gravely 05501001

BSHG-FLG .500 X .750 X .750 X .125

$4.99

$

In Stock, Qty 20+

0

17

Gravely 05501223

BSHG, ECCENTRIC .328 X .750 X 1.625

$4.99

$

In Stock, only 4 left!

0

18

Gravely 05525200

BSHG, FLANGE .762 X 1.48 X .44 NYLON
(Superseded to 05501517)

$

$

Not available

19

Gravely 05946900

BLT-HEX .31-18 X 1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 05957200

BLT-HEX .31-18 X 2.00 GR5 YWZC
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 05958000

BLT-HEX .38-16 X 1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 05974000

BLT-HEX .38-16 X 1.75 GR5 YWZC
(Superseded to 05901612)

$2.99

$

In Stock, only 1 left!

0

23

Gravely 06200213

BLT-RHDSSQNK .38-16 X 2.50 G5YZ
(Superseded to 06200315)

$3.49

$

In Stock, only 2 left!

0

24

Gravely 06529500

NUT-HEX .312-24 YWZC
(Superseded to 06500939)

$1.99

$

Usually ships in 4-12 days

0

25

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06535900

NUT, JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 06543100

NUT, LK-TOP-FLG .312-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06547200

NUT-HEX .312-24 LH GR5 YWZC

$3.99

$

Usually ships in 4-12 days

0

30

Gravely 07001707

BLT-SERHFWH .38-16 X .62 YWZC
(Superseded to 07001716)

$

$

Not available

31

Gravely 07415400

SCR-TAP .38-16 X .75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 09235700

ECCENTRIC

$4.99

$

Usually ships in 4-12 days

0
