992240 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Kubota Diesel (SN: 030000 - 039999) Electrical Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kubota Diesel

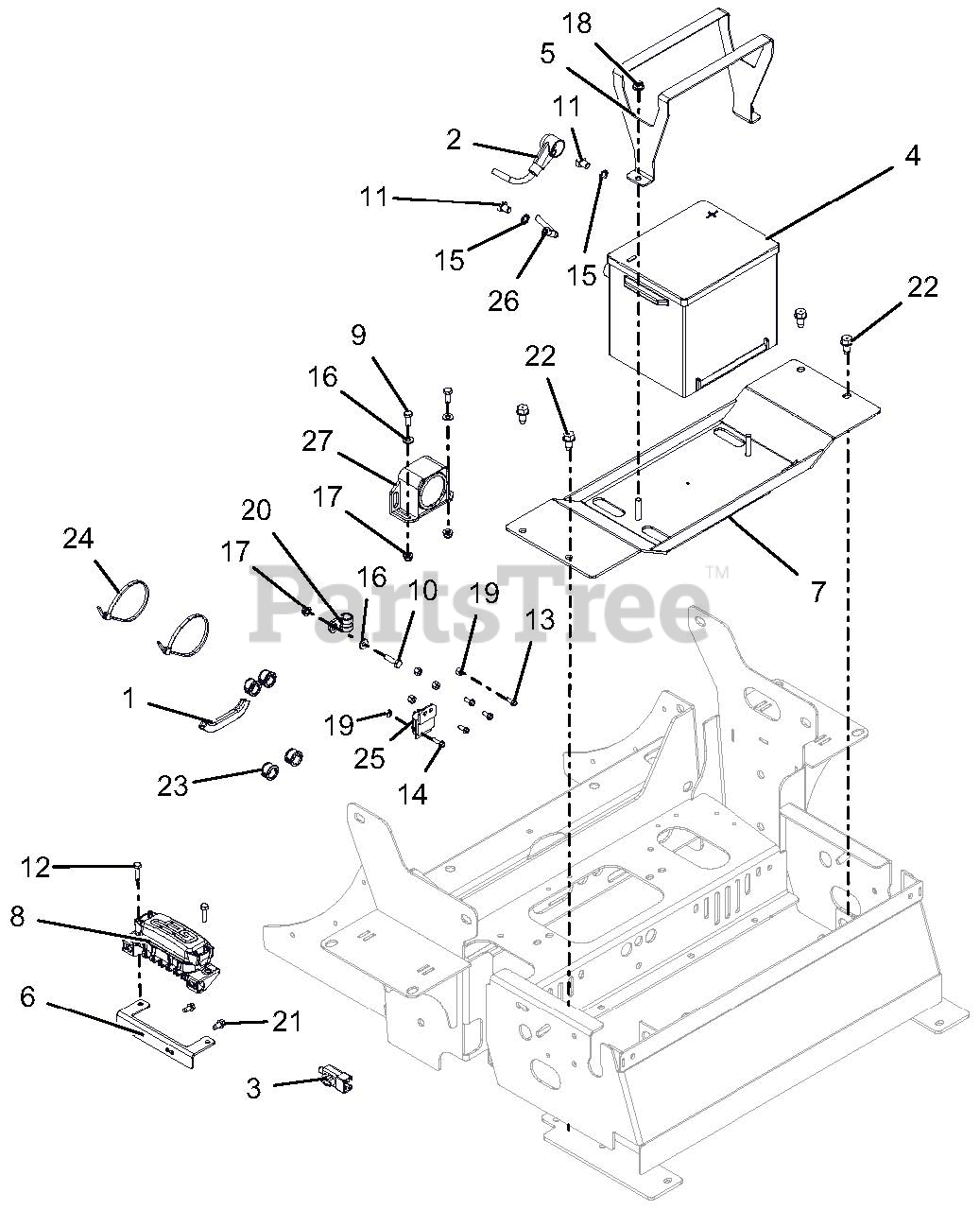

Electrical Parts Diagram

  • Title

1

Gravely 00918200

STRIP, COWL

$5.99

$

Usually ships in 4-12 days

0

2

Gravely 03287000

CABLE - POS BATT W/BOOTS 4X48

$28.99

$

Usually ships in 4-12 days

0

3

Gravely 03834300

SWITCH, SNAP IN - N.O./N.O.

$14.99

$

In Stock, only 1 left!

0

4

Gravely 04087300

BATTERY-GROUP 70-540 CCA

$

$

Not available

5

Gravely 04089351

BRACKET-BATTERY HOLD-DOWN

$71.99

$

Usually ships in 4-12 days

0

6

Gravely 04396353

FUSE HOLDER MOUNTING BRKT -RED

Note: RED

$

$

Not available

7

Gravely 04420653

PT400 DIESEL BATTERY TRAY -RED

$

$

Not available

8

Gravely 04519300

WIRE HARNESS, PT400 DIESEL

$517.99

$

Usually ships in 4-12 days

0

9

Gravely 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 05947700

@BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

11

Gravely 05967000

@BLT-HEX .38-16X.50 GR5 YWZC

$3.49

$

Usually ships in 4-12 days

0

12

Gravely 05972000

@BLT-HEX M6-1.0X25 YWZC

$

$

Not available

13

Gravely 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

15

Gravely 06308700

@WSHR-LK-EXT.391X.628X.036YWZC

$1.99

$

Usually ships in 4-12 days

0

16

Gravely 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

18

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06908200

CLAMP, CUSHIONED STEEL

$5.99

$

Usually ships in 4-12 days

0

21

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 07500126

BUSH, PANEL SNAP .687X.875X.56

$3.99

$

In Stock, only 2 left!

0

24

Gravely 07517300

CABLE TIE LG 5-1/2

$

$

Not available

25

Gravely 09044200

MODULE,INTERLOCK,DELAY, 1801

$71.99

$

In Stock, only 1 left!

0

26

Gravely 09278100

CABLE, NEGATIVE BATTERY 49.00

$32.99

$

Usually ships in 4-12 days

0

27

Gravely T833-394C

ALARM,BACKUP BA1A W/ NO GROUND

$86.99

$

Usually ships in 4-12 days

0
