992240 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Kubota Diesel (SN: 030000 - 039999) Deck Mount - 72 Inch Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kubota Diesel

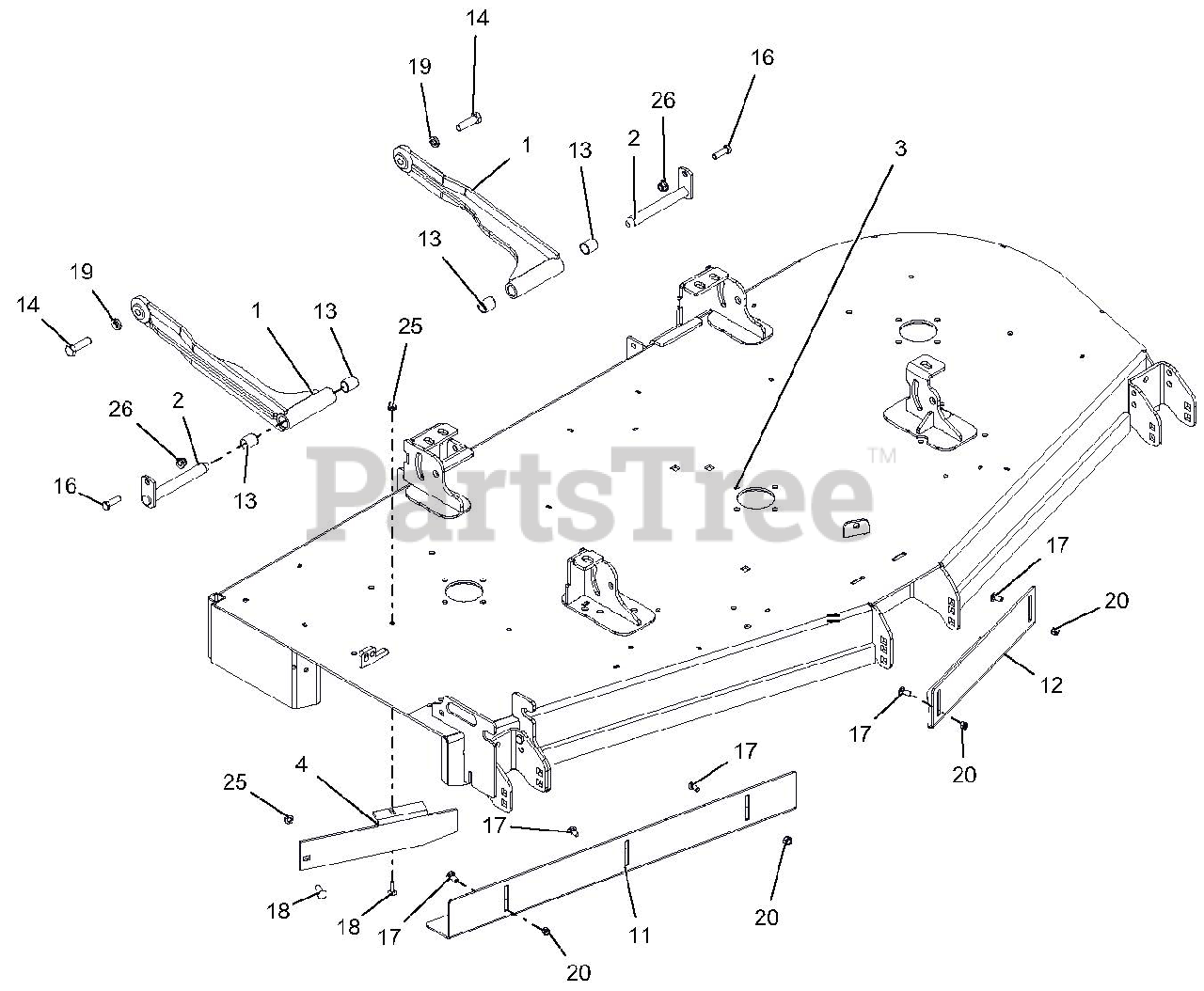

Deck Mount - 72 Inch Parts Diagram

  • Title

1

Gravely 03837151

DECK STABILIZER ARM - BLACK
(Superseded to 05253251)

Note: BLACK

$148.99

$

Usually ships in 4-12 days

0

2

Gravely 09238900

WELDMENT, MOWER MTG. PIN

$61.99

$

Usually ships in 4-12 days

0

3

Gravely 59218200

72" SIDE DISCH DECK W/DECALS

$1758.99

$

Usually ships in 4-12 days

0

4

Gravely 00442453

72" DISCHARGE BAFFLE - RED

Note: RED

$55.99

$

Usually ships in 4-12 days

0

11

Gravely 00955851

72" RH VACUUM BAFFLE - BLK

Note: BLACK

$

$

Not available

12

Gravely 00955951

72" LH VACUUM BAFFLE - BLK

Note: BLACK

$

$

Not available

13

Gravely 05435900

BRG, .750 X .875 X 1.000

$5.99

$

In Stock, only 2 left!

0

14

Gravely 05901436

BLT-HEX .50-13X1.75 GR5EP80 YZ
(Superseded to 05901922)

$3.99

$

In Stock, only 1 left!

0

16

Gravely 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

18

Gravely 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06307300

@WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

20

Gravely 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0
