992240 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Kubota Diesel (SN: 030000 - 039999) Deck Lift - Left Hand Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kubota Diesel

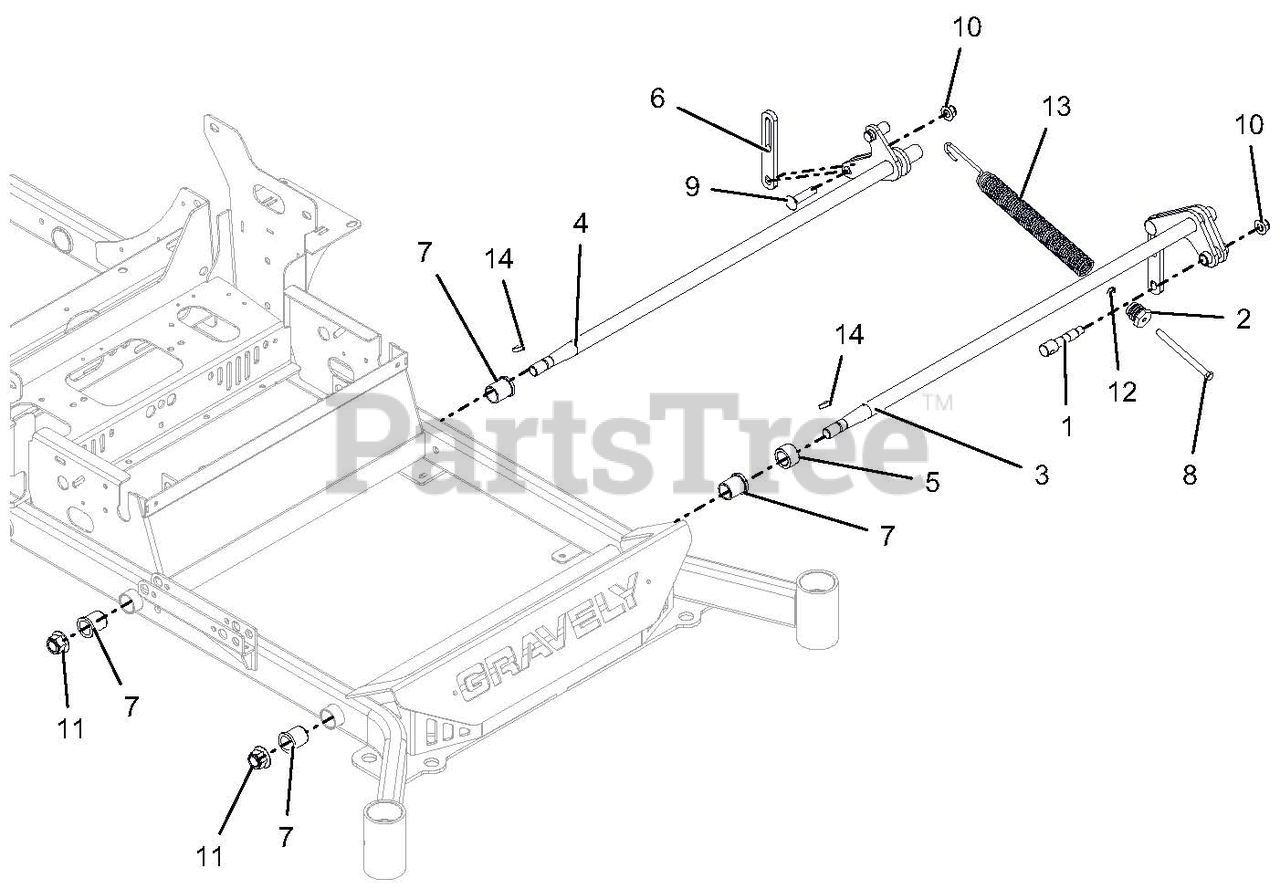

Deck Lift - Left Hand Parts Diagram

  • Title

1

Gravely 04373200

TRUNION, DECK LIFT SPRING

$124.99

$

Usually ships in 4-12 days

0

2

Gravely 04374200

PLUG, SPRING

$77.99

$

Usually ships in 4-12 days

0

3

Gravely 04689167

FRONT LH DECK LIFT ARM WMT -LF

Note: BLACK

$170.99

$

Usually ships in 4-12 days

0

4

Gravely 04689267

REAR LH DECK LIFT ARM WMT -LF

Note: BLACK

$174.99

$

Usually ships in 4-12 days

0

5

Gravely 04689400

SPACER, 1.500 X 1.000 X .880

$9.49

$

In Stock, only 4 left!

0

6

Gravely 04732400

LINK-DECK LIFT - LONG

$17.99

$

Usually ships in 4-12 days

0

7

Gravely 05500934

BSHG-FLG 1.00X1.25X1.50X1.50

$6.99

$

In Stock, Qty 20+

0

8

Gravely 05901506

BLT-HEX .38-16X5.00 GR5 FTH YZ
(Superseded to 05901923)

$

$

Not available

9

Gravely 06200119

BLT-RDHDSQNK .50-13X2.25 G5YZ
(Superseded to 06200423)

$3.99

$

In Stock, Qty 7

0

10

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06500717

@NUT-LK-NYL-FLG .75-10 YWZC
(Superseded to 06500931)

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 08300624

SPRING, DECK LIFT

$13.99

$

In Stock, only 1 left!

0

14

Gravely 06608900

KEY-WDRF .25X1.00 HRD #15

$3.99

$

In Stock, Qty 18

0
