992240 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Kubota Diesel (SN: 030000 - 039999) Belt, Drive - Idler Cont'd Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kubota Diesel

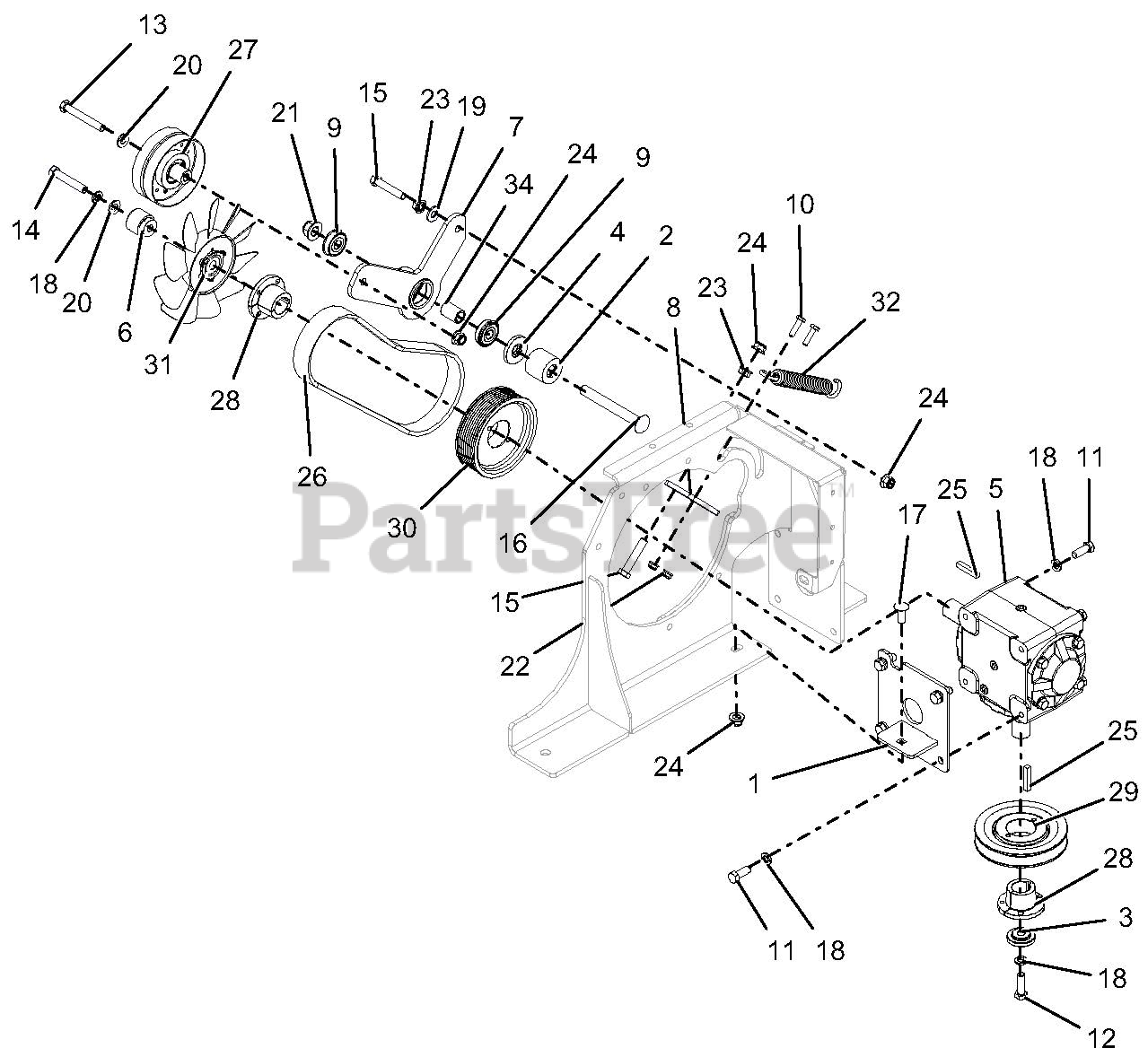

Belt, Drive - Idler Cont'd Parts Diagram

  • Title

1

Gravely 04451851

WDMT, GEARBOX ENGINE MOUNT

$242.99

$

Usually ships in 4-12 days

0

2

Gravely 04453000

SPACER, IDLER ARM MOUNT

$73.99

$

Usually ships in 4-12 days

0

3

Gravely 04530500

RETAINER, SHEAVE

$7.99

$

In Stock, Qty 20+

0

4

Gravely 04714600

SPACER, IDLER ARM

$5.99

$

In Stock, Qty 20+

0

5

Gravely 04735900

GEARBOX, 90 DEG. 1:1 215HD

$1293.99

$

Usually ships in 4-12 days

0

6

Gravely 04757200

HUB, FAN SPACER

$96.99

$

Usually ships in 4-12 days

0

7

Gravely 04767851

WDMT, DIESEL IDLER ARM
(Superseded to 04767800)

$77.99

$

Usually ships in 4-12 days

0

8

Gravely 04791800

PLATE, SPRING ANCHOR

$

$

Not available

9

Gravely 05480000

BRG-BALL .50X1.38X.438 SEALED

$13.99

$

In Stock, Qty 20+

0

10

Gravely 05947700

@BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

11

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 05961400

@BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

14

Gravely 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

15

Gravely 05963100

BLT-HEX .38-16X2.00 GR8 YWZC
(Superseded to 05901810)

$2.99

$

In Stock, only 1 left!

0

16

Gravely 06200132

BLT-RDHDSQNK .50-13X4.50 G5 Y
(Superseded to 06200505)

$5.99

$

Usually ships in 4-12 days

0

17

Gravely 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

23

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06604300

KEY-SQ .25 X 1.50 X .25 SAE

$3.99

$

Usually ships in 4-12 days

0

26

Gravely 07200701

BELT, 8-RIB POLY-V

$82.99

$

Usually ships in 4-12 days

0

27

Gravely 07342700

PLY, IDLER FLAT 4.00 X .38

$193.99

$

Usually ships in 4-12 days

0

28

Gravely 07335900

BUSHING,TAPER, 1" SHAFT

$55.99

$

Usually ships in 4-12 days

0

29

Gravely 07338400

SHEAVE,TAPER BSHG, 4.95" OD

$95.99

$

Usually ships in 4-12 days

0

30

Gravely 07342400

SHEAVE, PVK 8-RIB 4.650 DIA.

$258.99

$

Usually ships in 4-12 days

0

31

Gravely 07500318

FAN, 7" 10 BLADE W/ INSERT

$25.99

$

Usually ships in 4-12 days

0

32

Gravely 08300728

SPRING- EXTENSION

$26.99

$

In Stock, Qty 20+

0

34

Gravely 09357700

SPACER .510 X .867 X 1.1485

$4.99

$

In Stock, only 3 left!

0
