992240 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Kubota Diesel (SN: 030000 - 039999) Belt, Drive - Idler Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kubota Diesel

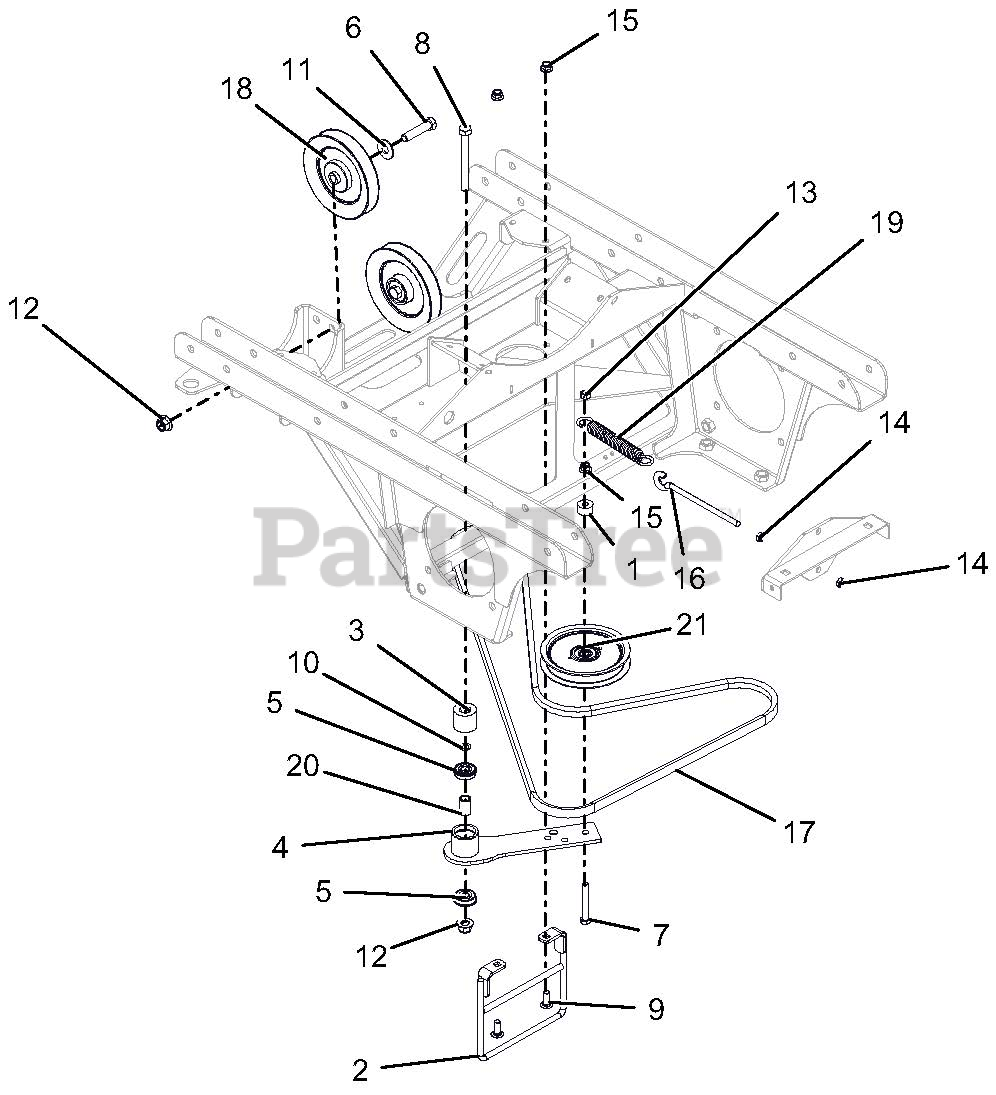

Belt, Drive - Idler Parts Diagram

  • Title
1

Gravely 03035100

SPACER .390X1.000X.562

$9.49

$

In Stock, only 1 left!

0

2

Gravely 04557551

WDMT, DIESEL BELT FINGER-BLK

Note: BLACK

$90.99

$

Usually ships in 4-12 days

0

3

Gravely 04453000

SPACER, IDLER ARM MOUNT

$73.99

$

Usually ships in 4-12 days

0

4

Gravely 09357351

HYDRO DRIVE IDLER ARM WMT- BLK
(Superseded to 09357300)

Note: BLACK

$52.99

$

Usually ships in 4-12 days

0

5

Gravely 05480000

BRG-BALL .50X1.38X.438 SEALED

$13.99

$

In Stock, Qty 20+

0

6

Gravely 05961000

@BLT-HEX .50-13X2.25 GR5 YWZC
(Superseded to 05901835)

$3.49

$

In Stock, Qty 5

0

7

Gravely 05961400

@BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

8

Gravely 05962300

@BLT-HEX .50-13X4.50 GR5 YWZC
(Superseded to 05901932)

$5.99

$

In Stock, only 2 left!

0

9

Gravely 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06400015

WASHER, .500X.750X.020 THRUST

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

12

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 07001604

BOLT, .38-16X6.00 .62 DIA EYE

$6.99

$

Usually ships in 4-12 days

0

17

Gravely 07200617

V-BELT, 5L-RAW EDGE

$

$

Not available

18

Gravely 07328000

PLY-V 6.0 X .500 ID DBL BRG.

$108.99

$

In Stock, only 1 left!

0

19

Gravely 08300728

SPRING- EXTENSION

$26.99

$

In Stock, Qty 20+

0

20

Gravely 09357700

SPACER .510 X .867 X 1.1485

$4.99

$

In Stock, only 3 left!

0

21

Gravely 07334500

IDLER, FLAT-5.00X.75

$80.99

$

In Stock, Qty 10

0
