992240 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Kubota Diesel (SN: 020000 - 029999) Subframe and Bumper Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kubota Diesel

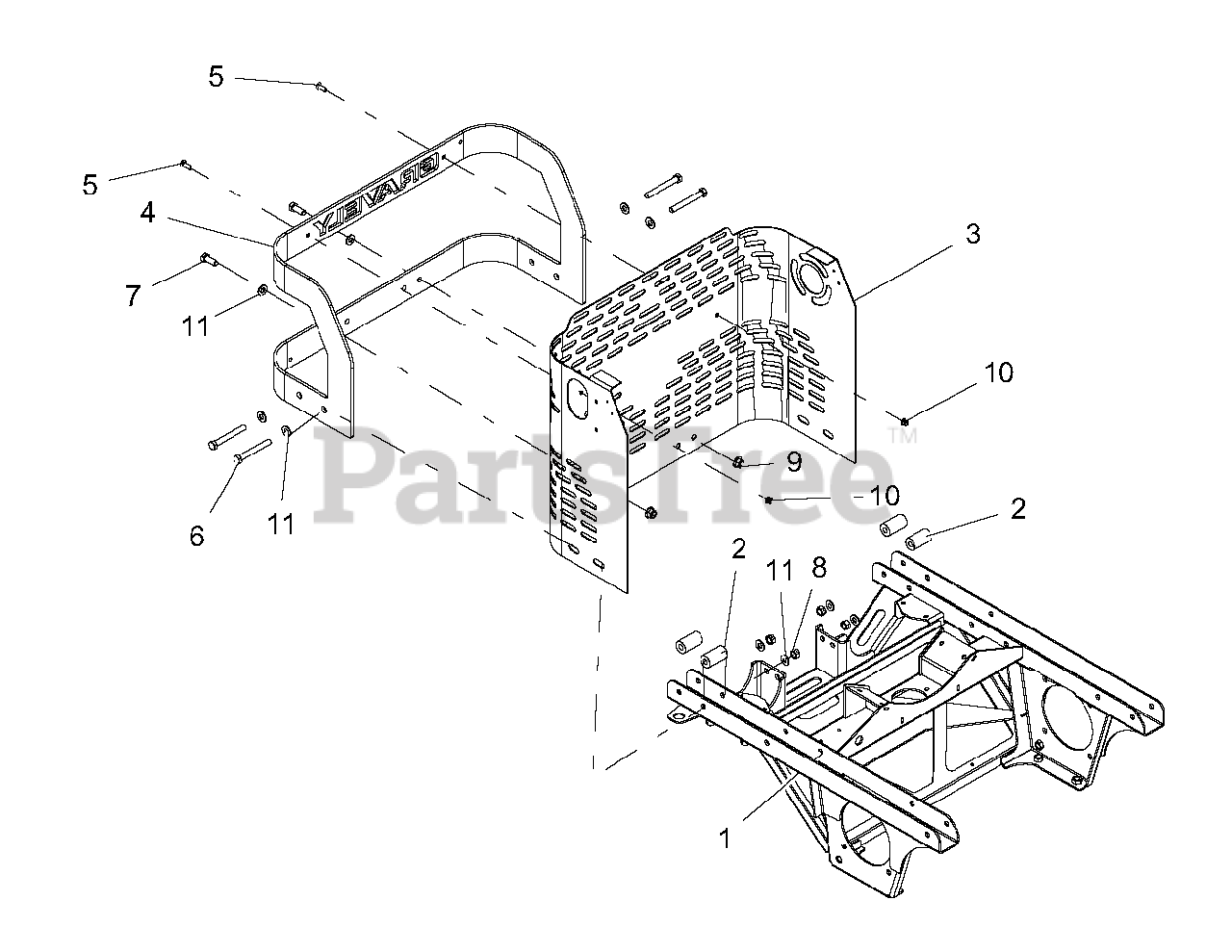

Subframe and Bumper Parts Diagram

  • Title
1

Gravely 04414153

WLDMT, ENGINE/ TRANSMISSION FRAME-RED

$994.99

$

Usually ships in 4-12 days

0

2

Gravely 04440900

SPCR, BUMPER PT 400, DIESEL

$77.99

$

Usually ships in 4-12 days

0

3

Gravely 04580251

GUARD, REAR PT400 DIESEL
(Superseded to 04734951)

$362.99

$

Usually ships in 4-12 days

0

4

Gravely 04580353

BUMPER, PT400 REAR

$

$

Not available

5

Gravely 06216100

@BLT-RDHDSQSHNK .31-18X1.00 G5 Y
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 05961900

BLT-HEX .50-13X4.00 GR5 YWZC
(Superseded to 05901734)

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 05958900

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

8

Gravely 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 1 left!

0

9

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0
