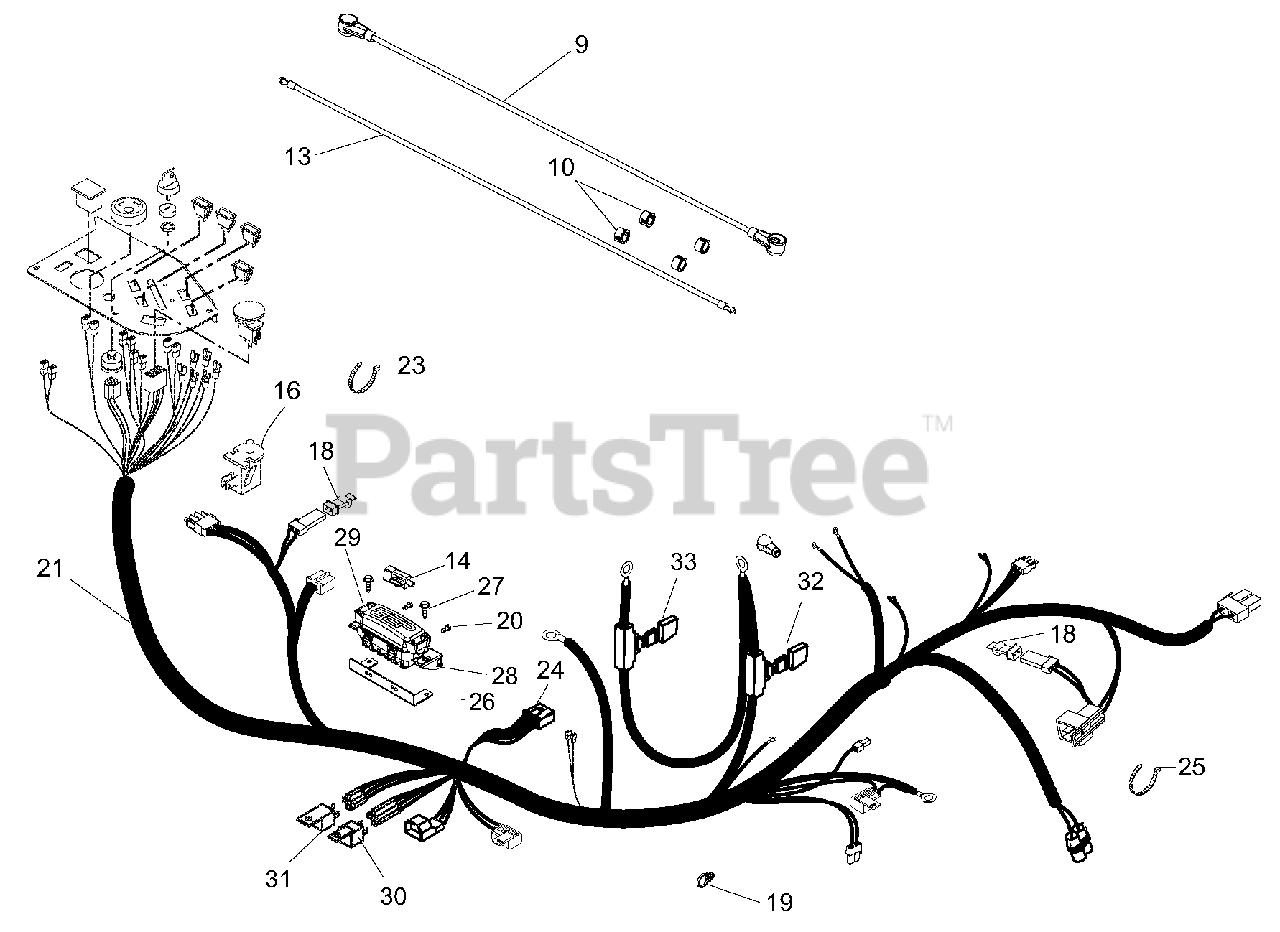

992240 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Kubota Diesel (SN: 001000 - 019999) Electrical Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kubota Diesel

Electrical Parts Diagram

  • Title

9

Gravely 03287000

Cable, POS Battery w/Boots 4 x 48

$28.99

$

Usually ships in 4-12 days

0

10

Gravely 07500126

Bushing, Panel Snap .687 x .875 x .56

$3.99

$

In Stock, only 2 left!

0

13

Gravely 09278100

Cable, Negative Battery 49.0"

$32.99

$

Usually ships in 4-12 days

0

14

Gravely 03834300

Switch, Snap-In - N.O./N.O.

$14.99

$

In Stock, only 1 left!

0

16

Gravely 02754100

Switch, Snap Mounting (Included with Seat)

Note: (Included with Seat)

$9.49

$

In Stock, Qty 20+

0

18

Gravely 09293501

Diode, Connector Shell (Included with Harness)

Note: (Included with Harness)

$11.99

$

In Stock, only 3 left!

0

19

Gravely 07500040

Cable Tie with TREE (.25 HOLE)

Note: (.25 HOLE)

$3.99

$

In Stock, only 1 left!

0

20

Gravely 05972000

Bolt, Hex M6-1.0X25

$

$

Not available

21

Gravely 04519300

Harness, PT400 Diesel Wiring

$517.99

$

Usually ships in 4-12 days

0

23

Gravely 07517300

Cable Tie

$

$

Not available

24

Gravely 09044200

Module,Interlock,Delay (included with Harness)

Note: (included with Harness)

$71.99

$

In Stock, only 1 left!

0

25

Gravely 04003800

Cable Tie

$

$

Not available

26

Gravely 04396353

Fuse Holder Mounting Bracket

$

$

Not available

27

Gravely 07400034

Screw-Tapping .25-20X.50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 04504200

Cover, Fuse Holder

$28.99

$

Usually ships in 4-12 days

0

30

Gravely 21500004

Relay, 70A (included with Harness)

Note: (included with Harness)

$17.99

$

Usually ships in 4-12 days

0

31

Gravely 00432100

Relay, Sealed w/Diode (included with Harness)
(Superseded to 00432101)

Note: (included with Harness)

$22.99

$

In Stock, Qty 20+

0

32

Gravely 21500005

Fuse, 40A Slow-Burn Maxi (included with Harness)

Note: (included with Harness)

$

$

Not available

33

Gravely 21500006

Fuse, 70A MAXI

$

$

Not available

34

Gravely N/A

Glow Plug Timer Module (included w/engine)

Note: (included w/engine)

$

$

Currently unavailable
