992240 (Pro-Turn 472) - Gravely Pro-Turn 72" Zero-Turn Mower, Kubota Diesel (SN: 001000 - 019999) Clutch And Belts Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kubota Diesel

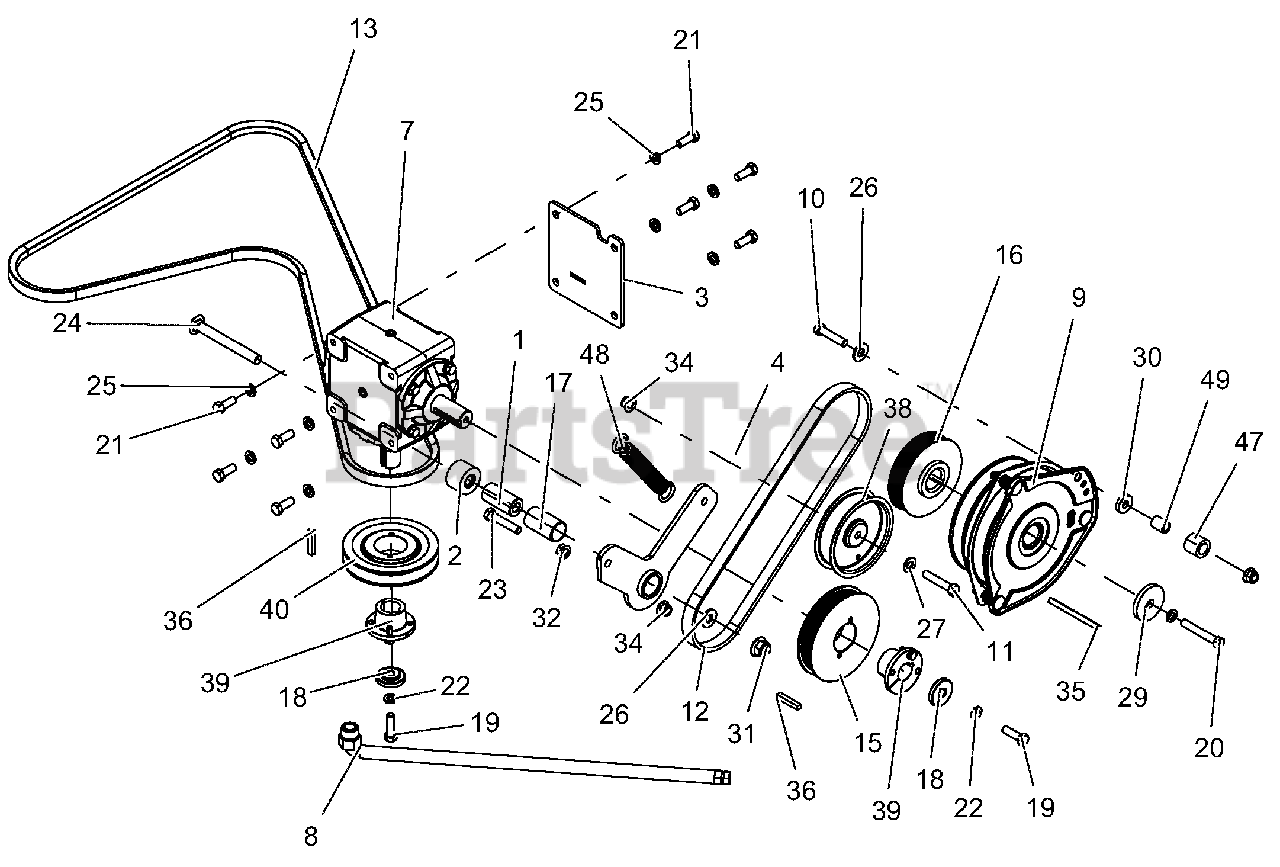

Clutch And Belts Parts Diagram

  • Title
1

Gravely 01581700

BSHG, SPCR .502X.997X2.03

$5.99

$

In Stock, Qty 20+

0

2

Gravely 04445400

SPCR, PT400 DIESEL IDLER ARM

$

$

Not available

3

Gravely 04451851

WLDMT, GEARBOX SUPPORT-BLACK

$242.99

$

Usually ships in 4-12 days

0

4

Gravely 04508651

WLDMT, IDLER ARM-BLACK

$77.99

$

Usually ships in 4-12 days

0

7

Gravely 04502000

GEARBOX, 90 1.0:1.0
(Superseded to 04735900)

$1293.99

$

Usually ships in 4-12 days

0

8

Gravely 04506600

HOSE, ASM DIESEL OIL DRAI N

$

$

Not available

9

Gravely 04508400

CLUTCH, DIESEL REVERSE MOUNT

$646.99

$

Usually ships in 4-12 days

0

10

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 05963300

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, Qty 6

0

12

Gravely 07200626

BELT, PVK 5 RIB

$

$

Not available

13

Gravely 07200617

BELT, 5L RAW EDGE

$

$

Not available

15

Gravely 07339100

SHEAVE, POLY -V 4.65 X 1.00
(Superseded to 59220900)

$646.99

$

Usually ships in 4-12 days

0

16

Gravely 07339000

SHEAVE, POLY -V 4.125 X 1.125
(Superseded to 59220900)

$646.99

$

Usually ships in 4-12 days

0

17

Gravely 05500123

BSHG, 1.00X1.125X1.937
(Superseded to 05501234)

$10.99

$

In Stock, Qty 20+

0

18

Gravely 04530500

RETAINER, SHEAVE SPINDLE

$7.99

$

In Stock, Qty 20+

0

19

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 05901513

BOLT, HEX 3/8-24 x 2.50 GR5 YZ EP80

$10.99

$

Usually ships in 4-12 days

0

21

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 05963100

BLT-HEX .38-16X2.00 GR8 YWZC
(Superseded to 05901810)

$2.99

$

In Stock, only 1 left!

0

24

Gravely 06200132

BLT-RDHDSQNK .50-13X4.50 G5 YWZC
(Superseded to 06200505)

$5.99

$

Usually ships in 4-12 days

0

25

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 06435900

WSHR-FL-STL.
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$6.99

$

In Stock, only 2 left!

0

30

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZC
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

31

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 06600003

KEY, SQ .25 x 3.50 x .25 SAE

$4.99

$

In Stock, Qty 7

0

36

Gravely 06604300

KEY, SQ .25 X .25 X 1.25

$3.99

$

Usually ships in 4-12 days

0

38

Gravely 07327100

PULLEY, IDLER 4.00 X .375

$37.99

$

In Stock, Qty 16

0

39

Gravely 07335900

BSHG, TAPER LOCK 1" SHAFT

$55.99

$

Usually ships in 4-12 days

0

40

Gravely 07338400

SHEAVE, TAPER BUSHING

$95.99

$

Usually ships in 4-12 days

0

47

Gravely 07500007

BUMPER, RUBBER .62 X 1.0 X .88 LG

$5.99

$

In Stock, only 2 left!

0

48

Gravely 08300507

SPRG, EXTENSION
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

49

Gravely 08905500

BUSH., S .407X.625X.813 ST REVA

$13.99

$

In Stock, only 1 left!

0
