992237 (Pro-Turn 460) - Gravely Pro-Turn 60" Zero-Turn Mower, Propane (SN: 050000 & Above) Transaxles Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Propane

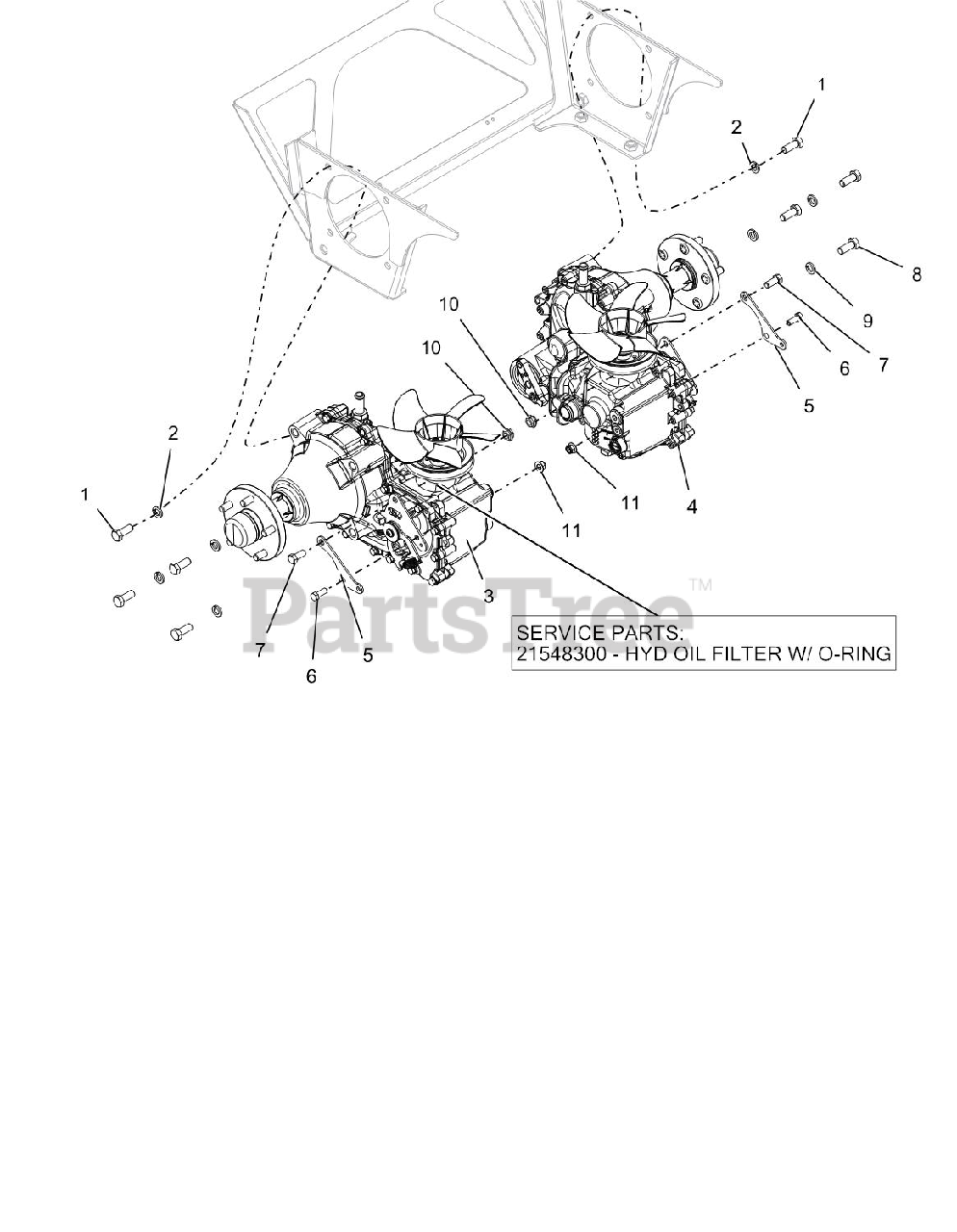

Transaxles Parts Diagram

  • Title
1

Gravely 05958900

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

2

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

3

Gravely 03935200

TRANS, R.H. HG ZT-5400

$2650.99

$

Usually ships in 4-12 days

0

3

Gravely 21548300

HYDRO OIL FILTER W/ O-RING

Note: SERVICE PART

$36.99

$

Usually ships in 4-12 days

0

4

Gravely 03935300

TRANS, LH HG ZT-5400

$2650.99

$

Usually ships in 4-12 days

0

5

Gravely 04979900

BRKT, DRIVE CONTROL LINKAGE MTG - BLK

$

$

Not available

6

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 05958700

BLT-HEX .44-14X1.00 GR5 YWZC
(Superseded to 05901913)

$2.99

$

In Stock, only 1 left!

0

8

Gravely 05958900

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

9

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

10

Gravely 06500009

NUT-LK-NYL-FLG .44-14 YWZC
(Superseded to 06500811)

$5.99

$

In Stock, only 1 left!

0

11

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0
