992237 (Pro-Turn 460) - Gravely Pro-Turn 60" Zero-Turn Mower, Propane (SN: 050000 & Above) Hydraulic Tanks Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Propane

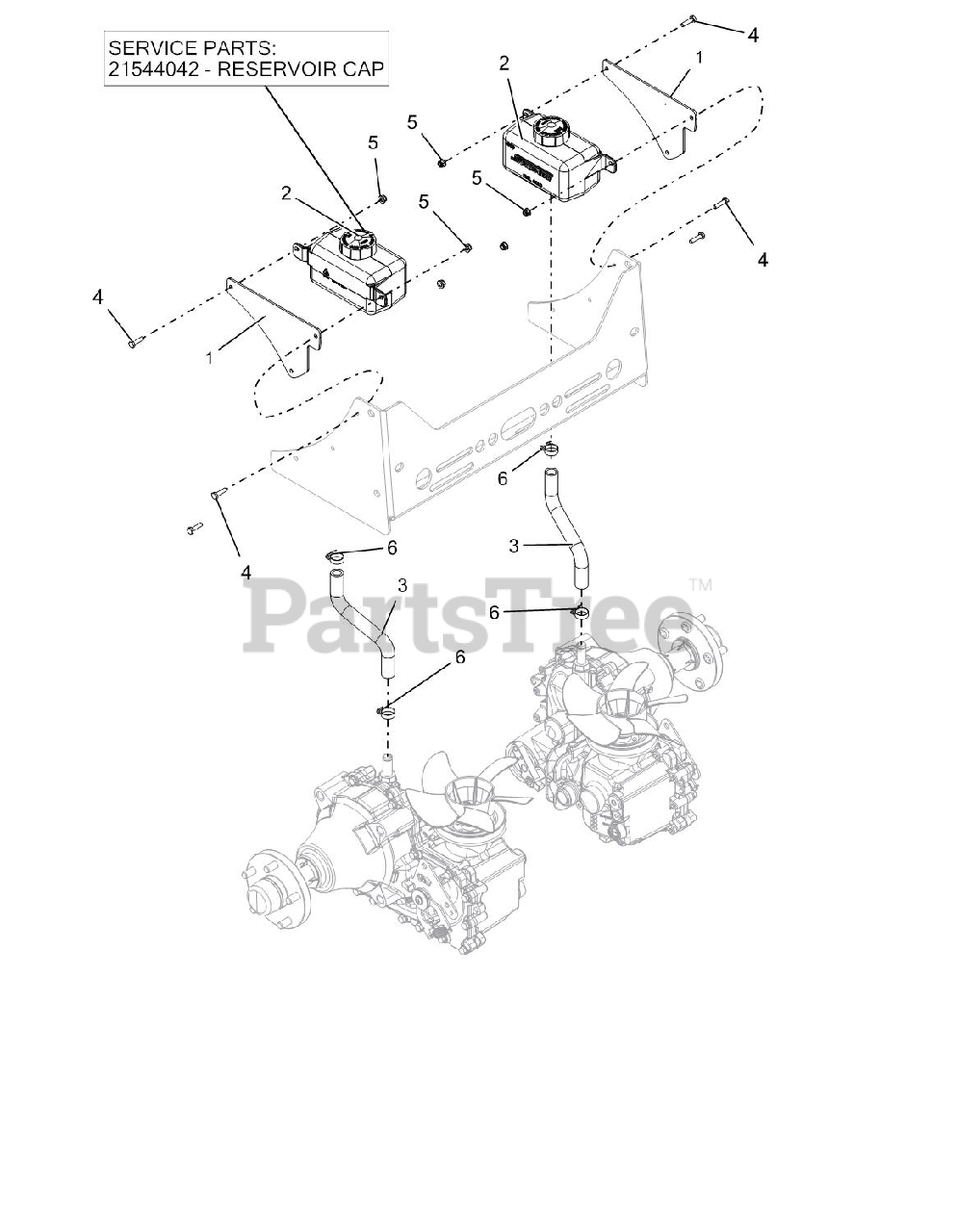

Hydraulic Tanks Parts Diagram

  • Title
1

Gravely 03918253

PLATE, HYDRO OVERFLOW TANK MTG

$18.99

$

In Stock, only 1 left!

0

2

Gravely 03947000

TANK, HYD 1000ML

$31.99

$

In Stock, only 3 left!

0

2

Gravely 21544042

RESERVOIR CAP

Note: SERVICE PART

$21.99

$

Usually ships in 4-12 days

0

3

Gravely 03986400

HOSE, HYDRO OVERFLOW

$11.99

$

In Stock, only 2 left!

0

4

Gravely 05947700

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

5

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

6

Gravely 06923500

CLAMP, .88 DIA HOSE

$1.99

$

In Stock, Qty 6

0
