992237 (Pro-Turn 460) - Gravely Pro-Turn 60" Zero-Turn Mower, Propane (SN: 030000 - 039999) Engine Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Propane

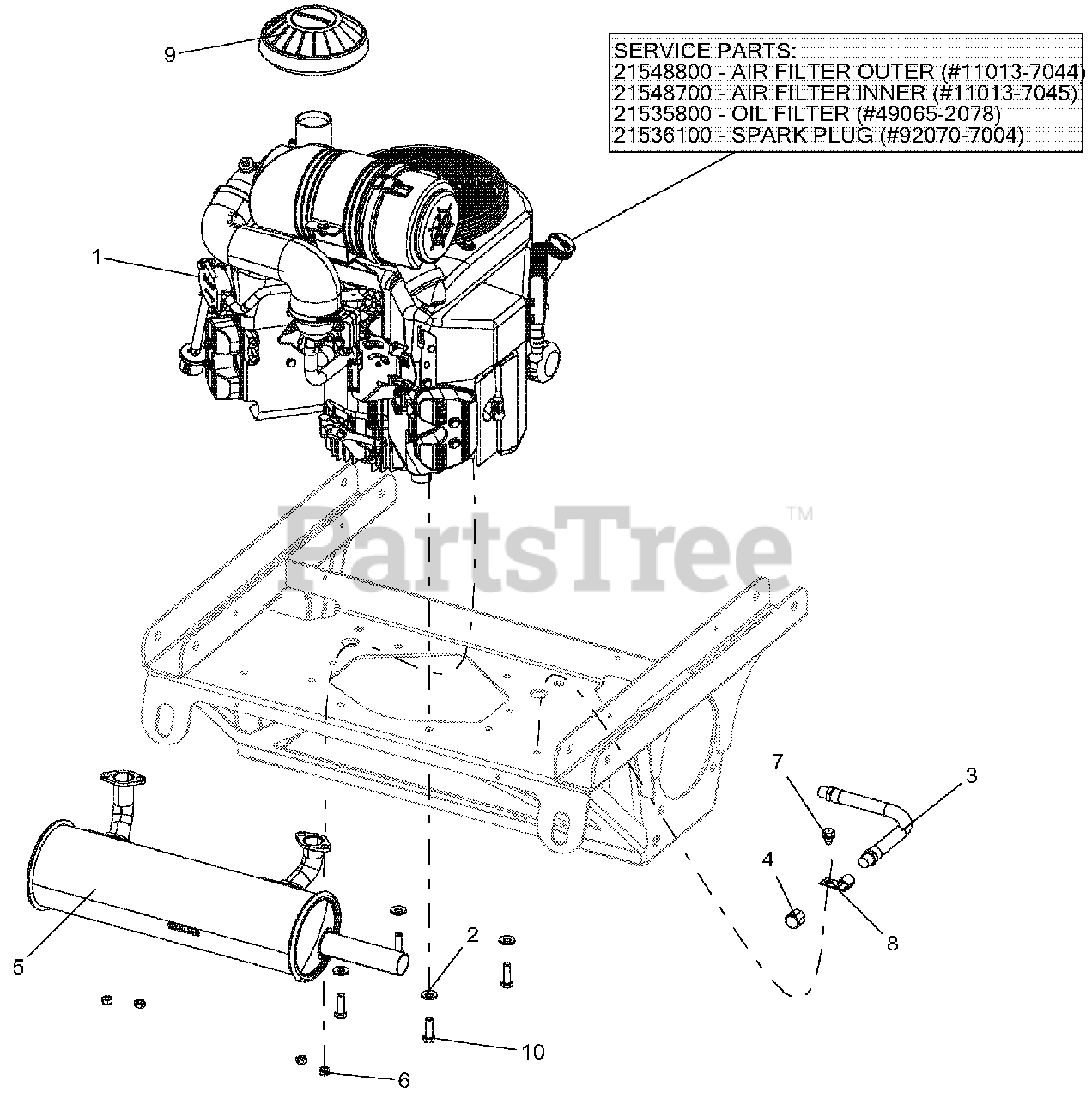

Engine Parts Diagram

  • Title

1

Gravely 08200839

ENGINE, ENVIROGUARD LP CONVERSION

$

$

Not available

1

Gravely 21548800

AIR FILTER OUTER (#11013-7044)

Note: (#11013-7044)

$27.99

$

In Stock, Qty 20+

0

1

Gravely 21548700

AIR FILTER INNER (#11013-7045)

Note: (#11013-7045)

$27.99

$

In Stock, Qty 20+

0

1

Gravely 21535800

OIL FILTER (#49065-2078)
(Superseded to 49065-0724)

Note: (#49065-2078)

$18.99

$

In Stock, Qty 20+

0

1

Gravely 21536100

SPARK PLUG (#92070-7004)

Note: (#92070-7004)

$3.49

$

In Stock, only 2 left!

0

2

Gravely 06400927

WSHR, 3/8" SPRING DISC

$3.49

$

In Stock, only 2 left!

0

3

Gravely 03873100

HOSE, HYD .38-11-0K M6N0-M6NO
(Superseded to 07001829)

$18.99

$

Usually ships in 4-12 days

0

4

Gravely 03873200

PIPE, CAP 3/8 NPT FEMALE

$12.99

$

Usually ships in 4-12 days

0

5

Gravely 03911000

MUFFLER, 27-31 FX KAW
(Superseded to 09386000)

$168.99

$

In Stock, only 1 left!

0

6

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 18

0

7

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

9

Gravely 09408700

CAP, AIR CLEANER INTAKE (2")

Note: (2")

$51.99

$

In Stock, only 1 left!

0

10

Gravely 05901522

BLT-HEX .38-16X1.25 GR5 YWZC NYTORQ
(Superseded to 05901808)

$1.99

$

In Stock, Qty 11

0
