992237 (Pro-Turn 460) - Gravely Pro-Turn 60" Zero-Turn Mower, Propane (SN: 030000 - 039999) Decks, Belts, Blades, And Spindles - 60 Inch Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Propane

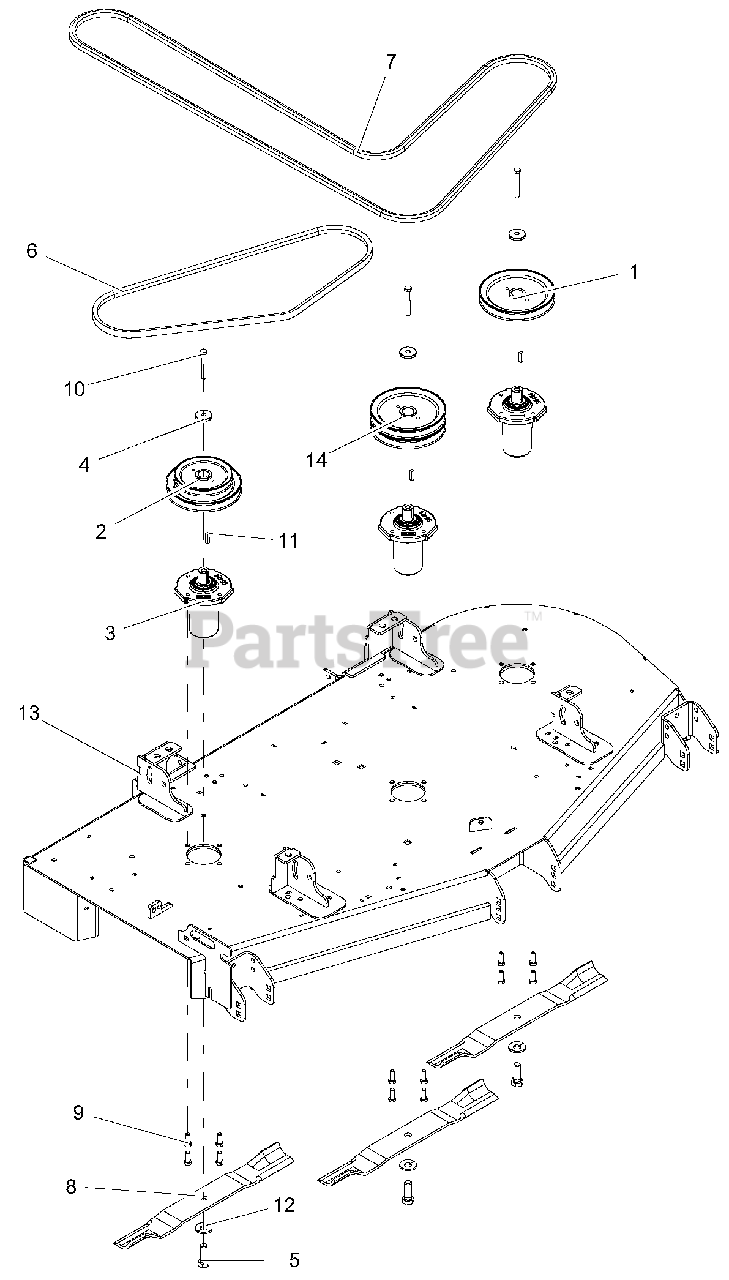

Decks, Belts, Blades, And Spindles - 60 Inch Parts Diagram

  • Title

1

Gravely 07328967

PULLEY, V-1" ID X 6.75" OD-BLACK
(Superseded to 59211600)

$83.99

$

In Stock, Qty 8

0

2

Gravely 07340400

PULLEY, DOUBLE -1" ID X 6.75" & 5.25" OD

$70.99

$

In Stock, only 2 left!

0

3

Gravely 59215400

SERVICE, ASM SPINDLE- DUCTILE
(Superseded to 59225700)

Note: 59215400 Assembly includes items: 3, 4, 5, 9, 10 and 12.

$239.99

$

In Stock, Qty 20+

0

4

Gravely 04530500

RETAINER, SHEAVE SPEINDL

$7.99

$

In Stock, Qty 20+

0

5

Gravely 05978900

BLT, HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

6

Gravely 07200038

BELT, B 63.00 RAW COGGED

$68.99

$

In Stock, Qty 20+

0

7

Gravely 07200510

BELT, BB 118.00 WRAPPED HEX

$151.99

$

In Stock, only 2 left!

0

8

Gravely 09081200

BLADE, MOWER 60"

$29.99

$

In Stock, Qty 20+

0

9

Gravely 05900013

BLT-HEX .38-16X1.00 GR5 YWZC EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06611200

KEY-SQ .250X.250X1.00 RC 40-50

$2.99

$

In Stock, Qty 15

0

12

Gravely 06445700

WSHR, BLVL .63X1.625X.14

$4.99

$

In Stock, only 3 left!

0

13

Gravely 59220800

KIT-60 MOWER DCK W/ SAFE DECAL

$1163.99

$

Usually ships in 4-12 days

0

14

Gravely 07328867

PULLEY, DOUBLE 1"ID X 6.75"OD-BLACK
(Superseded to 59211500)

$91.99

$

In Stock, Qty 20+

0
