992236 (Pro-Turn 460) - Gravely Pro-Turn 60" Zero-Turn Mower, Kubota Diesel (SN: 040000 - 049999) Frame Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kubota Diesel

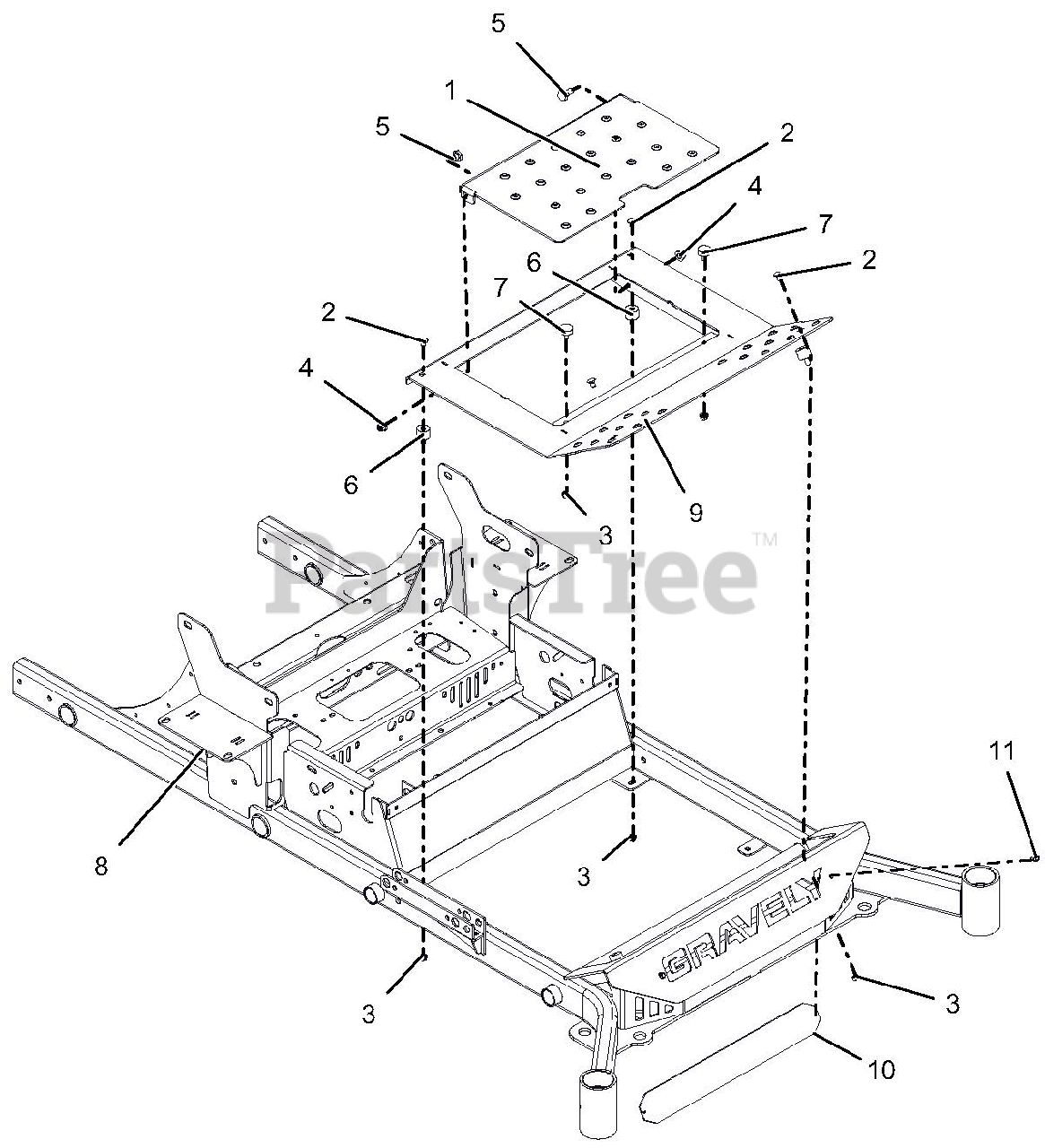

Frame Parts Diagram

  • Title
1

Gravely 04412253

PANEL, INSPECTION

$

$

Not available

2

Gravely 06222000

BLT-RDHDSQNK .31-18X.50 G5 YWZC
(Superseded to 06200406)

$2.99

$

In Stock, Qty 20+

0

3

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 07000034

BLT, SHLDR EP .38-16X.30 HEX YZ

$3.99

$

In Stock, only 2 left!

0

6

Gravely 07500214

BUMPER, STUD MOUNTED W/FEMALE INSERT

$20.99

$

Usually ships in 4-12 days

0

7

Gravely 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 1 left!

0

8

Gravely 59219800

52-66" MAIN FRAME W/SAFETY DECALS

$1293.99

$

Usually ships in 4-12 days

0

9

Gravely 59220100

FOOTPLATE WLDMT W/SAFETY DECAL

$170.99

$

Usually ships in 4-12 days

0

10

Gravely 04386551

PLATE, BUMPER LOGO BACKING-BLACK

$

$

Not available

11

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
