992236 (Pro-Turn 460) - Gravely Pro-Turn 60" Zero-Turn Mower, Kubota Diesel (SN: 030000 - 039999) Deck Mount - 60 Inch Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kubota Diesel

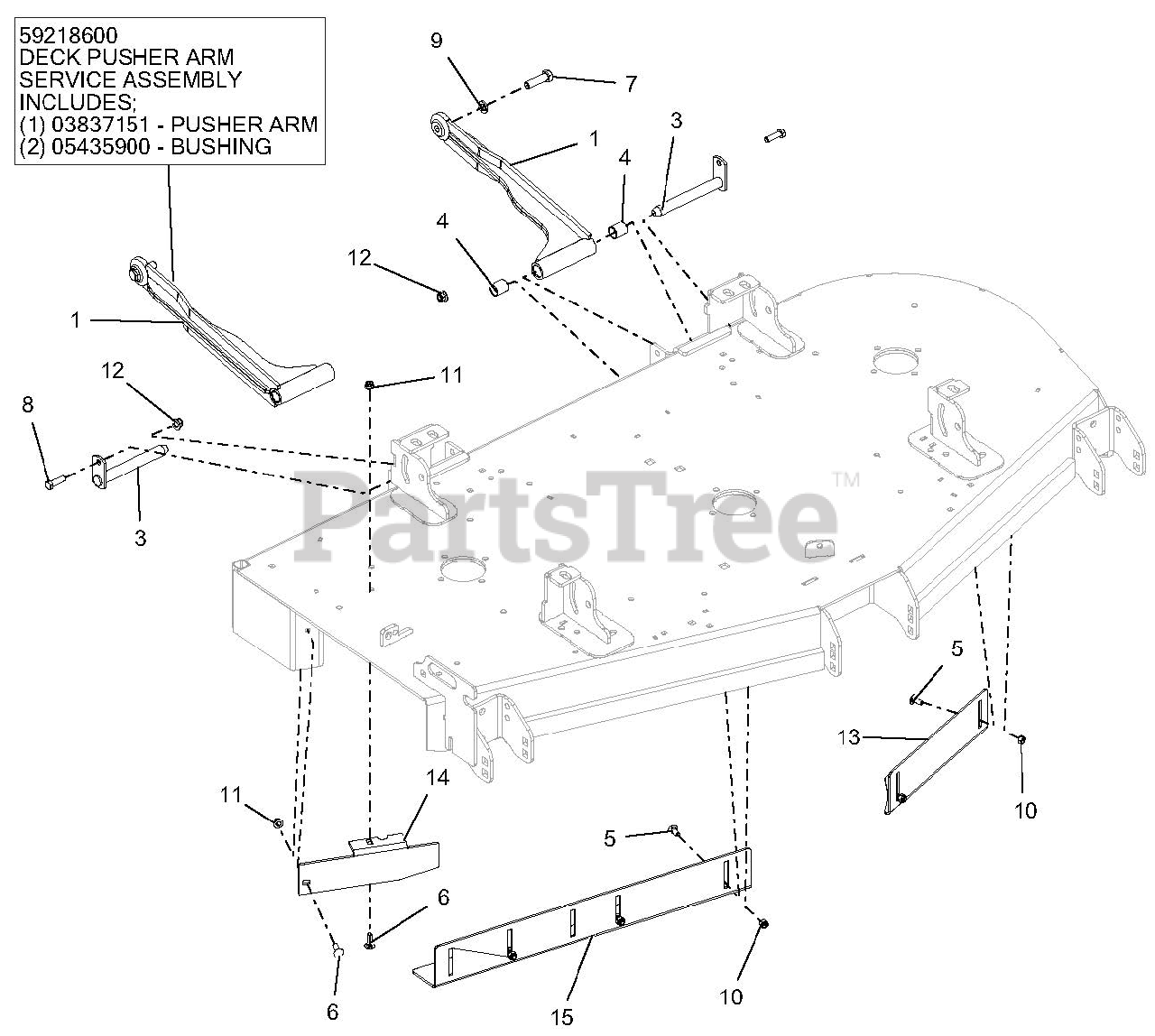

Deck Mount - 60 Inch Parts Diagram

  • Title

1

Gravely 03837151

WMT, DECK STABILIZER ARM
(Superseded to 05253251)

Note: BLACK

$148.99

$

Usually ships in 4-12 days

0

1

Gravely 59218600

DECK PUSHER ARM SERVICE ASSEMBLY INCLUDES:

$

$

Not available

1

Gravely 03837151

PUSHER ARM
(Superseded to 05253251)

$148.99

$

Usually ships in 4-12 days

0

1

Gravely 05435900

BUSHING

$5.99

$

In Stock, only 2 left!

0

3

Gravely 09238900

WLDMT, MOWER MTG. PIN

$61.99

$

Usually ships in 4-12 days

0

4

Gravely 05435900

BRG, .750 X .875 X 1.000

$5.99

$

In Stock, only 2 left!

0

5

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5 YWZC
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

6

Gravely 06216100

BLT-RDHDSQSHNK .31-18X1.00 G5 Y
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 05901436

BLT-HEX .50-13X1.75 GR5 YWZC EP80
(Superseded to 05901922)

$3.99

$

In Stock, only 1 left!

0

8

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

10

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 00952651

BAFFLE, 60" LH VACUUM
(Superseded to 05252051)

$44.99

$

Usually ships in 4-12 days

0

14

Gravely 00374153

BAFFLE, 60" DISCHARGE

$28.99

$

In Stock, only 1 left!

0

15

Gravely 00952551

BAFFLE, 60" RH VACUUM
(Superseded to 05251951)

$51.99

$

In Stock, only 1 left!

0
