992236 (Pro-Turn 460) - Gravely Pro-Turn 60" Zero-Turn Mower, Kubota Diesel (SN: 001000 - 019999) 60" Belt Idlers Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kubota Diesel

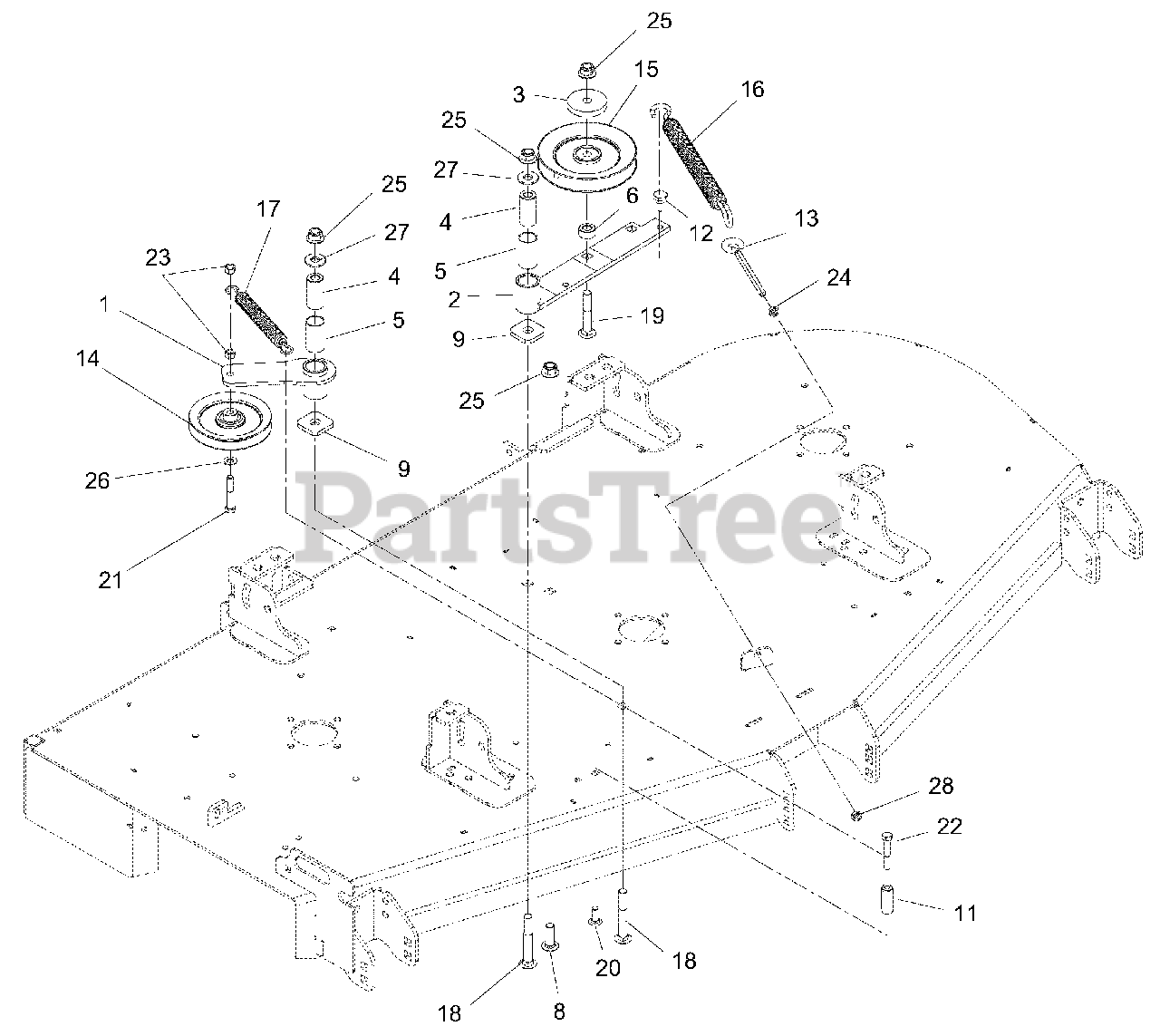

60" Belt Idlers Parts Diagram

  • Title

1

Gravely 03774151

WMT, IDLER PIVOT ARM

$51.99

$

In Stock, only 1 left!

0

2

Gravely 03774251

WMT, IDLER PIVOT ARM

$68.99

$

In Stock, only 1 left!

0

3

Gravely 00450100

CAP, IDLER BEARING SEALING

$14.99

$

In Stock, only 1 left!

0

4

Gravely 01581700

BSHG, SPCR .502X.997X2.03

$5.99

$

In Stock, Qty 20+

0

5

Gravely 05500123

BSHG, 1.00X1.125X1.937
(Superseded to 05501234)

$10.99

$

In Stock, Qty 20+

0

6

Gravely 05500905

BSHG, SPCR .502 X .997.50 PM

$11.99

$

In Stock, Qty 18

0

8

Gravely 06200006

BLT, RNHDSQSHNK 1/2-13 X 2.00 FULL

$5.99

$

In Stock, only 1 left!

0

9

Gravely 06400829

WSHR, -FLT.640X1.75X.250

$3.99

$

In Stock, only 2 left!

0

11

Gravely 06533500

NUT-HEX COUPLING

$3.99

$

In Stock, Qty 6

0

12

Gravely 07000034

BLT, SHLDR EP .38-16X.30 HEX

$3.99

$

In Stock, only 1 left!

0

13

Gravely 07001604

BOLT, .38-16X6.00 .62 DIA EYE

$6.99

$

Usually ships in 4-12 days

0

14

Gravely 07300526

SHV, .38" ID X 5.0’’ OD V-IDLER
(Superseded to 07351800)

$30.99

$

In Stock, Qty 20+

0

15

Gravely 07300527

SHEAVE, .50" ID X 6.00" OD V-IDLER

$53.99

$

In Stock, Qty 20+

0

16

Gravely 08300505

SPRG, EXTENSION

$25.99

$

In Stock, Qty 20+

0

17

Gravely 08300507

SPRG, EXT. .845 X 6.55
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

18

Gravely 06225000

BLT-RDHDSQNK .50-13X3.50 G5
(Superseded to 06200317)

$5.99

$

In Stock, Qty 20+

0

19

Gravely 06224900

BLT-RDHDSQNK .50-13X3.00 G5

$5.99

$

In Stock, Qty 19

0

20

Gravely 06212000

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

22

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06535900

NUT, 3/8-16 JAM GR5
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

28

Gravely 06537200

NUT-LK-CTR JAM .375-16
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0
