992231 (Pro-Turn 452) - Gravely Pro-Turn 52" Zero-Turn Mower, Kohler EFI (SN: 030000 - 039999) Deck Mount - 52 Inch Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kohler EFI

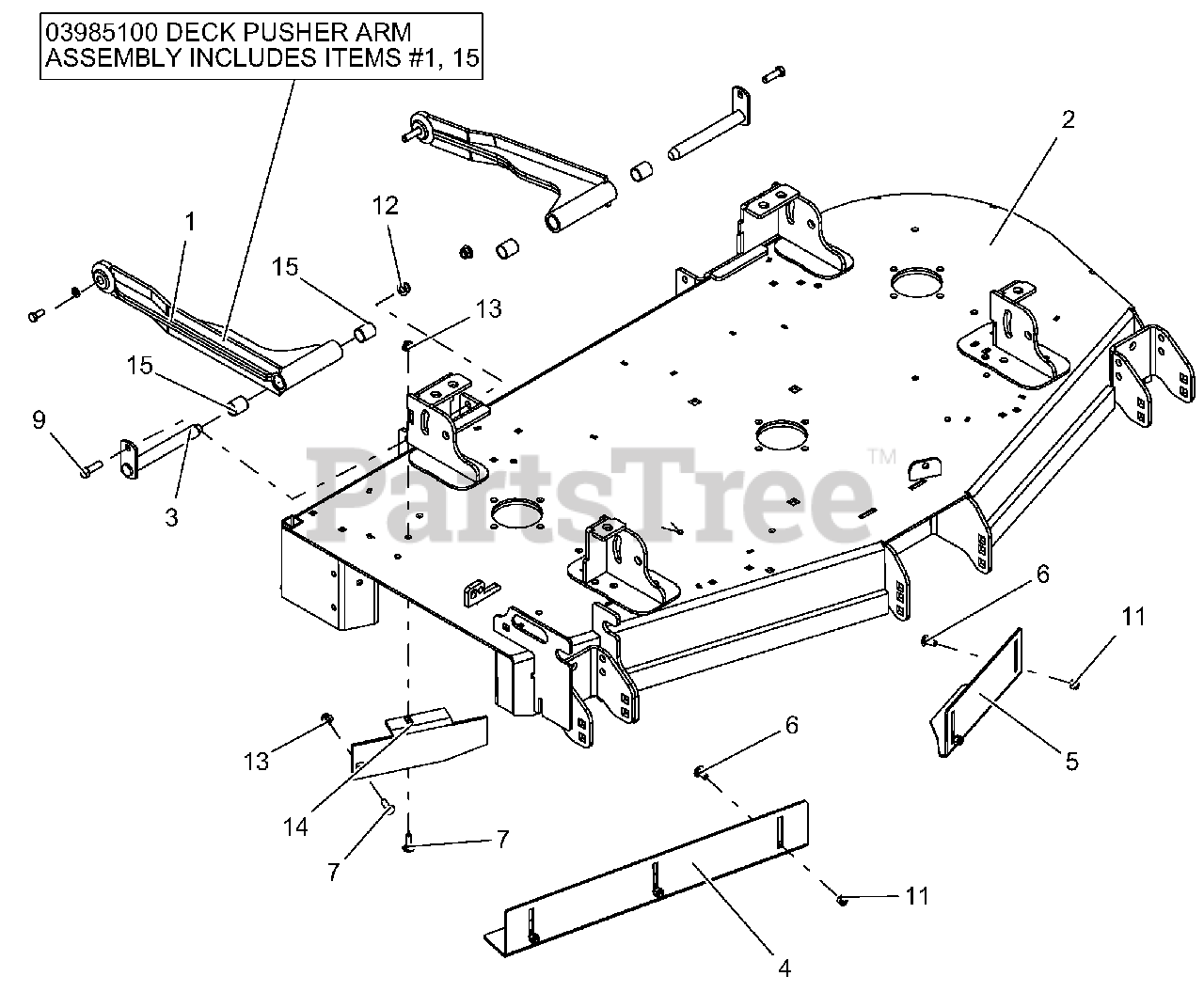

Deck Mount - 52 Inch Parts Diagram

  • Title

1

Gravely 03837151

WMT, DECK STABILIZER ARM-BLACK
(Superseded to 05253251)

$148.99

$

Usually ships in 4-12 days

0

2

Gravely 04547853

WLDMT, 52" PT200 SIDE DISCHARGE DECK-RED
(Superseded to 59220700)

$

$

Not available

3

Gravely 09238900

WLDMT, MOWER MTG. PIN

$61.99

$

Usually ships in 4-12 days

0

4

Gravely 00952851

BAFFLE, 52" RH VACUUM-BLACK
(Superseded to 05251751)

$43.99

$

Usually ships in 4-12 days

0

5

Gravely 00952951

BAFFLE, 52" LH VACUUM-BLACK
(Superseded to 05251851)

$36.99

$

In Stock, only 1 left!

0

6

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5 YWZC
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

7

Gravely 06216100

BLT-RDHDSQSHNK .31-18X1.00 G5 Y
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 00440853

BAFFLE, 52" DISCHARGE-RED

$37.99

$

Usually ships in 4-12 days

0

15

Gravely 05435900

BRG, .75 X .875 X 1.00

$5.99

$

In Stock, only 2 left!

0
