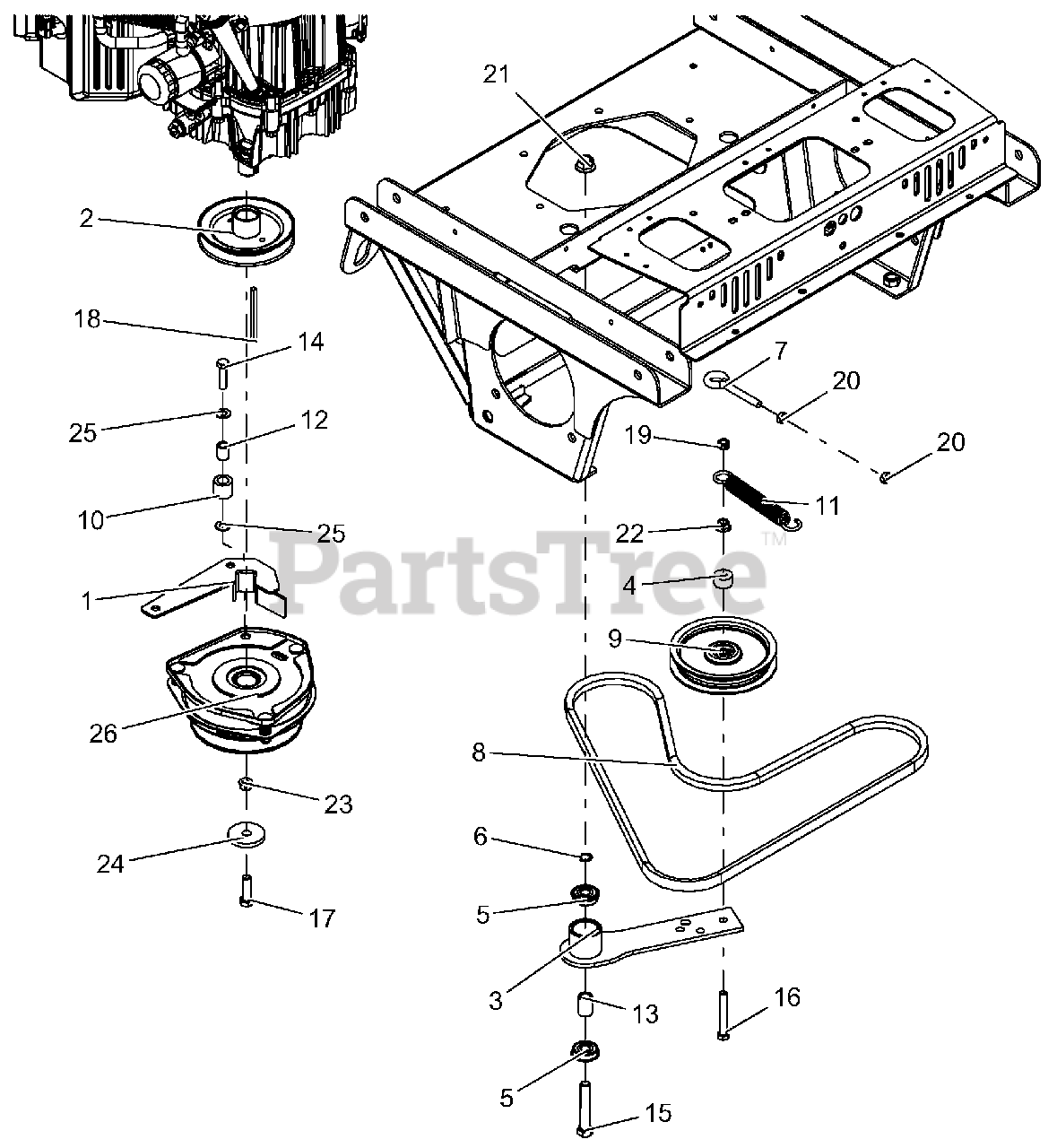

992231 (Pro-Turn 452) - Gravely Pro-Turn 52" Zero-Turn Mower, Kohler EFI (SN: 030000 - 039999) Clutch And Belt, Drive - Idler Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kohler EFI

Clutch And Belt, Drive - Idler Parts Diagram

  • Title

1

Gravely 03908851

WMT, CLUTCH STOP - BLACK

$51.99

$

In Stock, only 1 left!

0

2

Gravely 07340967

SHEAVE, ENGINE 1.127 ID X 5.250 OD-BLACK
(Superseded to 07340900)

$83.99

$

In Stock, only 1 left!

0

3

Gravely 09357351

WLDMT, HYDRO DRIVE IDLER ARM-BLACK
(Superseded to 09357300)

$52.99

$

Usually ships in 4-12 days

0

4

Gravely 03035100

SPACER .390X1.000X.562

$9.49

$

In Stock, only 1 left!

0

5

Gravely 05480000

BRG, BALL .501 X 1.38 X .438 SEALED

$13.99

$

In Stock, Qty 20+

0

6

Gravely 06400015

WASHER-FLAT-STL, .500 X .750 X .020

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07030000

BOLT, EYE .375-16

$7.99

$

Usually ships in 4-12 days

0

8

Gravely 07200515

BELT, B RAW COGGED

$58.99

$

In Stock, Qty 20+

0

9

Gravely 07300524

IDLER, FLAT 5.00 X 3.8
(Superseded to 07334500)

$80.99

$

In Stock, Qty 12

0

10

Gravely 07500007

BUMPER, RUBBER .62 X 1.0 X .88 LG

$5.99

$

In Stock, only 2 left!

0

11

Gravely 08300507

SPRG, EXTENSION
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

12

Gravely 08905500

BUSHING, SLV .407X.625X.813

$13.99

$

In Stock, only 1 left!

0

13

Gravely 09357700

SPACER, .510 X .750 X 1.148

$4.99

$

In Stock, Qty 7

0

14

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

15

Gravely 05959900

BLT-HEX .50-13X3.00 GR5 YWZC
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0

16

Gravely 05961400

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

17

Gravely 05900039

BLT-HEX .44-20X1.50 GR8 YWZC
(Superseded to 05902004)

$5.99

$

In Stock, Qty 5

0

18

Gravely 06600003

KEY-SQ .250X.250X3.50

$4.99

$

In Stock, Qty 7

0

19

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06535900

NUT, JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06542000

NUT, LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$6.99

$

In Stock, only 3 left!

0

25

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 00447100

CLUTCH-OGURA

$685.99

$

In Stock, only 1 left!

0
