992231 (Pro-Turn 452) - Gravely Pro-Turn 52" Zero-Turn Mower, Kohler EFI (SN: 000101 - 019999) Anti-Scalp Rollers Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kohler EFI

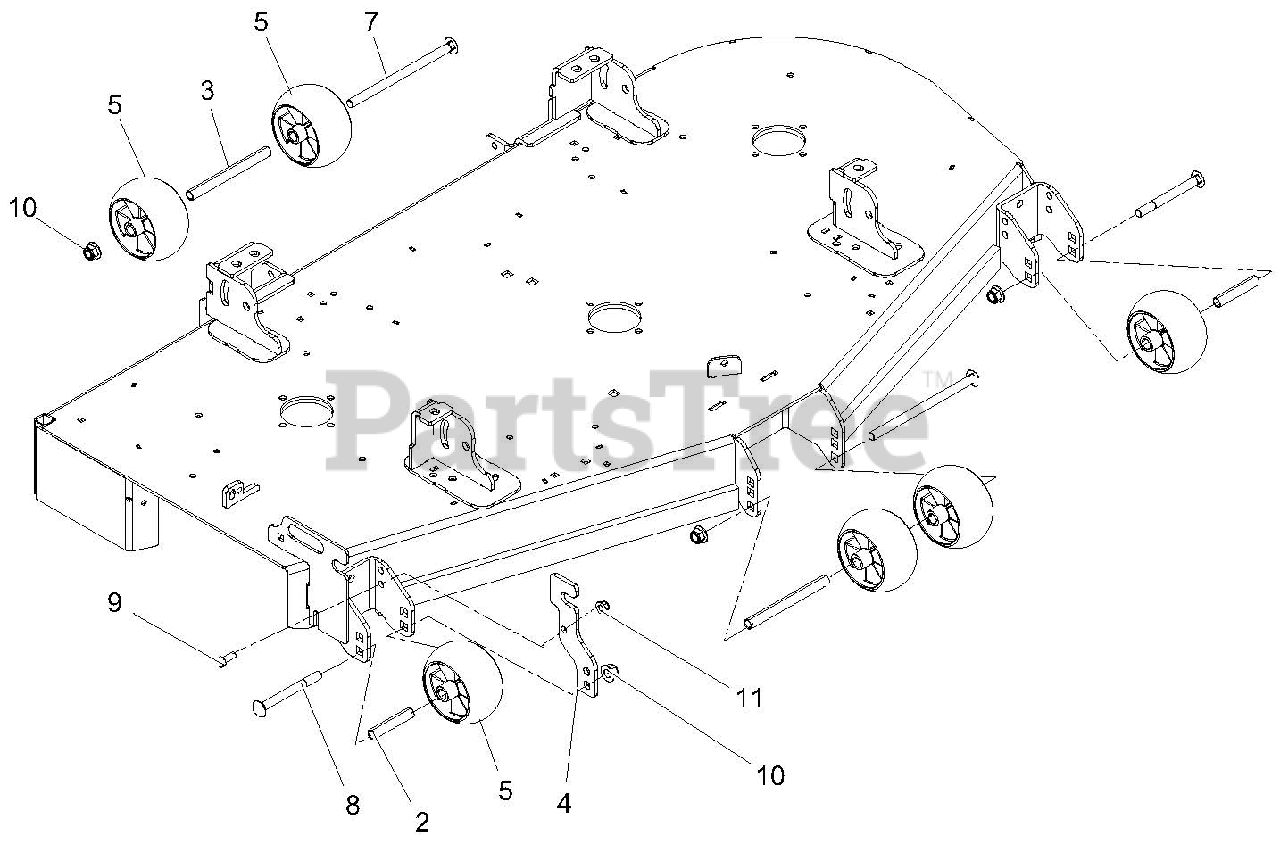

Anti-Scalp Rollers Parts Diagram

  • Title
2

Gravely 00473700

SPACER, .510X.625X3.35

$18.99

$

In Stock, Qty 20+

0

3

Gravely 00473800

SPACER, .510X.625X6.70

$21.99

$

In Stock, Qty 20+

0

4

Gravely 00474753

CHUTE STORAGE BRACKET

$28.99

$

Usually ships in 4-12 days

0

5

Gravely 03905900

ANTI-SCALP WHEEL - 5X3 CTR

$11.99

$

In Stock, Qty 20+

0

7

Gravely 06206400

BLT-RDHDSQNK .50-13X8.50
(Superseded to 06200321)

$6.99

$

In Stock, Qty 20+

0

8

Gravely 06225900

BLT-RDHDSQNK .50-13X5.00 G5
(Superseded to 06200505)

$5.99

$

Usually ships in 4-12 days

0

9

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0
