992227 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, CARB (SN: 031000 - 039999) Controls Parts Diagram

Pro-Turn 60" Zero-Turn Mower, CARB

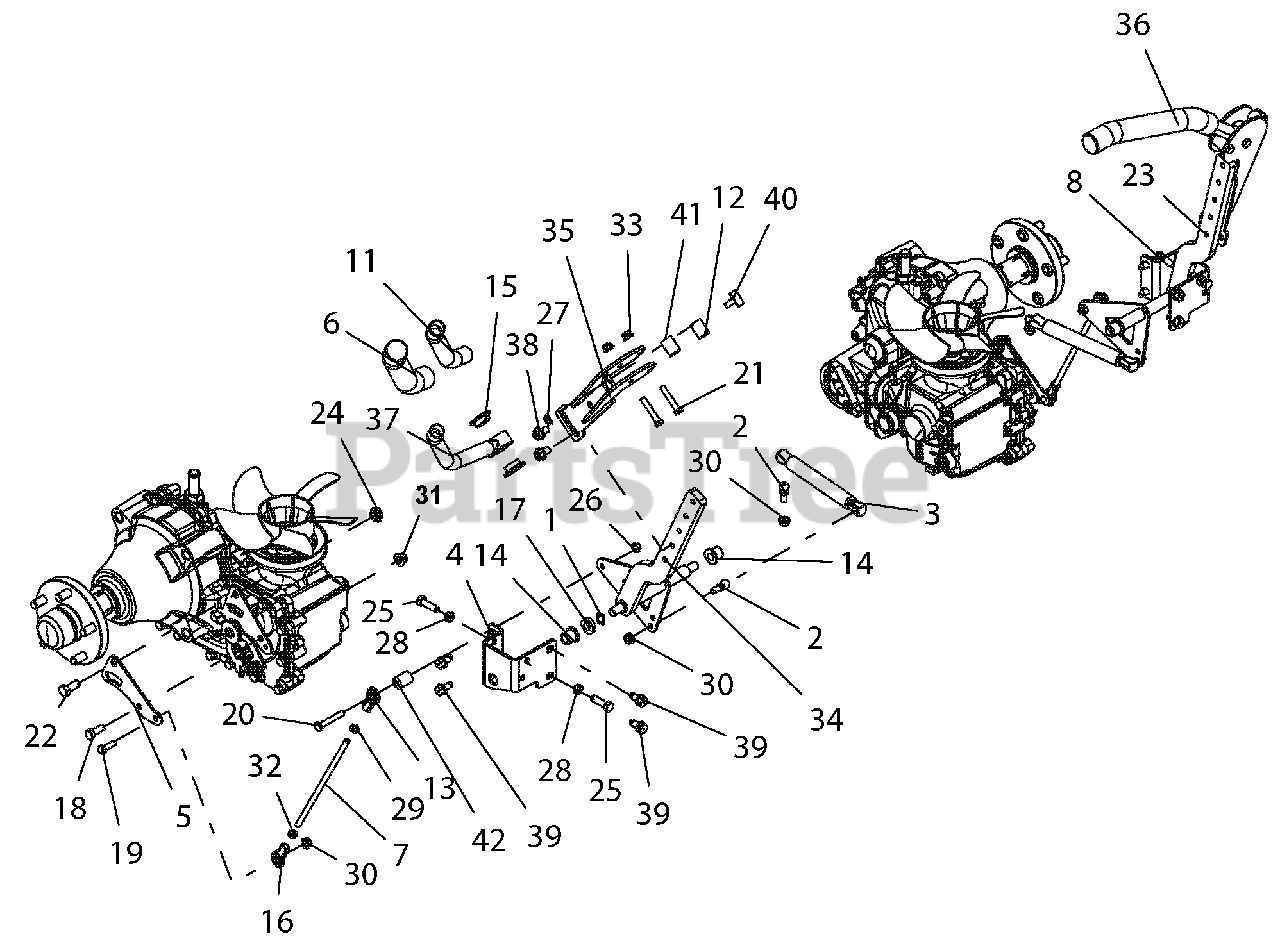

Controls Parts Diagram

  • Title

1

Gravely 00325400

WAVE WASHER .531X.781X.125 FH

$0.99

$

In Stock, Qty 20+

0

2

Gravely 03652200

STUD-BALL

$3.49

$

In Stock, only 3 left!

0

3

Gravely 03769800

DAMPER,
(Superseded to 09689700)

$39.99

$

In Stock, Qty 20+

0

4

Gravely 03885253

BRKT, RH CONTROL STOP

$64.99

$

Usually ships in 4-12 days

0

5

Gravely 03885451

BRKT., CONTROL MTG-BLACK

$17.99

$

Usually ships in 4-12 days

0

6

Gravely 03929100

GRIP, HANDLEBAR

$14.99

$

In Stock, only 1 left!

0

7

Gravely 03938500

ROD, STEERING

$9.99

$

Usually ships in 4-12 days

0

8

Gravely 03955053

BRKT, LH CONTROL STOP

$39.99

$

Usually ships in 4-12 days

0

11

Gravely 03988300

TUBE, .88ID X 1.00OD X 10.25

$14.99

$

In Stock, only 2 left!

0

12

Gravely 05500932

BSHG, ECCENTRIC .328 X .750 X .970

$1.49

$

In Stock, Qty 20+

0

13

Gravely 03787100

ALIGNABALL, 5/16 RH THREAD

$12.99

$

In Stock, only 2 left!

0

14

Gravely 05501001

BHSG-FLG .500X.750X.750X.125

$4.99

$

In Stock, Qty 20+

0

15

Gravely 05525200

BSHG, FLANGE .762 X 1.48 X .44 NYLON
(Superseded to 05501517)

$

$

Not available

16

Gravely 03787200

ALIGNABALL, 5/16 LH THREAD
(Superseded to 05298700)

$

$

Not available

17

Gravely 05532400

SPACER

$3.99

$

In Stock, only 2 left!

0

18

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 05957200

BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

22

Gravely 05958700

BLT-HEX .44-14X1.00 GR5 YWZC
(Superseded to 05901913)

$2.99

$

In Stock, only 1 left!

0

23

Gravely 04748100

WLDMT, LH LOWER CONTROL ARM

$68.99

$

Usually ships in 4-12 days

0

24

Gravely 06500009

NUT-LK-NYL-FLG .44-14 YWZC
(Superseded to 06500811)

$5.99

$

In Stock, only 1 left!

0

25

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 06535900

NUT, JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 06536700

NUT-JAM
(Superseded to 06500923)

$0.99

$

In Stock, Qty 13

0

30

Gravely 06543100

NUT, LK-TOP-FLG .312-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 06544300

NUT, JAM -LH .31-24 YWZC
(Superseded to 06501002)

$

$

Not available

33

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 04748200

WLDMT, RH LOWER CONTROL ARM

$77.99

$

In Stock, only 1 left!

0

35

Gravely 04748951

WLDMT, ADJUSTABLE STEERING HANDLE MOUNT (BLACK)

Note: (BLACK)

$

$

Not available

36

Gravely 09235500

WLDMT, LH HANDLE

$90.99

$

In Stock, only 1 left!

0

37

Gravely 09235600

WLDMT, RH HANDLE

$93.99

$

In Stock, only 1 left!

0

38

Gravely 07001707

BLT-SERHFWH .38-16X.62 YWZC
(Superseded to 07001716)

$

$

Not available

39

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

40

Gravely 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 1 left!

0

41

Gravely 09235400

SPACER, .328 X .76 X 1.01

$

$

Not available

42

Gravely 09235700

ECCENTRIC

$4.99

$

Usually ships in 4-12 days

0
