992222 (Pro-Ride 266) - Gravely Pro-Ride 66" Zero-Turn Mower, 31hp Kawasaki (SN: 000101 & Above) Steering Controls Parts Diagram

Pro-Ride 66" Zero-Turn Mower, 31hp Kawasaki

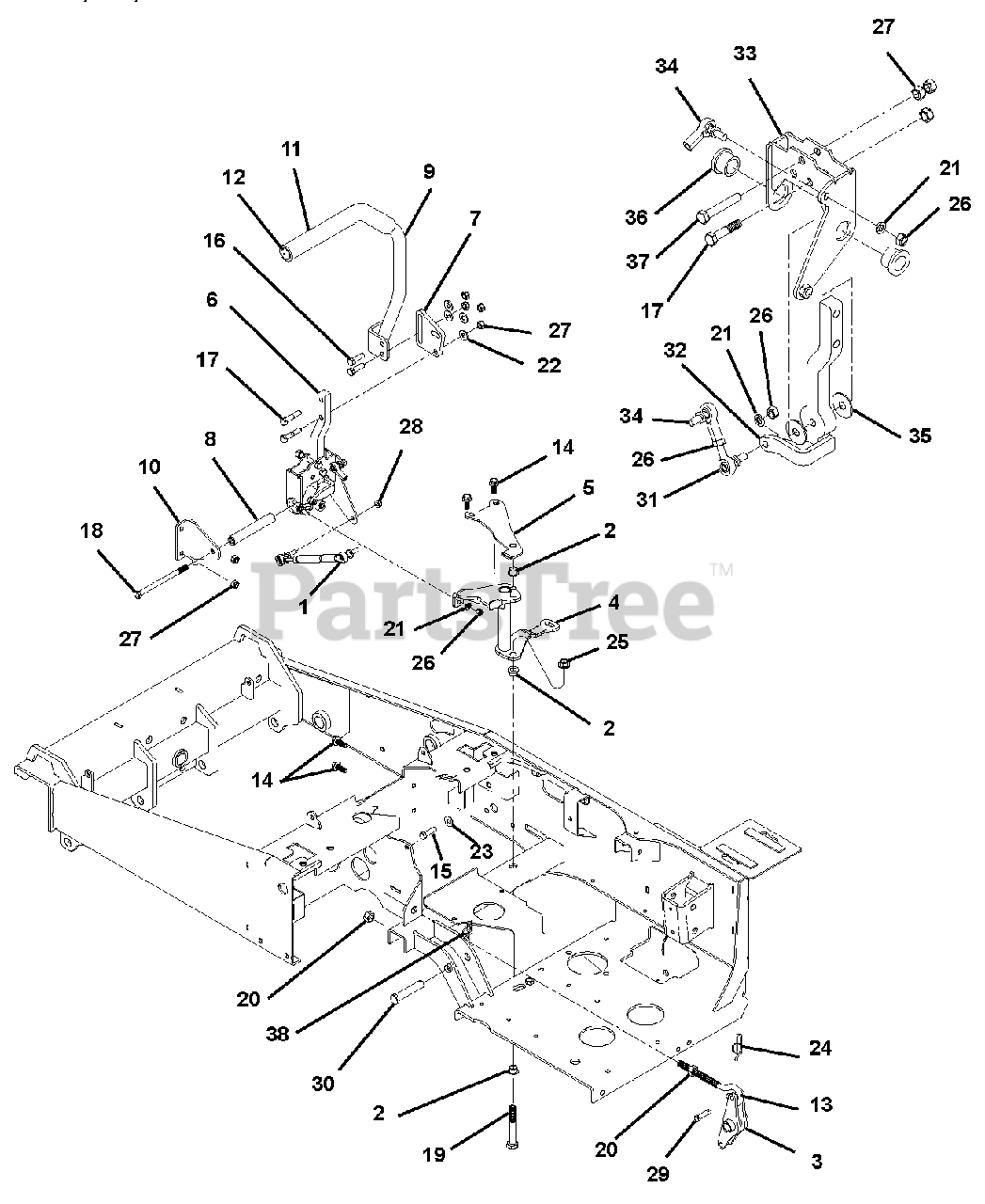

Steering Controls Parts Diagram

  • Title
1

Gravely 00180231

Dampner, Steering Control

$

$

Not available

2

Gravely 00180354

Bearing Shield 1/2"

$5.99

$

Usually ships in 4-12 days

0

3

Gravely 03814551

Spring Pivot Weldment

$47.99

$

Usually ships in 4-12 days

0

4

Gravely 03833751

Park Brake Control Arm RH

$93.99

$

Usually ships in 4-12 days

0

Gravely 03833951

Park Brake Control Arm LH

$93.99

$

Usually ships in 4-12 days

0

5

Gravely 03818951

Ear, RH Brake Pivot

$

$

Not available

Gravely 03819051

Ear, LH Brake Pivot

$

$

Not available

6

Gravely 03816151

Handle Assembly RH

$170.99

$

Usually ships in 4-12 days

0

Gravely 03816351

Handle Assembly LH

$178.99

$

Usually ships in 4-12 days

0

7

Gravely 03818251

Handle Height Plate

$

$

Not available

8

Gravely 00180543

Tube, Round .750 x .179 x 4.69

$

$

Not available

9

Gravely 03818051

Weldment, RH Steering Handle

$

$

Not available

Gravely 03818151

Weldment, LH Steering Handle

$

$

Not available

10

Gravely 03819251

Plate, Bent

$

$

Not available

11

Gravely 00180617

Grip, Foam (Serials 101 – 2499)

Note: (Serials 101 – 2499)

$37.99

$

In Stock, only 2 left!

0

Gravely 04311900

Grip, Foam (Serials 2500 and up)

Note: (Serials 2500 and up)

$

$

Not available

12

Gravely 00180639

Plug, 7/8" End (Serials 101 – 2499)

Note: (Serials 101 – 2499)

$

$

Not available

13

Gravely 00250356

Eyebolt, .5 x 6.9

$

$

Not available

14

Gravely 00960044

Bolt, 3/8-16 x 1.00 FGH 8

$2.49

$

Usually ships in 4-12 days

0

15

Gravely 05959400

Bolt, 3/8-16 x .750 Hex 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 05958000

Bolt, 3/8-16 x 1.25 Hex
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 05958500

Bolt, 3/8-16 x 1.75 Hex 5
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 05982000

Bolt, 3/8-16 x 5.50 Hex 5

$3.99

$

In Stock, only 2 left!

0

19

Gravely 05965500

Bolt 1/2-13 x 2.75
(Superseded to 05901720)

$4.99

$

Usually ships in 4-12 days

0

20

Gravely 06537300

Nut, 1/2-13 STD Hex
(Superseded to 06500814)

$3.99

$

Usually ships in 4-12 days

0

21

Gravely 06308600

Washer, Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06435700

Washer, Flat, Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06435900

Washer, Flat, Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 00967353

Ring, Rue .375 x .054 x 1.254

$2.49

$

Usually ships in 4-12 days

0

25

Gravely 06528200

Nut, Locking, Cone

$3.99

$

In Stock, only 3 left!

0

26

Gravely 06529500

Nut, 5/16-24 STD Hex
(Superseded to 06500939)

$1.99

$

Usually ships in 4-12 days

0

27

Gravely 06508000

Nut, Locking, Flange .375-16

$3.99

$

Usually ships in 4-12 days

0

28

Gravely 06549300

Nut, Locking Top M8-1.25 Crown

$2.49

$

Usually ships in 4-12 days

0

29

Gravely 06820300

Pin, CVS .375 x 1.38 x 1.14

$

$

Not available

30

Gravely 06823200

Pin, CVS .625 x 3.00 x 2.77

$5.99

$

Usually ships in 4-12 days

0

31

Gravely 00180249

Ball Joint RH 5/16 Male W/ STD

$

$

Not available

32

Gravely 03816151

Bar Weldment, RH Steering

$170.99

$

Usually ships in 4-12 days

0

Gravely 03816351

Bar Weldment, LH Steering

$178.99

$

Usually ships in 4-12 days

0

33

Gravely 03816251

Handle, Control Weldment, RH

$

$

Not available

Gravely 03816451

Handle, Control Weldment, LH

$

$

Not available

34

Gravely 00180606

Ball Joint, RH 5/16 Female W/STD

$

$

Not available

35

Gravely 00180961

Nylon Washer, 1.27 OD x .400 ID

$1.99

$

Usually ships in 4-12 days

0

36

Gravely 00252126

Bushing, .750 x 1.00 x .750

$

$

Not available

37

Gravely 05962900

Bolt, 3/8-16 x 2.25 Hex 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

38

Gravely 00967356

Ring, Rue .625 x .072 x 1.690

$3.49

$

Usually ships in 4-12 days

0
