992222 (Pro-Ride 266) - Gravely Pro-Ride 66" Zero-Turn Mower, 31hp Kawasaki (SN: 000101 & Above) ROPS Parts Diagram

Pro-Ride 66" Zero-Turn Mower, 31hp Kawasaki

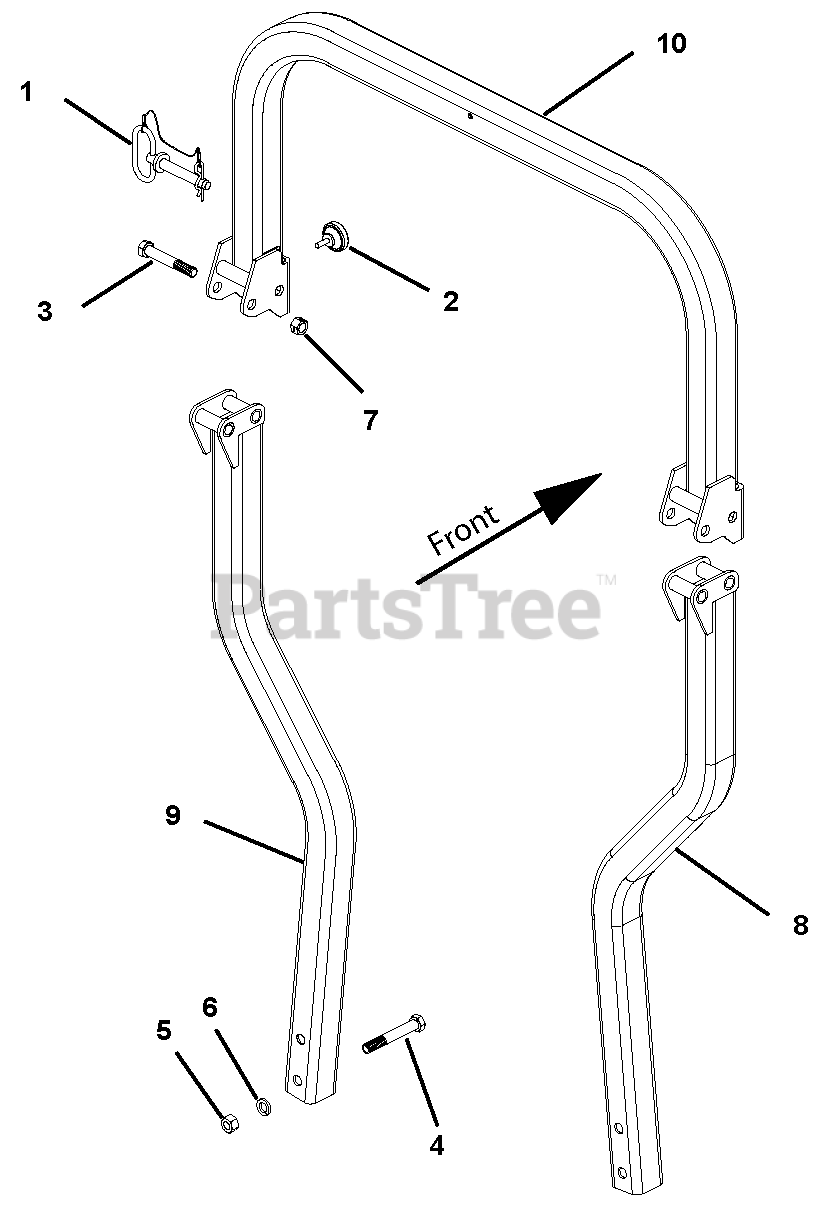

ROPS Parts Diagram

  • Title
1

Gravely 00181591

ROPS Lock Pin Assembly

$35.99

$

Usually ships in 4-12 days

0

2

Gravely 00181592

5/16 x 3/4" Round Knob

$7.99

$

In Stock, Qty 11

0

3

Gravely 05960000

1/2 x 3-1/4" Hex Bolt
(Superseded to 05901634)

$3.99

$

In Stock, only 1 left!

0

4

Gravely 05965800

1/2 x 3-1/2" Hex Bolt
(Superseded to 05901937)

$4.99

$

In Stock, only 1 left!

0

5

Gravely 06537300

1/2" Hex Nut
(Superseded to 06500814)

$3.99

$

In Stock, only 1 left!

0

6

Gravely 06307300

1/2" Spring Lock Washer
(Superseded to 06300115)

$1.49

$

In Stock, Qty 17

0

7

Gravely 06536300

1/2" Center Lock Nut
(Superseded to 06500827)

$3.99

$

In Stock, only 1 left!

0

8

NA

Right Side Base Weldment

$

$

Not available

9

NA

Left Side Base Weldment

$

$

Not available

10

NA

Center Tube Weldment

$

$

Not available
