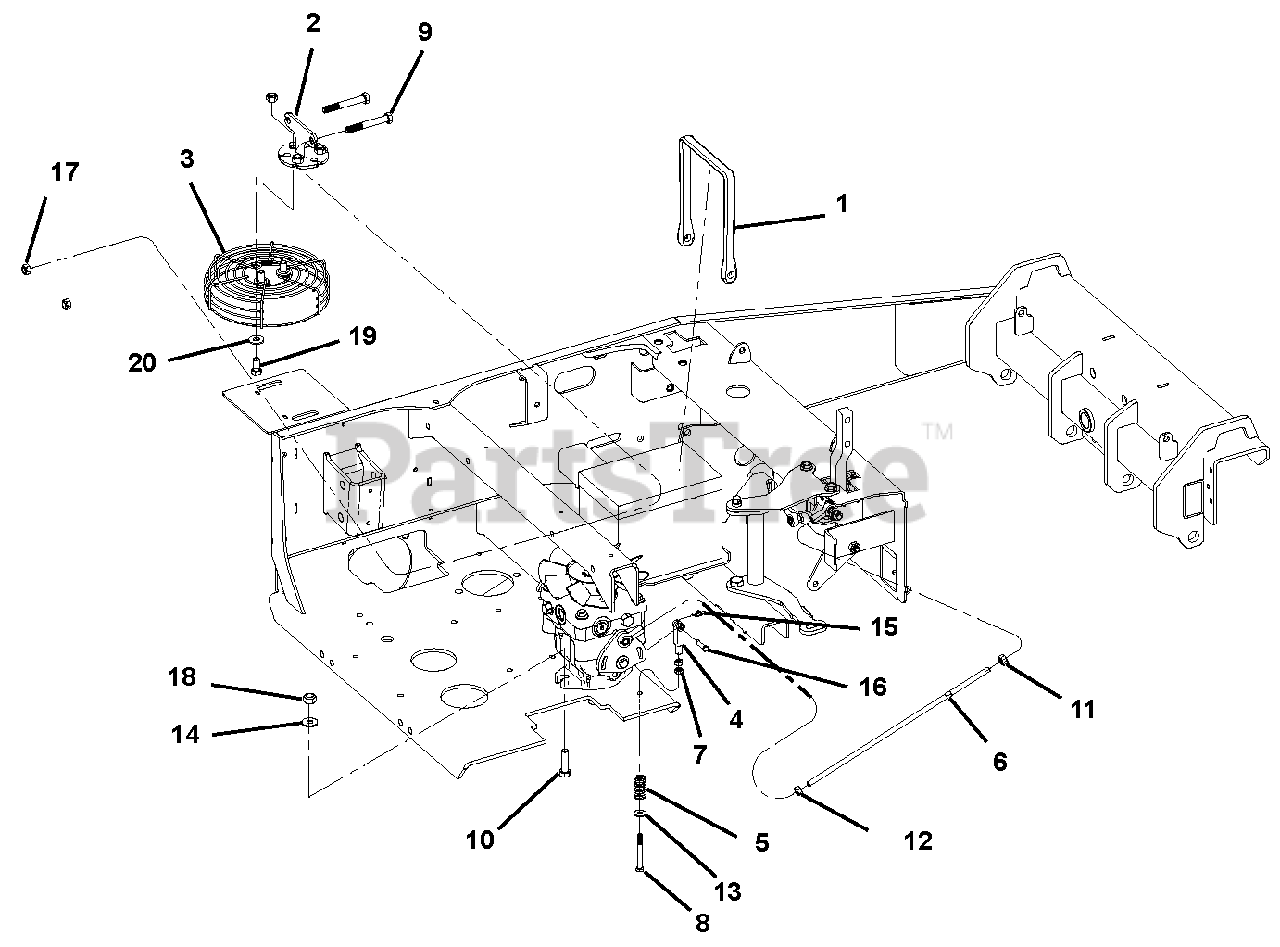

992222 (Pro-Ride 266) - Gravely Pro-Ride 66" Zero-Turn Mower, 31hp Kawasaki (SN: 000101 & Above) Pump Parts Diagram

Pro-Ride 66" Zero-Turn Mower, 31hp Kawasaki

Pump Parts Diagram

  • Title

1

Gravely 00181228

Band, 18"

$

$

Not available

2

Gravely 03799751

Weldment, Fan Shield Mounting

$

$

Not available

3

Gravely 00181341

Grill, 7" Fan

$35.99

$

Usually ships in 4-12 days

0

4

Gravely 00180956

Yoke, 1/4-20 RH Adjustable

$

$

Not available

5

Gravely 00180957

Spring, Compression .784 x .092 x

$3.49

$

Usually ships in 4-12 days

0

6

Gravely 00180967

Pump Control Rod

$

$

Not available

7

Gravely 06531000

Nut, Locking, Nylon .250-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

8

Gravely 00967393

Bolt, 1/4-20 x 2.75 SOC 8

$3.49

$

Usually ships in 4-12 days

0

9

Gravely 05961400

Bolt, 3/8-16 x 2.75 Hex 5
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

10

Gravely 05962800

Bolt, 7/16-14 x 1.50 Hex
(Superseded to 05901633)

$3.49

$

In Stock, Qty 11

0

11

Gravely 06529500

Nut, 5/16-24 STD Hex
(Superseded to 06500939)

$1.99

$

Usually ships in 4-12 days

0

12

Gravely 06547200

Nut, 5/16-24 Hex LH

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 06435800

Washer, Flat, Steel .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06435900

Washer, Flat Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 00967350

Ring, Rue .250 x .041 x .844

$

$

Not available

16

Gravely 06818500

Pin, CVS .250 x 1.00 x .859

$3.99

$

Usually ships in 4-12 days

0

17

Gravely 06508000

Nut, Locking, Flange .375-16

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 06508200

Nut, Locking, Crown .437-14

$3.99

$

Usually ships in 4-12 days

0

19

Gravely 05959400

Bolt, .38-16 x .750 Hex
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06435700

Washer, Flat, Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0
