992222 (Pro-Ride 266) - Gravely Pro-Ride 66" Zero-Turn Mower, 31hp Kawasaki (SN: 000101 & Above) Mower Deck Lift Parts Diagram

Pro-Ride 66" Zero-Turn Mower, 31hp Kawasaki

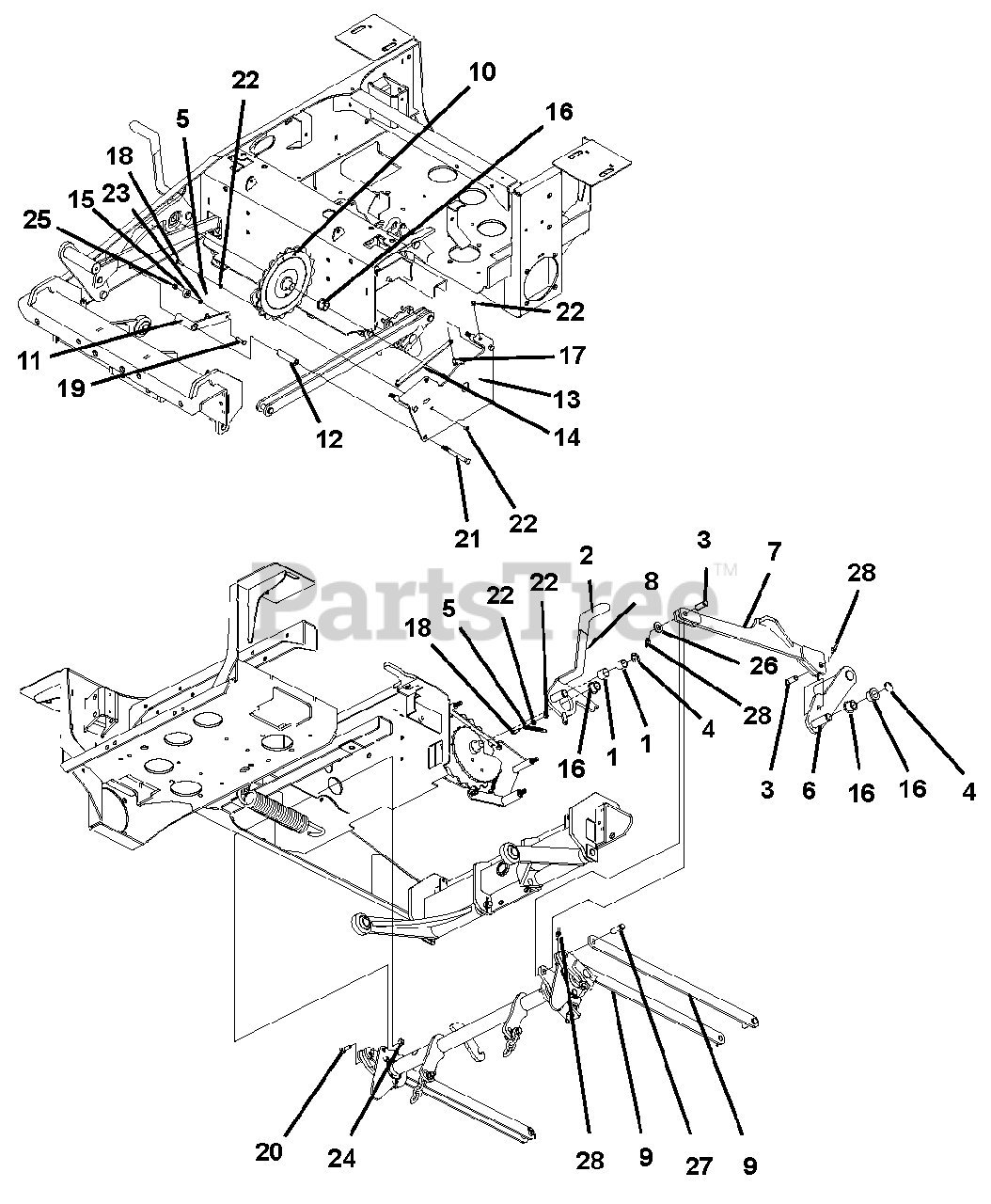

Mower Deck Lift Parts Diagram

  • Title

1

Gravely 00105546

Bearing, Sleeve .753 x .878 x .750

$6.99

$

In Stock, only 4 left!

0

2

Gravely 00105593

Grip, Rubber Lever

$

$

Not available

3

Gravely 06821600

Pin, Clevis .500 x 1.25 x 1.02 Y

$3.99

$

In Stock, only 1 left!

0

4

Gravely 05700134

E-Ring, .750 x .050

$2.99

$

Usually ships in 4-12 days

0

5

Gravely 00135292

Spring, EXT .375 x .055 x 2.25

$20.99

$

Usually ships in 4-12 days

0

6

Gravely 03814251

Weldment, Foot Arm

$97.99

$

Usually ships in 4-12 days

0

7

Gravely 03814151

Weldment, Foot Connector

$

$

Not available

8

Gravely 03814351

Weldment, Transportation Lock

$52.99

$

Usually ships in 4-12 days

0

9

Gravely 03814451

Plate, Connector Link

$53.99

$

Usually ships in 4-12 days

0

10

Gravely 00181261

Assembly, Cam Control w/Decals S/O

$

$

Not available

11

Gravely 00181338

Weldment, Arm

$36.99

$

Usually ships in 4-12 days

0

12

Gravely 00181389

Tube, .625 x .120 x 2.53

$

$

Not available

13

Gravely 03799953

Plate, HOC Indicator

$77.99

$

Usually ships in 4-12 days

0

14

Gravely 03800053

Plate, Finger Guard

$20.99

$

Usually ships in 4-12 days

0

15

Gravely 00191185

Bearing, Ball .250 x .688 x 313

$9.49

$

Usually ships in 4-12 days

0

16

Gravely 00252126

Bushing, .750 x 1.00 x .750

$

$

Not available

17

Gravely 05947900

Bolt, 1/4-20 x .500 HEX 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 05946800

Bolt, 1/4-20 x .750 HEX 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 05947700

Bolt, 1/4-20 x 1.00 HEX 5
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

20

Gravely 05948700

Bolt, .38-16 x 1.00 HEX 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 05960900

Bolt, 3/8-16 x 3.50 HEX 5
(Superseded to 05901818)

$3.99

$

In Stock, Qty 20+

0

22

Gravely 06533200

Nut, 1/4-20 STD HEX
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

23

Gravely 06449100

Washer, Flat, Steel M6 7 x 13 x 1.5

$

$

Not available

24

Gravely 06508000

Nut, Locking, Flange .375-16

$3.99

$

Usually ships in 4-12 days

0

25

Gravely 06531000

Nut, Locking, Nylon .250-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

26

Gravely 06441900

Washer, Flat, Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 06821700

Pin, Clevis .500 x 1.50 x 1.27

$3.99

$

Usually ships in 4-12 days

0

28

Gravely 00967354

Ring, Rue .500 x .062 x 1.420

$3.49

$

Usually ships in 4-12 days

0
