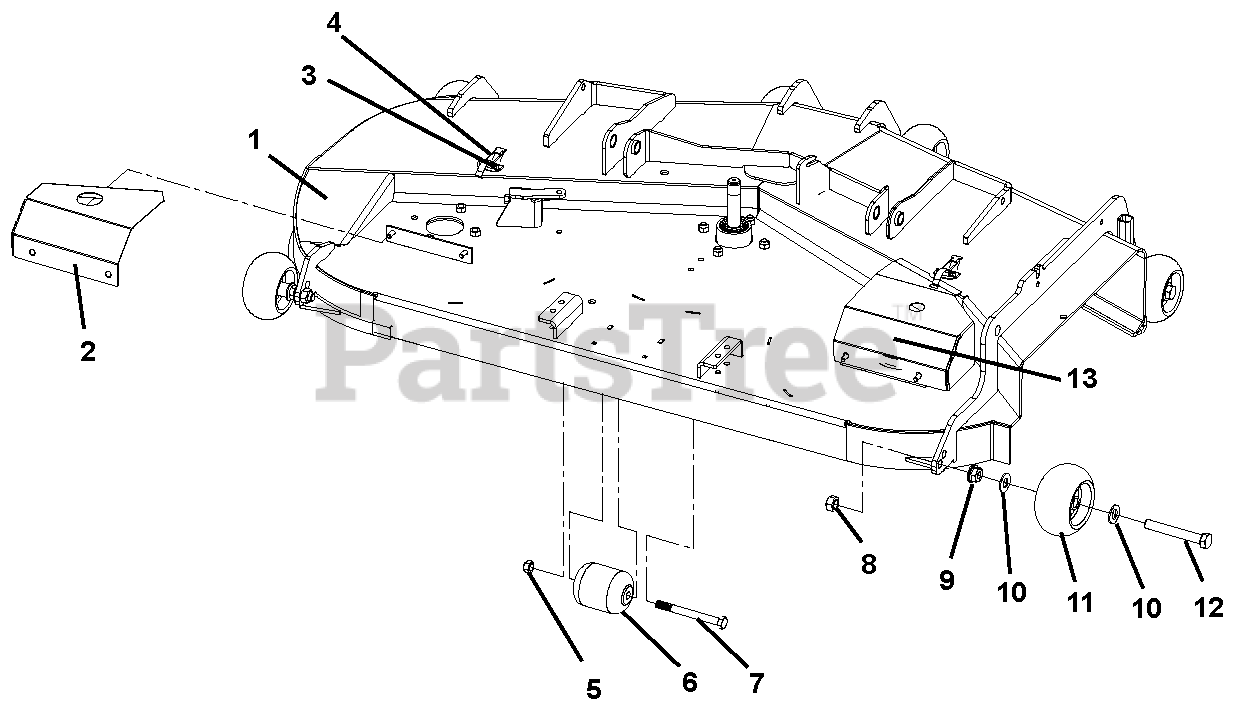

992222 (Pro-Ride 266) - Gravely Pro-Ride 66" Zero-Turn Mower, 31hp Kawasaki (SN: 000101 & Above) Mower Deck, Anti-Scalp Wheels and Belt Covers Parts Diagram

Pro-Ride 66" Zero-Turn Mower, 31hp Kawasaki

Mower Deck, Anti-Scalp Wheels and Belt Covers Parts Diagram

  • Title

1

Gravely 56496004

Assembly, 54" Deck w/Decals

$

$

Not available

Gravely 56496005

Assembly, 60" Deck w/Decals

$1758.99

$

Usually ships in 4-12 days

0

Gravely 56496006

Assembly, 66" Deck w/Decals

$

$

Not available

2

Gravely 03799253

Shield, Deck LH Belt - 60"

$59.99

$

In Stock, only 1 left!

0

Gravely 03821953

Shield, Deck LH Belt - 66"

$51.99

$

Usually ships in 4-12 days

0

3

Gravely 00180501

Latch, Overcenter

$11.99

$

Usually ships in 4-12 days

0

4

Gravely 00104834

Rivet, Pop .753 x .878 x .750

$3.49

$

Usually ships in 4-12 days

0

5

Gravely 06528200

Nut, Locking, Cone

$3.99

$

In Stock, only 3 left!

0

6

Gravely 00161573

Roller, Ø3.00 x 3.88

$59.99

$

Usually ships in 4-12 days

0

7

Gravely 05962900

Bolt, Hex .38-16 x 2.25
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

8

Gravely 06518700

Nut, Locking, Top .62-11 (ND)

Note: (ND)

$3.99

$

In Stock, Qty 6

0

9

Gravely 06500509

SRATD Flange Hex Nut 518-11

$3.99

$

In Stock, only 3 left!

0

10

Gravely 06442800

Washer, Flat, Steel .656 x 1.31 x .095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 00162701

Wheel, Gauge - Ø5.00 x 2.76

$13.99

$

In Stock, only 3 left!

0

12

Gravely 05983100

Bolt, 5/8-11 x 4.25 Hex 5

$6.99

$

In Stock, only 4 left!

0

13

Gravely 03799153

Shield, RH 54" and 60" Belt (992220, 221)

Note: (992220, 221)

$71.99

$

In Stock, only 1 left!

0

Gravely 03822053

Shield, RH 66" Belt (992222)

Note: (992222)

$45.99

$

Usually ships in 4-12 days

0
