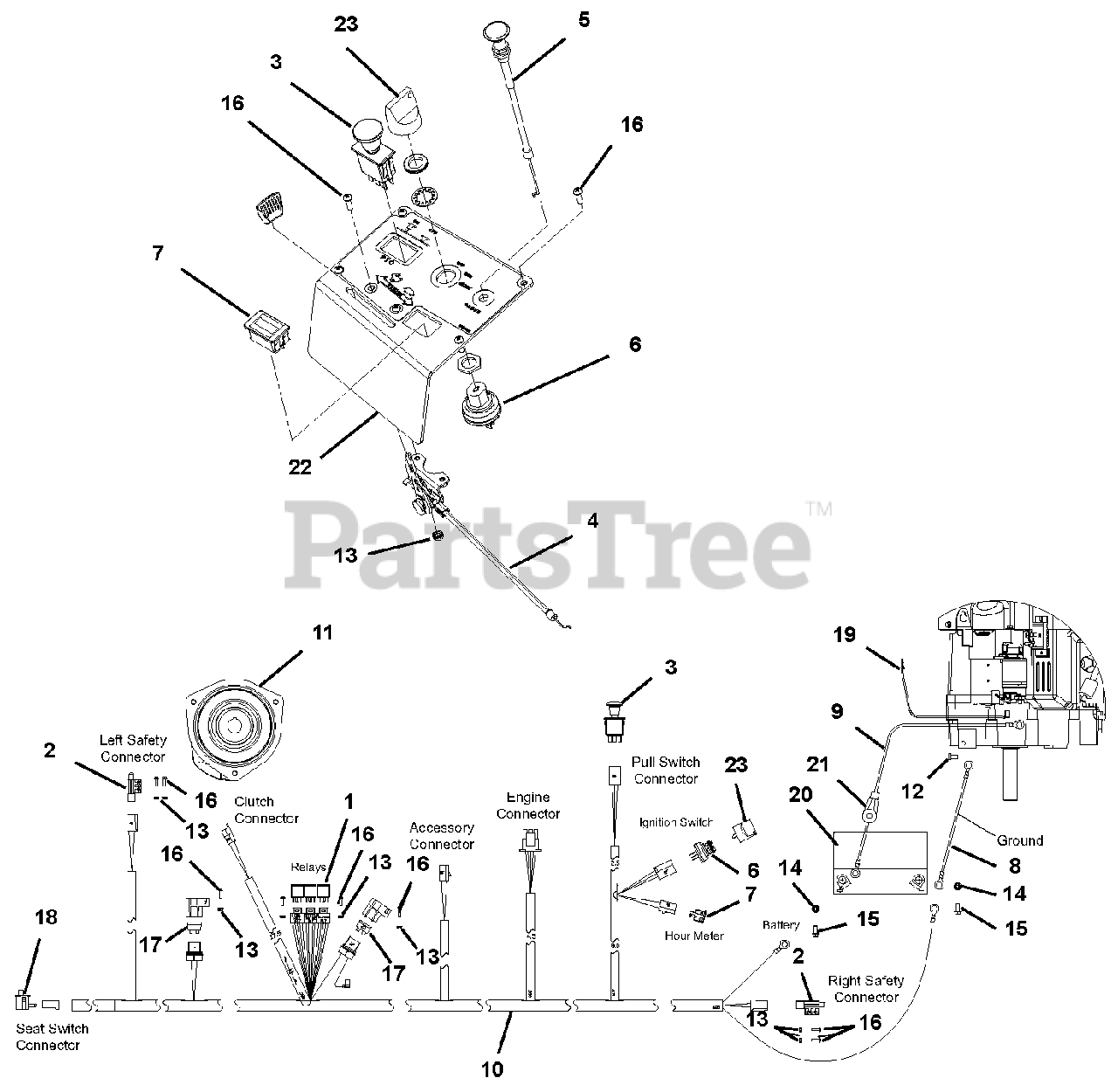

992222 (Pro-Ride 266) - Gravely Pro-Ride 66" Zero-Turn Mower, 31hp Kawasaki (SN: 000101 & Above) Electrical System Parts Diagram

Pro-Ride 66" Zero-Turn Mower, 31hp Kawasaki

Electrical System Parts Diagram

  • Title

1

Gravely 00102770

Relay, ISO Mini Electric

$21.99

$

Usually ships in 4-12 days

0

2

Gravely 00191256

Switch, Plunger
(Superseded to 08828100)

$20.99

$

In Stock, only 1 left!

0

3

Gravely 00136574

Switch, Clutch (Serials 101 – 2499)

Note: (Serials 101 – 2499)

$28.99

$

In Stock, only 1 left!

0

3

Gravely 04311800

Switch, Clutch (Serials 2500 and up)

Note: (Serials 2500 and up)

$45.99

$

In Stock, only 1 left!

0

4

Gravely 03858700

Cable, Pro-Control Throttle (Serials 101 – 2499)

Note: (Serials 101 – 2499)

$59.99

$

Usually ships in 4-12 days

0

4

Gravely 06900412

Cable, Pro-Control Throttle (Serials 2500 and up)

Note: (Serials 2500 and up)

$62.99

$

In Stock, only 1 left!

0

5

Gravely 00180273

Cable, Pro-Control Choke (Serials 101 – 2499)

Note: (Serials 101 – 2499)

$52.99

$

In Stock, only 1 left!

0

5

Gravely 06900411

Cable, Pro-Control Choke (Serials 2500 and up)

Note: (Serials 2500 and up)

$51.99

$

In Stock, only 2 left!

0

5

Gravely 07500132

KNOB-CONTROL-BLACK .38-16 X .50

Note: NOT SHOWN

$11.99

$

In Stock, Qty 10

0

6

Gravely 00464000

Switch, Ignition (Includes item 23)
(Superseded to 04331600)

Note: (Includes item 23)

$45.99

$

In Stock, Qty 20+

0

7

Gravely 00192296

Meter, Hour-LCD ALT (Serials 101 – 2499)

Note: (Serials 101 – 2499)

$

$

Not available

7

Gravely 03966800

Meter, Hour-LCD ALT (Serials 2500 and up)
(Superseded to 09497400)

Note: (Serials 2500 and up)

$23.99

$

In Stock, only 3 left!

0

8

Gravely AA201019

Cable, Battery - 25" Ground

$22.99

$

Usually ships in 4-12 days

0

9

Gravely 03821000

Cable, Battery - 42" Positive

$

$

Not available

10

Gravely 03798600

Harness, Wiring

$

$

Not available

11

Gravely 00180923

Clutch, Electric - OGURA, GT3

$517.99

$

Usually ships in 4-12 days

0

12

Gravely 00961281

Bolt, M8 x 1.25 x14 Hex 8.8
(Superseded to 05970001)

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 00130923

Locknut, 10-24 KEPS (Serials 101 – 2499)
(Superseded to 06500704)

Note: (Serials 101 – 2499)

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 06536000

Locknut, 10-24 KEPS (Serials 2500 and up)
(Superseded to 06500915)

Note: (Serials 2500 and up)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06530100

Nut, Locking, Flange .25-20
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06006127

Bolt, 1/4-20 x .625 WSH

$

$

Not available

16

Gravely 00967340

Screw, Hex, Flange .25-20 x .625

$

$

Not available

16

Gravely 06100211

Screw, Machine 10-24 x .38 HWH Stainless (Serials 2500 and up)

Note: (Serials 2500 and up)

$2.99

$

In Stock, Qty 11

0

16

Gravely 06116700

Screw, Machine 10-24 x .50 HWH (Serials 2500 and up)
(Superseded to 05901825)

Note: (Serials 2500 and up)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 00191262

Fuse, 20 AMP Blade S/O

$14.99

$

In Stock, only 1 left!

0

18

Gravely 02754100

Seat Switch

$9.49

$

In Stock, Qty 20+

0

19

Gravely 03286700

Lead, Starter Solenoid

$9.49

$

Usually ships in 4-12 days

0

20

Gravely 00181779

Battery, 12V

$

$

Not available

21

Gravely 00525800

Battery Terminal Boot, Red

$7.99

$

Usually ships in 4-12 days

0

22

Gravely 03816551

Control Panel (Serials 101 – 2499)

Note: (Serials 101 – 2499)

$

$

Not available

22

Gravely 03961651

Control Panel (Serials 2500 and up)

Note: (Serials 2500 and up)

$51.99

$

Usually ships in 4-12 days

0

23

Gravely 09287000

Key, w/Shield

$14.99

$

In Stock, Qty 20+

0
