992222 (Pro-Ride 266) - Gravely Pro-Ride 66" Zero-Turn Mower, 31hp Kawasaki (SN: 000101 & Above) Deck Mount Parts Diagram

Pro-Ride 66" Zero-Turn Mower, 31hp Kawasaki

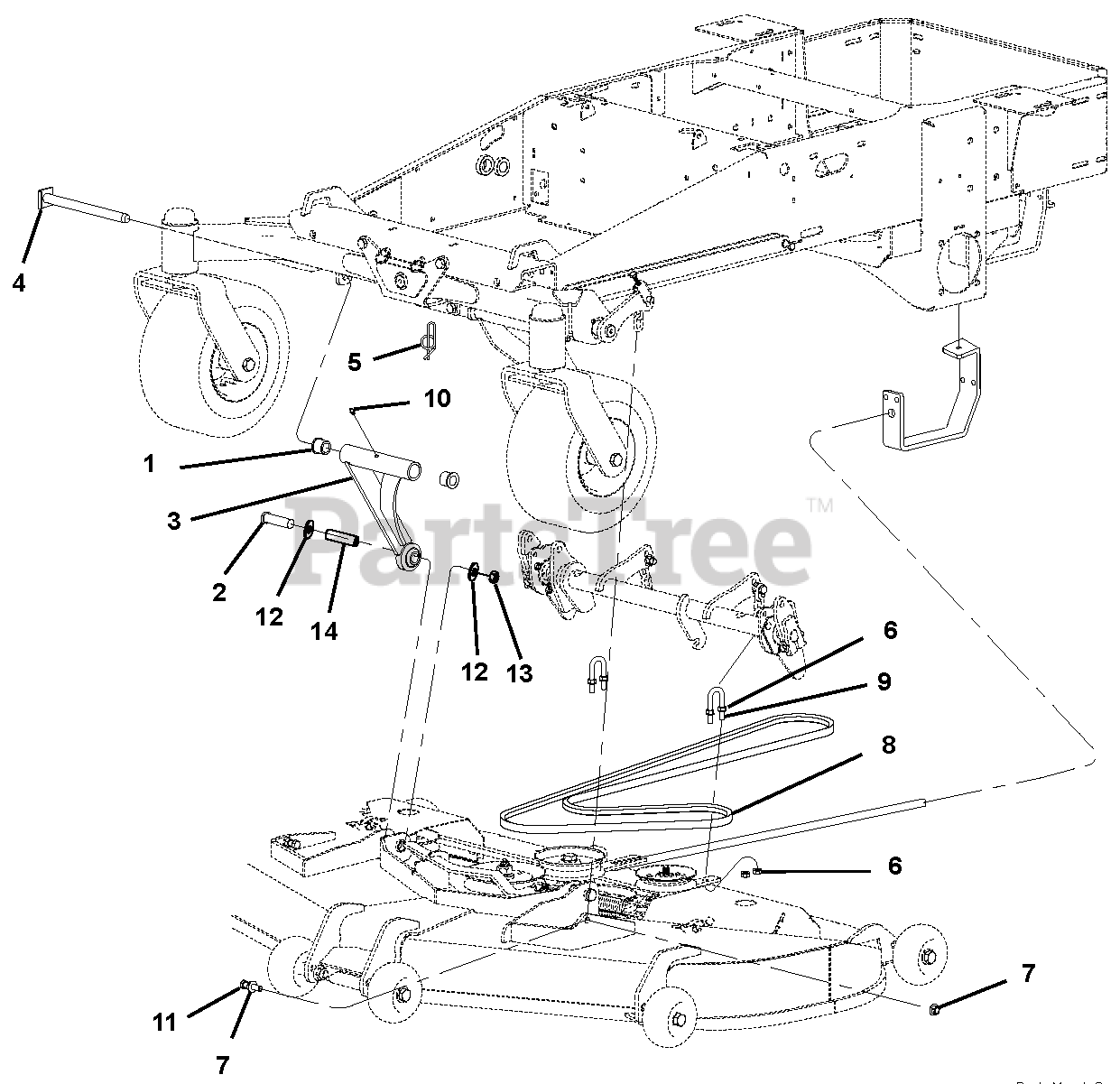

Deck Mount Parts Diagram

  • Title

1

Gravely 00150079

Bushing, 3/4 I.D.

$9.49

$

Usually ships in 4-12 days

0

2

Gravely 05965800

Bolt, .50-13 x 3.50 Hex 5
(Superseded to 05901937)

$4.99

$

In Stock, only 2 left!

0

3

Gravely 03814051

Weldment, Deck Pull 11.5

$196.99

$

Usually ships in 4-12 days

0

4

Gravely 00180224

Weldment, Drag Link Pin

$

$

Not available

5

Gravely 00967357

Ring, Rue .750 x .080 x 2.081

$

$

Not available

6

Gravely 06534900

Nut, Spin Lock, Flange .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06530004

Locknut, 7/16-14 Whiz

$2.49

$

Usually ships in 4-12 days

0

8

Gravely 00181715

Belt, B112 Kevlar (Clutch to Deck)

Note: (Clutch to Deck)

$80.99

$

Usually ships in 4-12 days

0

9

Gravely 00181485

U-Bolt Special

$11.99

$

Usually ships in 4-12 days

0

10

Gravely 00959995

Fitting, 1/4-28 Straight Grease Zerk

$3.49

$

Usually ships in 4-12 days

0

11

Gravely 05982100

Bolt, 7/16-14 x 1-3/4
(Superseded to 05901828)

$3.49

$

Usually ships in 4-12 days

0

12

Gravely 06442000

Washer, Flat, Steel .563 x 1.38 x .109
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

13

Gravely 06528200

Nut, Locking, Cone

$3.99

$

In Stock, only 3 left!

0

14

Gravely 03856600

Tube, RD .750 x .125W x 2.469

$18.99

$

Usually ships in 4-12 days

0
