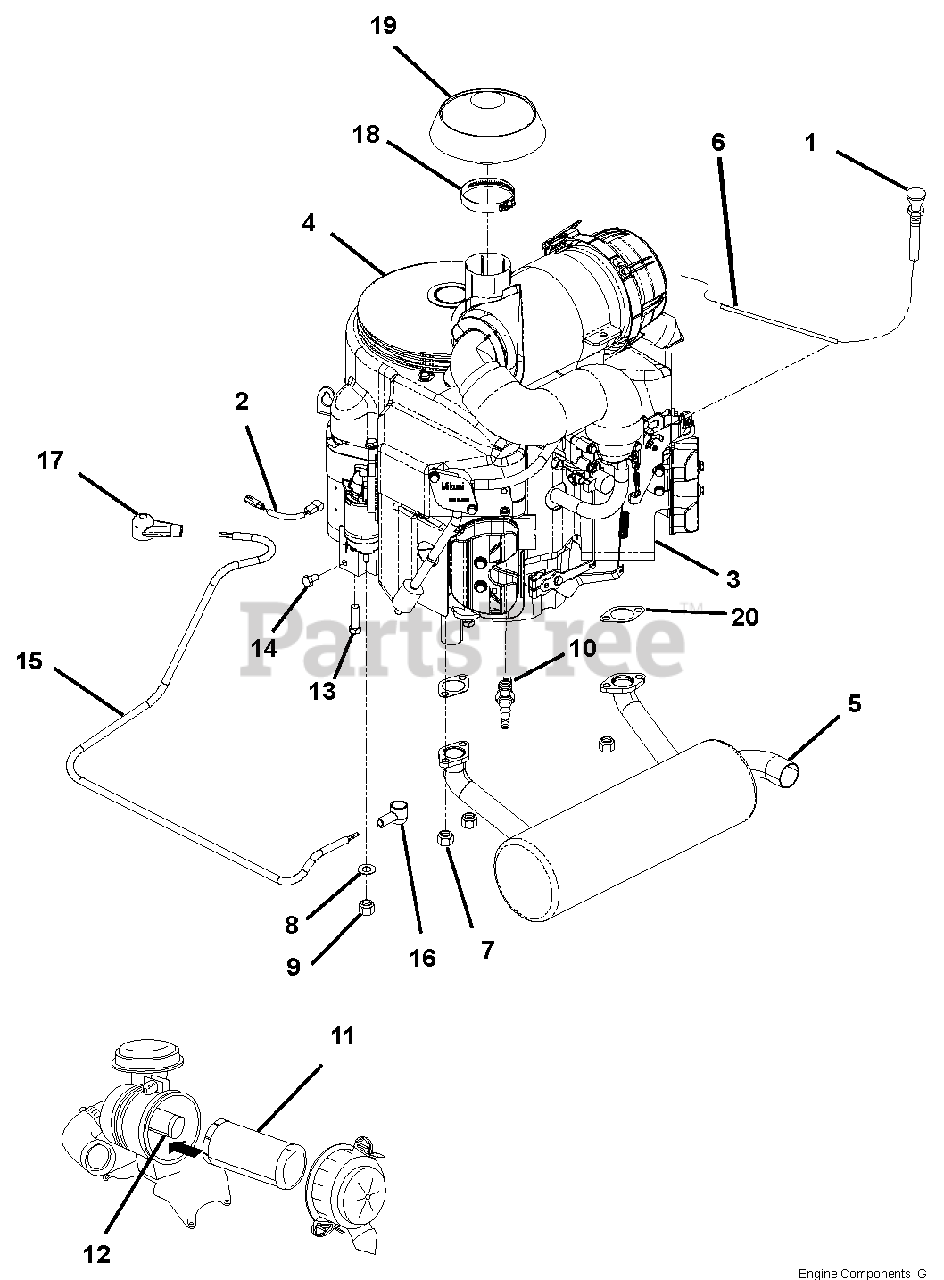

992220 (Pro-Ride 254) - Gravely Pro-Ride 54" Zero-Turn Mower, 27hp Kawasaki (SN: 000101 & Above) Engine and Exhaust Parts Diagram

Pro-Ride 54" Zero-Turn Mower, 27hp Kawasaki

Engine and Exhaust Parts Diagram

  • Title

1

Gravely 06900411

Cable, Pro-Control Throttle (Serials 101 – 2499)

Note: (Serials 101 – 2499)

$51.99

$

In Stock, only 2 left!

0

1

Gravely 07500132

KNOB-CONTROL-BLACK .38-16 X .50

Note: NOT SHOWN

$11.99

$

In Stock, Qty 8

0

2

Gravely 03286700

Lead, Starter Solenoid

$9.49

$

Usually ships in 4-12 days

0

3

Gravely 21535800

Oil Filter
(Superseded to 49065-0724)

$18.99

$

In Stock, Qty 20+

0

4

Gravely 08200327

Engine, Kawasaki 27 HP

$

$

Not available

4

Gravely 08200328

Engine, Kawasaki 31 HP

$

$

Not available

5

Gravely 01057000

Muffler, Kawasaki Horizontal

$252.99

$

Usually ships in 4-12 days

0

6

Gravely 03798600

Wire Harness, Kawasaki (see page 26-27)

Note: (see page 26-27)

$

$

Not available

7

Gravely 21549901

Nut, Exhaust Man. Subaru EH

$

$

Not available

8

Gravely 06318200

Washer, M8 Spring Lock

$0.99

$

Usually ships in 4-12 days

0

9

Gravely 00961553

Nut, M8 x 1.25 Hex Grade 8.8
(Superseded to 06538600)

$

$

Not available

10

Gravely 21536100

Spark Plug

$3.49

$

In Stock, Qty 11

0

11

Gravely 21545400

Filter, Outer Air

$36.99

$

In Stock, Qty 20+

0

12

Gravely 21545300

Filter, Inner Air

$48.99

$

In Stock, Qty 13

0

13

Gravely 05900125

Bolt, Hex .38-16 x 1.25 FTHG5
(Superseded to 05901507)

$2.49

$

In Stock, only 3 left!

0

14

Gravely 00961281

Bolt, M8 x 1.25 x 14 Hex 8.8
(Superseded to 05970001)

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 03821000

Cable, Battery- 42" Positive

$

$

Not available

16

Gravely 07533200

Boot, Eyelet Terminal

$3.49

$

In Stock, only 3 left!

0

17

Gravely 00525800

Battery Terminal Boot, Red

$7.99

$

Usually ships in 4-12 days

0

18

Gravely 06900339

Clamp, Hose 2.75 Diameter Worm (992222, 209)

Note: (992222, 209)

$

$

Not available

18

Gravely 06900426

Clamp, Hose 2.75 Diameter Worm (992220, 210)

Note: (992220, 210)

$

$

Not available

19

Gravely 03820900

Rain Cap, Air Cleaner (992222)

Note: (992222)

$68.99

$

In Stock, only 2 left!

0

19

Gravely 04088900

Rain Cap, Air Cleaner (992220, 221)

Note: (992220, 221)

$59.99

$

Usually ships in 4-12 days

0

20

Gravely 00191627

Gasket, Muffler S/O

$7.99

$

Usually ships in 4-12 days

0
