992220 (Pro-Ride 254) - Gravely Pro-Ride 54" Zero-Turn Mower, 27hp Kawasaki (SN: 000101 & Above) Clutch and Belt Parts Diagram

Pro-Ride 54" Zero-Turn Mower, 27hp Kawasaki

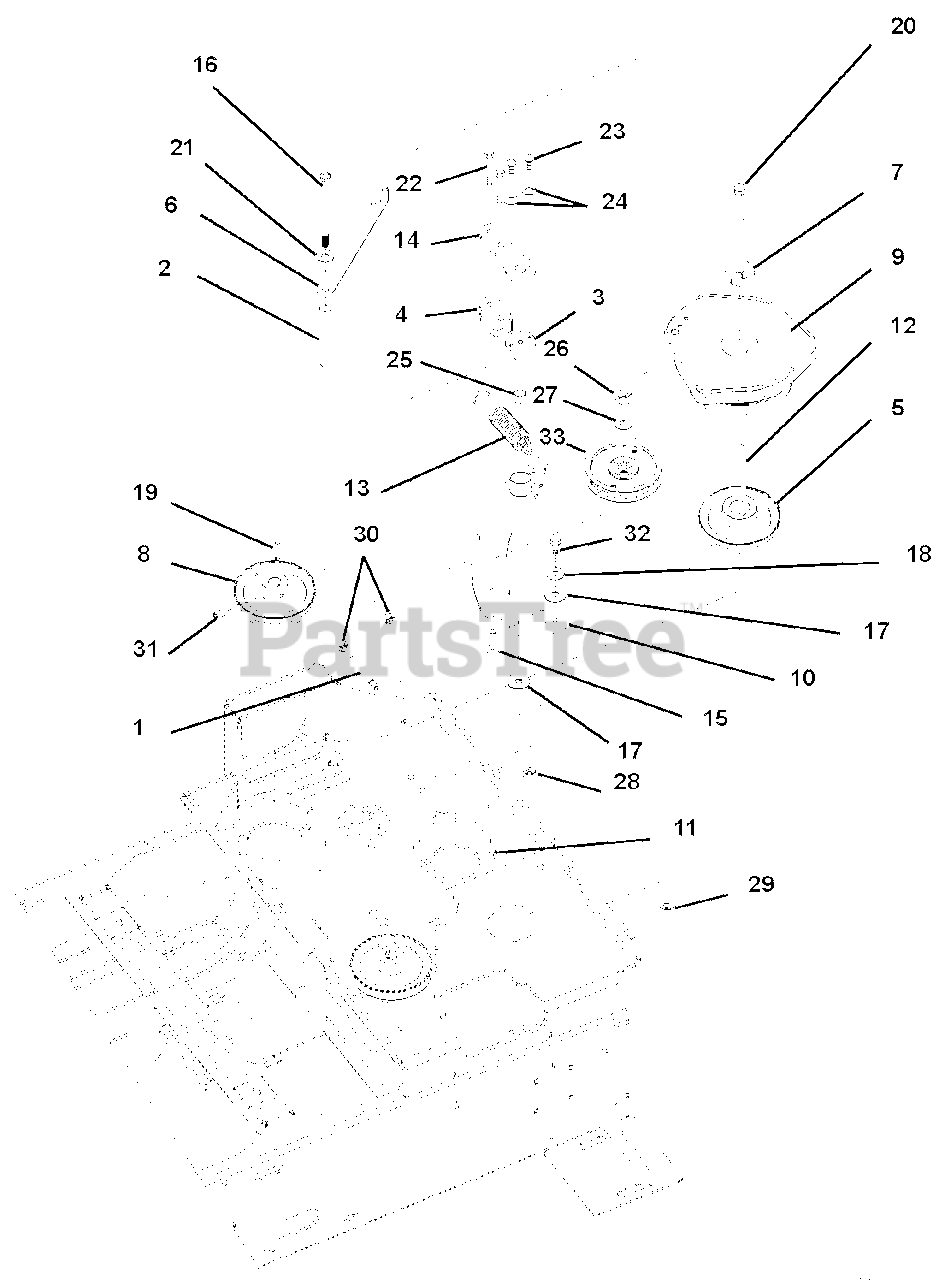

Clutch and Belt Parts Diagram

  • Title

1

Gravely 00104024

Rod, Threaded Adjustment

$24.99

$

Usually ships in 4-12 days

0

2

Gravely 03821751

Tube, RD .625 x .120 x 4.50

$55.99

$

In Stock, only 1 left!

0

3

Gravely 03791600

Pin, Tensioner Pivot

$77.99

$

In Stock, only 1 left!

0

4

Gravely 03791351

Plate, Spacer, Pump Tensioner

$25.99

$

In Stock, only 1 left!

0

5

Gravely 00180641

Pulley, V-Belt 5.00 x 1.13 w/key

$91.99

$

In Stock, only 1 left!

0

6

Gravely 03821651

Plate, Clutch Stop

$45.99

$

In Stock, only 1 left!

0

7

Gravely 03821851

Washer, Clutch Universal

$28.99

$

Usually ships in 4-12 days

0

8

Gravely 00180836

Pulley, Pumps 4.78 PD 17MM

$56.99

$

In Stock, only 1 left!

0

9

Gravely 00180923

Clutch, ELECT - OGURA, GT3.5

$517.99

$

Usually ships in 4-12 days

0

10

Gravely 03791151

Z Pump Belt Idler Arm Weldment

$129.99

$

Usually ships in 4-12 days

0

11

Gravely 00181727

Belt, HA 64.2 EL (Hydraulic Pump)
(Superseded to 04557400)

Note: (Hydraulic Pump)

$52.99

$

In Stock, only 1 left!

0

12

Gravely 00180962

Key, .25 x .25 x 4.62 SQr

$

$

Not available

13

Gravely 00180999

Spring, EXT 1.188 x .162 x 4.25

$34.99

$

Usually ships in 4-12 days

0

14

Gravely 03791251

Plate, Pump Tensioner Top

$25.99

$

In Stock, only 1 left!

0

15

Gravely 05901332

Bolt, .38-16 x 1.50 Flat Socket

$5.99

$

Usually ships in 4-12 days

0

16

Gravely 05982000

Bolt, 3/8-16 x 5.50 HEX 5

$3.99

$

In Stock, only 2 left!

0

17

Gravely 00180961

Washer, .400 x 1.27 x .062 Nylon

$1.99

$

Usually ships in 4-12 days

0

18

Gravely 06400902

Washer, .406 x 1.00 x .060 Flat

$3.99

$

Usually ships in 4-12 days

0

19

Gravely 00966053

Key, M5 x M5 x M36 RE

$3.49

$

Usually ships in 4-12 days

0

20

Gravely 05900040

Bolt, 7/16-20 x 2.25 HEX 5 EP80

$6.99

$

Usually ships in 4-12 days

0

21

Gravely 06308800

Washer, Locking .38 x .094 Regular
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 00960050

Bolt, .38-16 x 2.00 Hex 5
(Superseded to 05963300)

$2.99

$

In Stock, Qty 6

0

23

Gravely 05947900

Bolt, 1/4-20 x .500 Hex 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06308400

Washer, Locking .25 x .062 Regular
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 00105546

Bearing, Sleeve .753 x .878 x .750

$6.99

$

In Stock, only 4 left!

0

26

Gravely 06534900

Nut, Spin Lock, Flange .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 00164038

Washer, .390 x .750 x .080 Flat

$3.49

$

Usually ships in 4-12 days

0

28

Gravely 06508000

Nut, Locking, Flange .375-16

$3.99

$

Usually ships in 4-12 days

0

29

Gravely 06530400

Nut, Spin Lock, Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 06529400

Nut, .38-16 Standard Hex
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 00967343

Set Screw, 5/16-18 x .625 Square Cup

$1.49

$

In Stock, only 1 left!

0

32

Gravely 05901331

Bolt, .38 x .500 x 5/16-18
(Superseded to 07070114)

$5.99

$

Usually ships in 4-12 days

0

33

Gravely 07336200

Pulley, Flat, 4.50 x .669 w/Brg

$45.99

$

Usually ships in 4-12 days
