992219 (PM 260H RD) - Gravely Pro-Master 60" Zero-Turn Mower, Kawasaki FX (SN: 050000 & Above) Seat And Hood Frame Parts Diagram

Pro-Master 60" Zero-Turn Mower, Kawasaki FX

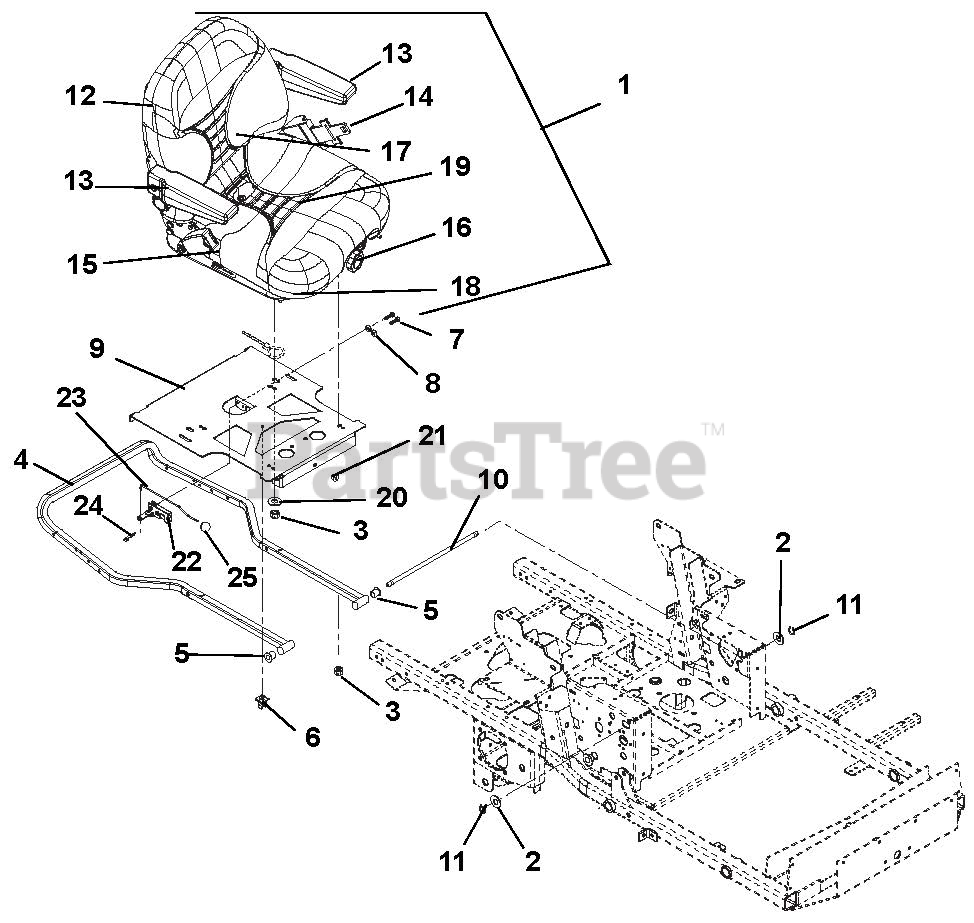

Seat And Hood Frame Parts Diagram

  • Title
1

Gravely 04876000

Seat, Full Suspension
(Superseded to 09680600)

$930.99

$

In Stock, only 1 left!

0

2

Gravely 06441900

Washer, Flat Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 09293353

Weldment, Hood Frame

$271.99

$

Usually ships in 4-12 days

0

5

Gravely 05521100

Bushing, Flange .515 x .750 x .745 x 1.00

$2.49

$

In Stock, only 3 left!

0

6

Gravely 00367900

Clip, Routing

$1.49

$

In Stock, only 1 left!

0

7

Gravely 05947700

Bolt, Hex .25-20 x 1.00 Grade 5
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

8

Gravely 06308400

Washer, Locking .25 x .062 Regular
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 04044851

Plate, Seat 200 XDZ with Latch

$101.99

$

Usually ships in 4-12 days

0

10

Gravely 09245400

Rod, Seat Frame Pivot

$129.99

$

Usually ships in 4-12 days

0

11

Gravely 05717100

Ring, Retaining External .500 x .050

$2.49

$

In Stock, Qty 8

0

12

Gravely 59208800

Kit, Back Cushion, Gray

$423.99

$

Usually ships in 4-12 days

0

13

Gravely 79211800

Kit, Armrest, Plush 5300 Pair

$

$

Not available

14

Gravely 59211400

Kit, Retractable Safety Belt

$146.99

$

Usually ships in 4-12 days

0

15

52908900

Kit, Seat Cushion, Light Gray

$

$

Not available

16

Gravely 59208000

Kit, Seat Knobs

$

$

Not available

17

Gravely 59208100

Kit, Seat Back

$175.99

$

Usually ships in 4-12 days

0

18

Gravely 59207900

Kit, Seat Slides

$

$

Not available

19

Gravely 59207800

Kit, Seat, Spring and Saddle

$175.99

$

Usually ships in 4-12 days

0

20

Gravely 06446300

Washer, Flat Steel .344 x 1.25 x .135
(Superseded to 06401104)

$3.99

$

In Stock, only 2 left!

0

21

Gravely 05500020

Bushing, POLYLINER-.38 SNAPIN

$2.99

$

In Stock, Qty 20+

0

22

Gravely 04054600

Latch, Rotary-Push To Close – 5.570

$22.99

$

Usually ships in 4-12 days

0

23

Gravely 04058100

Rod, Seat Latch Release

$

$

Not available

24

Gravely 06703300

Pin, Hair Internal .06 x .25 x 1.12
(Superseded to 06701900)

$0.99

$

In Stock, Qty 12

0

$21.99

$

Usually ships in 4-12 days

0
