992219 (PM 260H RD) - Gravely Pro-Master 60" Zero-Turn Mower, Kawasaki FX (SN: 041000 - 049999) Fuel Tanks And Hoses Parts Diagram

Pro-Master 60" Zero-Turn Mower, Kawasaki FX

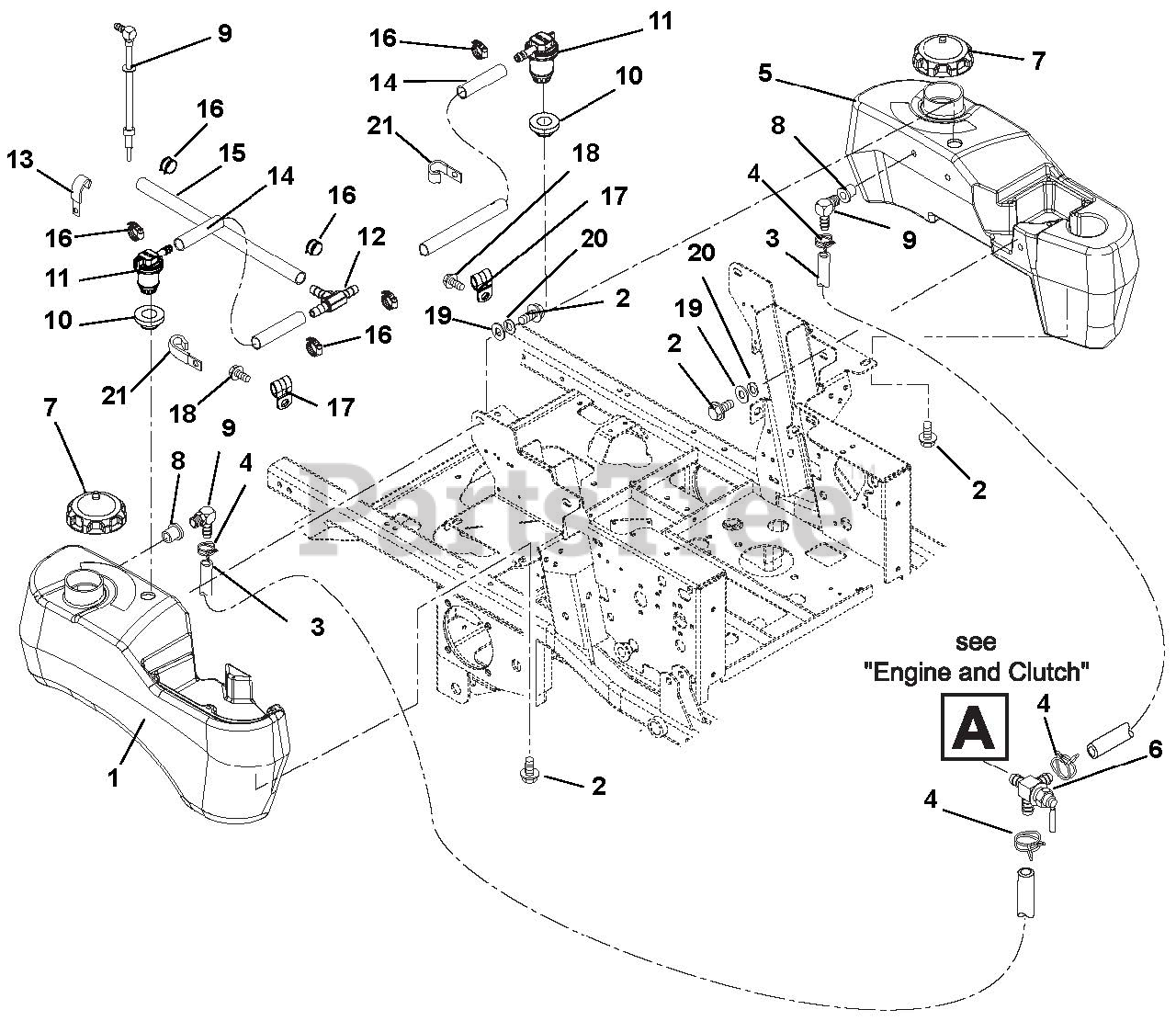

Fuel Tanks And Hoses Parts Diagram

  • Title

1

Gravely 04340800

Tank, Fuel Right Hand
(Superseded to 04341200)

$

$

Not available

2

Gravely 05947000

Bolt-Hex .31-18X.75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 03278100

Hose, .25 Low-PERM Bulk Gas, 3 @ 42"

$1.49

$

In Stock, Qty 20+

0

4

Gravely 03278800

Clamp, Fuel Line

$1.49

$

In Stock, Qty 20+

0

5

Gravely 04340900

Tank, Fuel Left Hand
(Superseded to 04341300)

$230.99

$

Usually ships in 4-12 days

0

6

Gravely 09258200

Valve, Fuel

$47.99

$

In Stock, Qty 20+

0

7

Gravely 04558000

Cap, Fuel Vent-in Autolock
(Superseded to 09190300)

$33.99

$

In Stock, Qty 20+

0

8

Gravely 00387300

Grommet

$9.49

$

In Stock, Qty 20+

0

9

Gravely 04320800

Assembly, Large Tank Fuel Pick-up

$34.99

$

In Stock, only 2 left!

0

10

Gravely 04082700

Grommet, Remote Vent Nitrile

$3.49

$

In Stock, Qty 9

0

11

Gravely 04815400

Valve, 2-Way

$19.99

$

In Stock, Qty 8

0

12

Gravely 04548204

Tee, 3/16" x 3/16" Branch

$6.49

$

Usually ships in 4-12 days

0

13

Gravely 06909400

J-Clamp

$3.49

$

In Stock, Qty 8

0

14

Gravely 03375900

Hose, .188 Low-PERM Bulk Gas

$0.99

$

Usually ships in 4-12 days

0

15

Gravely 03375900

Hose, .188 Low-PERM Bulk Gas

$0.99

$

Usually ships in 4-12 days

0

16

Gravely 04097700

Clamp, Hose Spring .188

$

$

Not available

17

Gravely 06908200

Clamp, Cushioned Steel

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 07411500

Screw, Tapping Hex Washer Head Thread Rolling .31-18 x .50
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06435700

Washer-Flat-Steel .38X.875X.083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06308600

Washer-Locking .31X.078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06916000

J-Clamp

$2.49

$

Usually ships in 4-12 days

0
