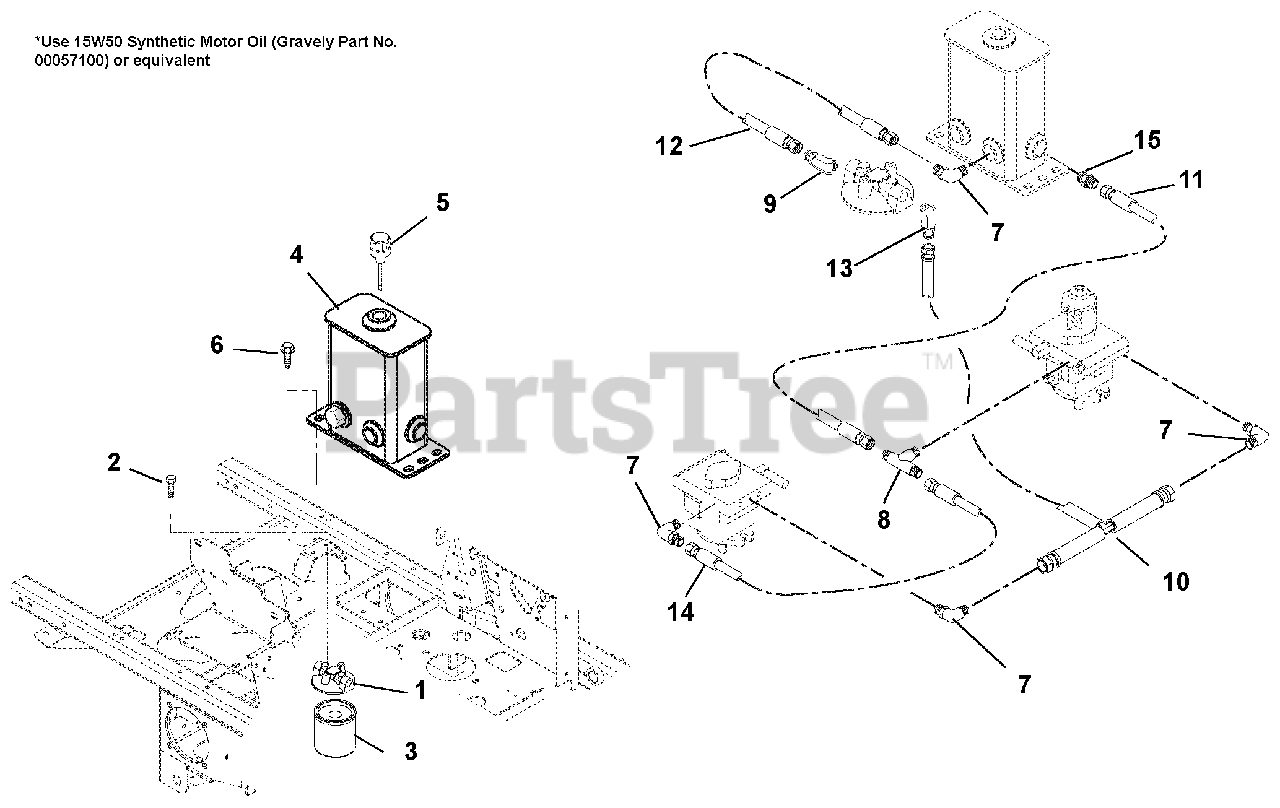

992219 (PM 260H RD) - Gravely Pro-Master 60" Zero-Turn Mower, Kawasaki FX (SN: 030000 - 040999) Hydraulic Tank, Filter, Pumps, And Hoses Parts Diagram

Pro-Master 60" Zero-Turn Mower, Kawasaki FX

Hydraulic Tank, Filter, Pumps, And Hoses Parts Diagram

  • Title

1

Gravely 00672000

Head, Filter

$22.99

$

Usually ships in 4-12 days

0

2

Gravely 05900008

Bolt, Hex .25-20 x .50 Epoxy Grade 5
(Superseded to 05901918)

$1.49

$

In Stock, only 1 left!

0

3

Gravely 03931900

Oil Filter with Bypass

$26.99

$

In Stock, Qty 20+

0

4

Gravely 02985251

Weldment, Formed Hydraulic Tank – 2 Port

$196.99

$

Usually ships in 4-12 days

0

5

Gravely 00463000

Dipstick, Breather

$

$

Not available

6

Gravely 07415400

Screw, Tapping Hex Washer Head .38-16 x .75
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07069600

Fitting, Hydraulic, 90 Degree Elbow, Steel M8F – M80

$34.99

$

Usually ships in 4-12 days

0

8

Gravely 07069500

Fitting, Hydraulic Tee M80 – M80 – M80

$60.99

$

Usually ships in 4-12 days

0

9

Gravely 07059900

Fitting, Hydraulic Straight M80 – M80

$9.49

$

In Stock, only 4 left!

0

10

Gravely 00364800

Hose, Tee Assembly, .50

$153.99

$

Usually ships in 4-12 days

0

11

Gravely 00391000

Hose, Hydraulic .50-19 – 0K FO8J0 – FO8J0

$66.99

$

Usually ships in 4-12 days

0

12

Gravely 00589900

Hose, Hydraulic Molded

$

$

Not available

13

Gravely 07066200

Fitting, Hydraulic 45° M80 – M80

$59.99

$

Usually ships in 4-12 days

0

14

Gravely 00364700

Hose, Hydraulic

$

$

Not available

15

Gravely 07059900

Adapter, Face Seal 8 x 8 .50 O-Ring 8 F5OLO – Steel

$9.49

$

In Stock, only 4 left!

0
