992219 (PM 260H RD) - Gravely Pro-Master 60" Zero-Turn Mower, Kawasaki FX (SN: 020000 - 029999) Deck Lift Parts Diagram

Pro-Master 60" Zero-Turn Mower, Kawasaki FX

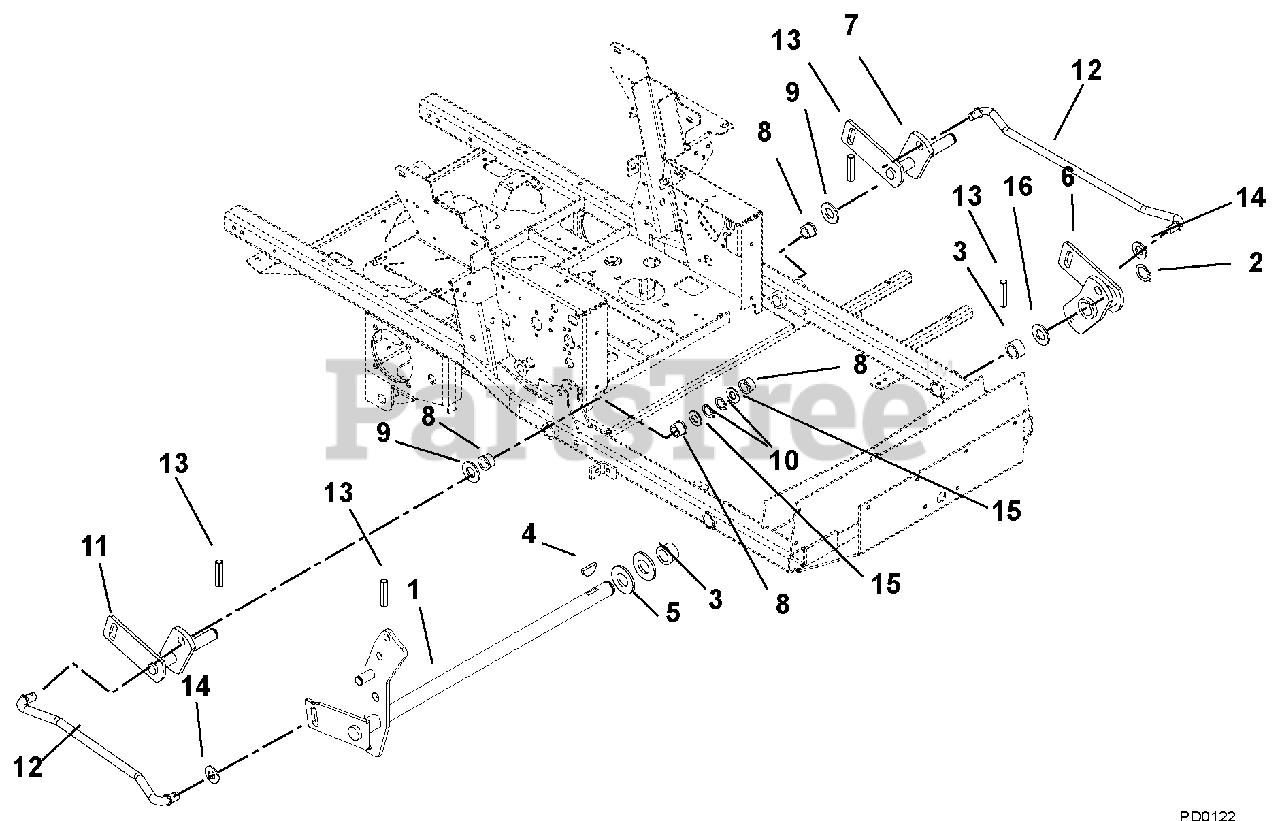

Deck Lift Parts Diagram

  • Title

1

Gravely 00456000

Lift, Hydraulic Mower

$262.99

$

In Stock, only 1 left!

0

2

Gravely 05707300

Ring, Retaining External 1.00 x .078

$2.99

$

In Stock, Qty 9

0

3

Gravely 05500034

Bushing, 1.00 x 1.12 x .75 x 1.375

$6.99

$

In Stock, only 3 left!

0

4

Gravely 06608900

Key, Woodruff .25 x 1.00

$3.99

$

In Stock, Qty 18

0

5

Gravely 06443000

Washer, Flat Steel 1.062 x 2.00 x .134
(Superseded to 06401203)

$3.99

$

In Stock, only 3 left!

0

6

Gravely 00441000

Weldment, Lift Arm Front

$99.99

$

Usually ships in 4-12 days

0

7

Gravely 00481600

Weldment, Rear Lift Arm Left Hand

$66.99

$

Usually ships in 4-12 days

0

8

Gravely 05518400

Bushing, Flange Nylon .762 x 1.00 x .58 x 1.48

$4.99

$

In Stock, Qty 20+

0

9

Gravely 06413400

Washer, Hardened Steel .758 x 1.23 x .031

$3.49

$

In Stock, only 2 left!

0

10

Gravely 05714600

Ring, Retaining External .689 x .077

$2.49

$

In Stock, Qty 5

0

11

Gravely 00481500

Weldment, Right Hand Rear Lift Arm

$83.99

$

Usually ships in 4-12 days

0

12

Gravely 04063100

Rod, Lift Assist

$68.99

$

In Stock, only 2 left!

0

13

Gravely 05800001

Pin, Roll .250 x 1.25 Stainless Steel

$2.99

$

Usually ships in 4-12 days

0

14

Gravely 06445100

Washer, Flat Steel .630 x 1.25 x .062

$2.49

$

In Stock, only 3 left!

0

15

Gravely 06439000

Washer, Flat Steel .812 x 1.50 x .135
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06435300

Washer, Hardened Thrust 1.00 x 1.55 x .03

$4.99

$

Usually ships in 4-12 days

0
