992219 (PM 260H RD) - Gravely Pro-Master 60" Zero-Turn Mower, Kawasaki FX (SN: 020000 - 029999) Control Panel Parts Diagram

Pro-Master 60" Zero-Turn Mower, Kawasaki FX

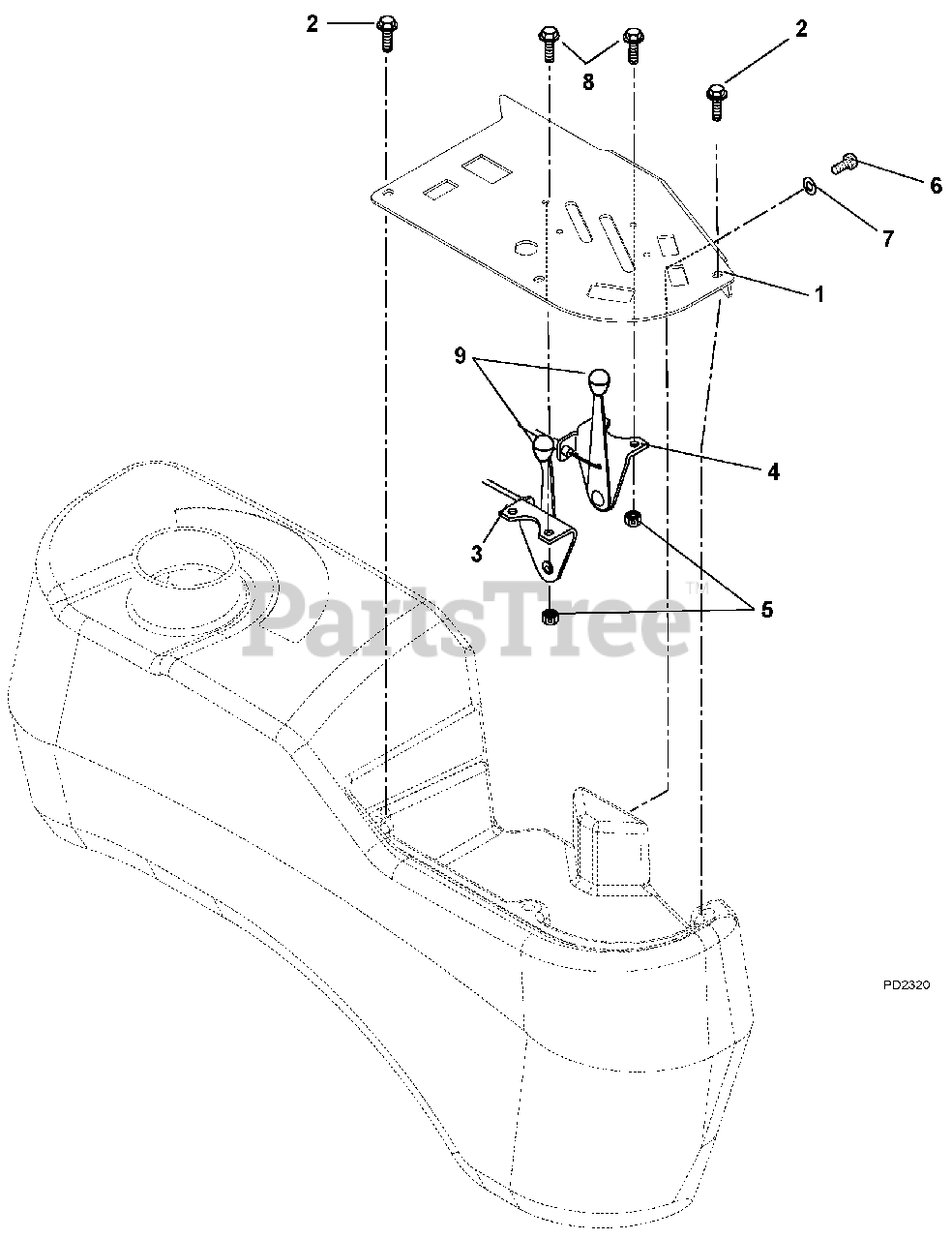

Control Panel Parts Diagram

  • Title
1

Gravely 03961651

Panel, Control

$51.99

$

Usually ships in 4-12 days

0

2

Gravely 06100211

Screw, Machine Hex Washer Head 10-24 x .38 Stainless

$2.99

$

In Stock, Qty 11

0

3

Gravely 06900411

Throttle, Control

$51.99

$

In Stock, only 2 left!

0

4

Gravely 06900412

Choke Control

$62.99

$

In Stock, only 1 left!

0

5

Gravely 06536000

Nut, Locking Nyloc 10-24 With Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06116700

Screw, Machine Hex Washer Head 10-24 x .50
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 07500132

Knob, Control Black .38-16 x .62

$11.99

$

In Stock, Qty 8

0
