992219 (PM 260H RD) - Gravely Pro-Master 60" Zero-Turn Mower, Kawasaki FX (SN: 000101 - 019999) Steering Levers And Linkages Parts Diagram

Pro-Master 60" Zero-Turn Mower, Kawasaki FX

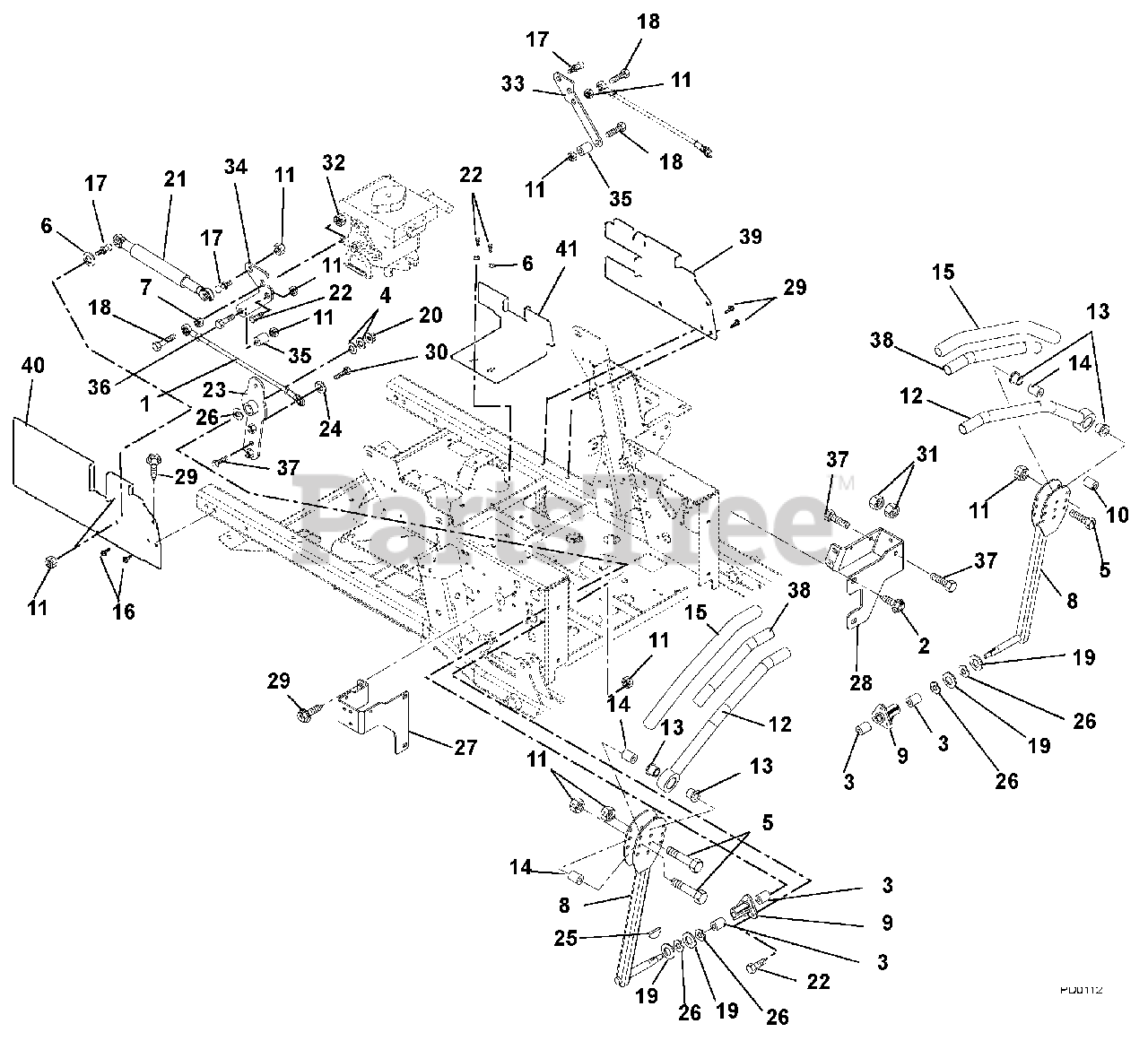

Steering Levers And Linkages Parts Diagram

  • Title
1

Gravely 00395900

Assembly, Steering Rod .38 Rod x 7.60

$

$

Not available

2

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 05436800

Bushing .625 x .75 x .50

$9.99

$

In Stock, only 4 left!

0

4

Gravely 06436200

Washer, Flat Steel .403 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 05957400

Bolt, Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

6

Gravely 06437200

Washer, Flat Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06529400

Nut, Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 09288651

Control Arm

$187.99

$

Usually ships in 4-12 days

0

9

Gravely 09294600

Bushing, Flange

$34.99

$

In Stock, only 1 left!

0

10

Gravely 05500932

Bushing, Eccentric .31 x .75 .97

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 09235500

Handle Weldment, Left Hand

$90.99

$

In Stock, only 1 left!

0

Gravely 09235600

Handle Weldment, Right Hand

$93.99

$

In Stock, only 1 left!

0

13

Gravely 05525200

Bushing, Flange Nylon .762 x 1.48 x .44
(Superseded to 05501517)

$

$

Not available

14

$

$

Not available

15

Gravely 03929100

Grip, Handlebar

$14.99

$

In Stock, only 1 left!

0

16

Gravely 07411500

Screw, Tapping .31-18 x .50 Hex Washer Head
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 03652200

Stud, Ball

$3.49

$

In Stock, only 3 left!

0

18

Gravely 05957900

Bolt, Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

19

Gravely 06436100

Washer, Flat Steel .63 x 1.005 x .062
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 03943800

Damper, Control

$40.99

$

In Stock, only 2 left!

0

22

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 04156300

Weldment, Pivot Arm

$146.99

$

Usually ships in 4-12 days

0

24

Gravely 06308800

Washer, Locking .38 x .094 Regular
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06608400

Key, Woodruff .13 x .63

$2.99

$

In Stock, only 3 left!

0

26

Gravely 03704900

Washer, Wave

$2.49

$

In Stock, only 4 left!

0

27

Gravely 09289153

Stop, Steering Right Hand

$72.99

$

Usually ships in 4-12 days

0

28

Gravely 09289253

Stop, Steering Left Hand

$

$

Not available

29

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 05958000

Bolt, Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 06535900

Nut, Hex Jam .375-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 06529600

Nut, Locking Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 00178351

Bracket, Left Hand

$19.99

$

Usually ships in 4-12 days

0

34

Gravely 00178251

Bracket, Right Hand

$21.99

$

Usually ships in 4-12 days

0

35

Gravely 03101900

Spacer .318 x .43 x .375

$

$

Not available

36

Gravely 05947500

Bolt, Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

37

Gravely 05974000

Bolt, Hex .375-16 x 1.75 Full Thread
(Superseded to 05901612)

$2.99

$

In Stock, only 1 left!

0

38

Gravely 03988300

Tube, .88ID x 1.00OD x 10.75

$14.99

$

In Stock, only 2 left!

0

39

Gravely 04432653

Bracket, Dampener Debris Shield Left Hand

$64.99

$

Usually ships in 4-12 days

0

40

Gravely 04432753

Bracket, Dampener Debris Shield Right Hand

$64.99

$

Usually ships in 4-12 days

0

41

Gravely 04432853

Shield, Debris Lower

$52.99

$

Usually ships in 4-12 days

0
