992218 (PM 260H XDZ) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu (SN: 020000 & Above) Spindles And Mower Blades Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu

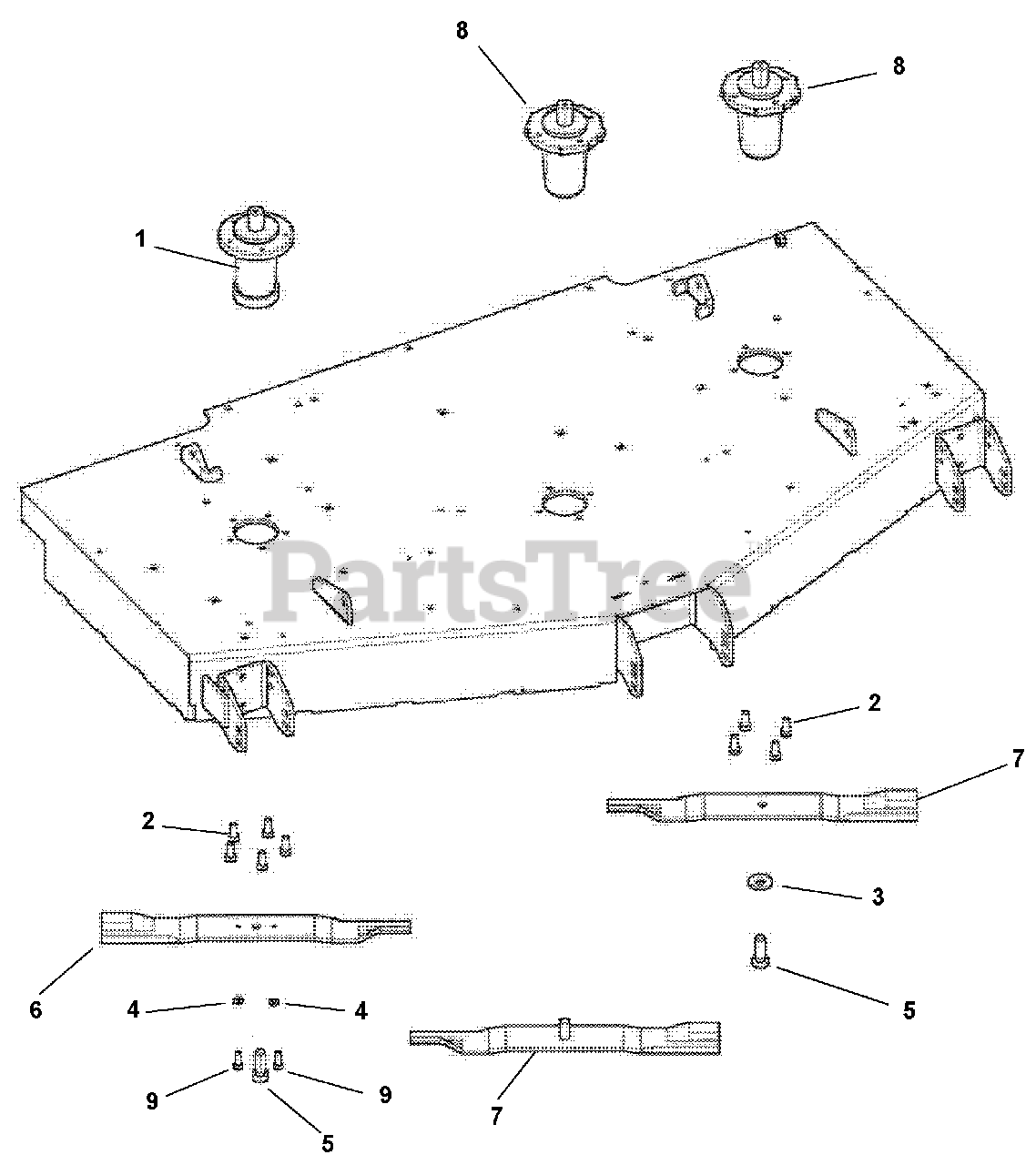

Spindles And Mower Blades Parts Diagram

  • Title
1

Gravely 59215600

Spindle Assembly
(Superseded to 59225900)

$323.99

$

Usually ships in 4-12 days

0

2

Gravely 05900013

Bolt, Hex .375-16 x 1
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 06445700

Washer, Belleville .63 x 1.625 x .14

$4.99

$

In Stock, Qty 9

0

4

Gravely 06308600

Lock Washer, Spring Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 05978900

Bolt, Hex .62-18 x 1.75
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

6

Gravely 04169200

Blade, 20.83" Mower (Counterclockwise Rotation)

Note: (Counterclockwise Rotation)

$30.99

$

In Stock, Qty 7

0

7

Gravely 04147700

Blade, 20.83"

$31.99

$

In Stock, only 3 left!

0

8

Gravely 59215400

Housing, Spindle (G5000)
(Superseded to 59225700)

Note: (G5000)

$239.99

$

In Stock, Qty 20+

0

9

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0
