992218 (PM 260H XDZ) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu (SN: 020000 & Above) Mounting Arms, Link Chains And Deck Bumpers Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu

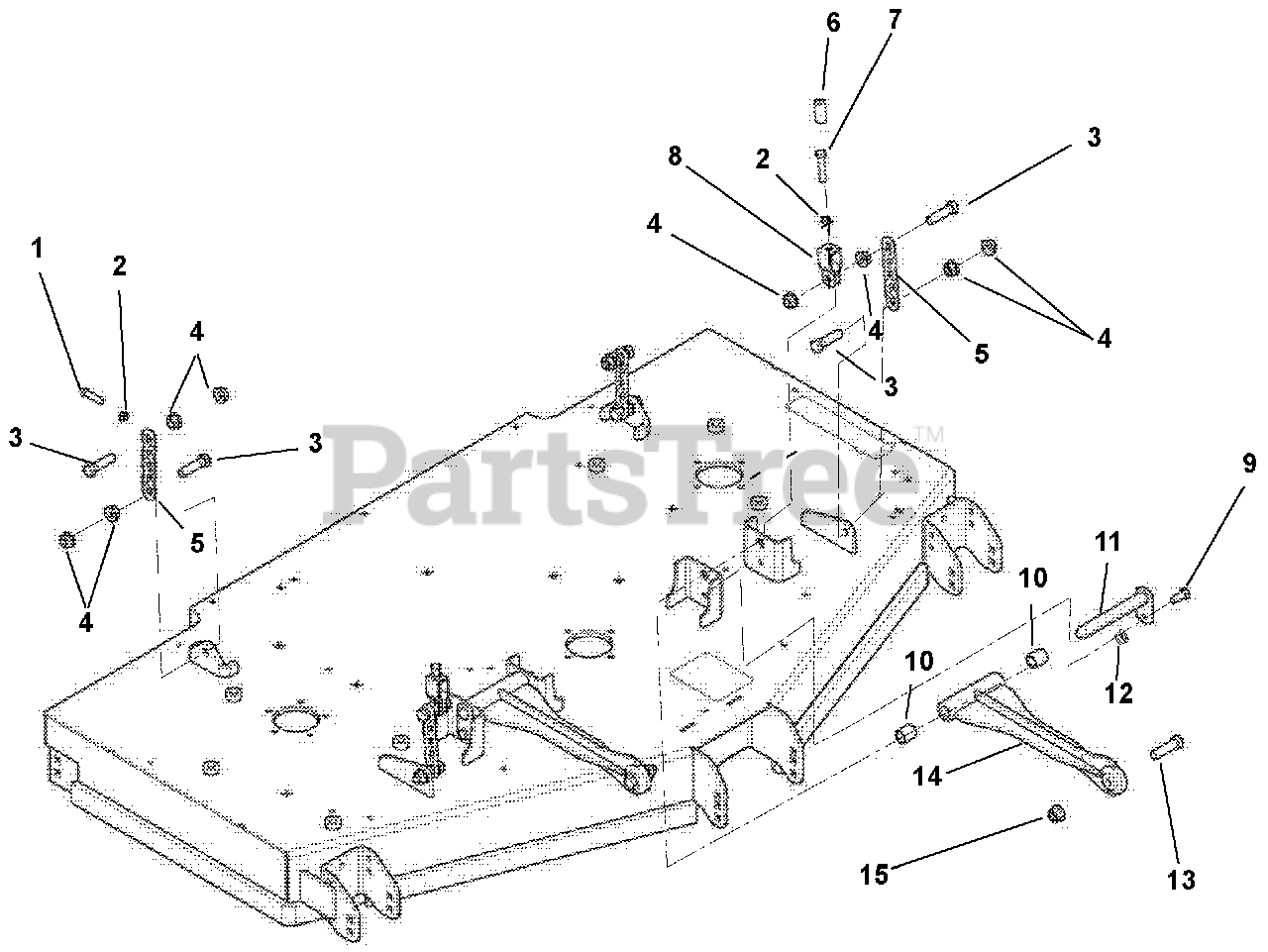

Mounting Arms, Link Chains And Deck Bumpers Parts Diagram

  • Title

1

Gravely 05900035

Bolt, Hex .312-18 x 1.50

$

$

Not available

2

Gravely 06536100

Jam Nut, .312-18
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 05900022

Bolt, Hex M12-1.75 x 50

$3.99

$

In Stock, only 1 left!

0

4

Gravely 06500003

Nut, Spin Lock Flange M12-1.75

$2.49

$

In Stock, only 1 left!

0

5

Gravely 09284700

Chain, Link

$6.49

$

Usually ships in 4-12 days

0

6

Gravely 07539500

Cap, Vinyl .50 ID x 1.50 LG x .055

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 05980900

Bolt, Hex .312-18 x 2.00
(Superseded to 05902003)

$2.99

$

In Stock, only 2 left!

0

8

Gravely 00442800

Bracket, Deck Leveling

$9.49

$

In Stock, only 2 left!

0

9

Gravely 05948700

Bolt, Hex .38-16 x 1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05435900

Bearing, .75 x .875 x 1.00

$5.99

$

In Stock, only 2 left!

0

11

Gravely 09238900

Pin, Weldment Mower Mounting

$61.99

$

Usually ships in 4-12 days

0

12

Gravely 06545500

Nut, Nyloc Flanged .375-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 05959700

Bolt, Hex .50-13 x 2.00
(Superseded to 05901929)

$

$

Not available

14

Gravely 04303651

Weldment Deck Stablizing Arm

$99.99

$

Usually ships in 4-12 days

0

15

Gravely 06500010

Nut, Nyloc Flanged .50-13
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0
